UNIMIG Viper 165 Aluminium MIG Welding Combo - U11006K

10 Amp Plug

WAS $1,239.00
NOW $1,177.05
Sale Ends in
23:59 pm, 30 June 2024

AfterPay More info.

Make 4 payments of $294.26 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $0.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

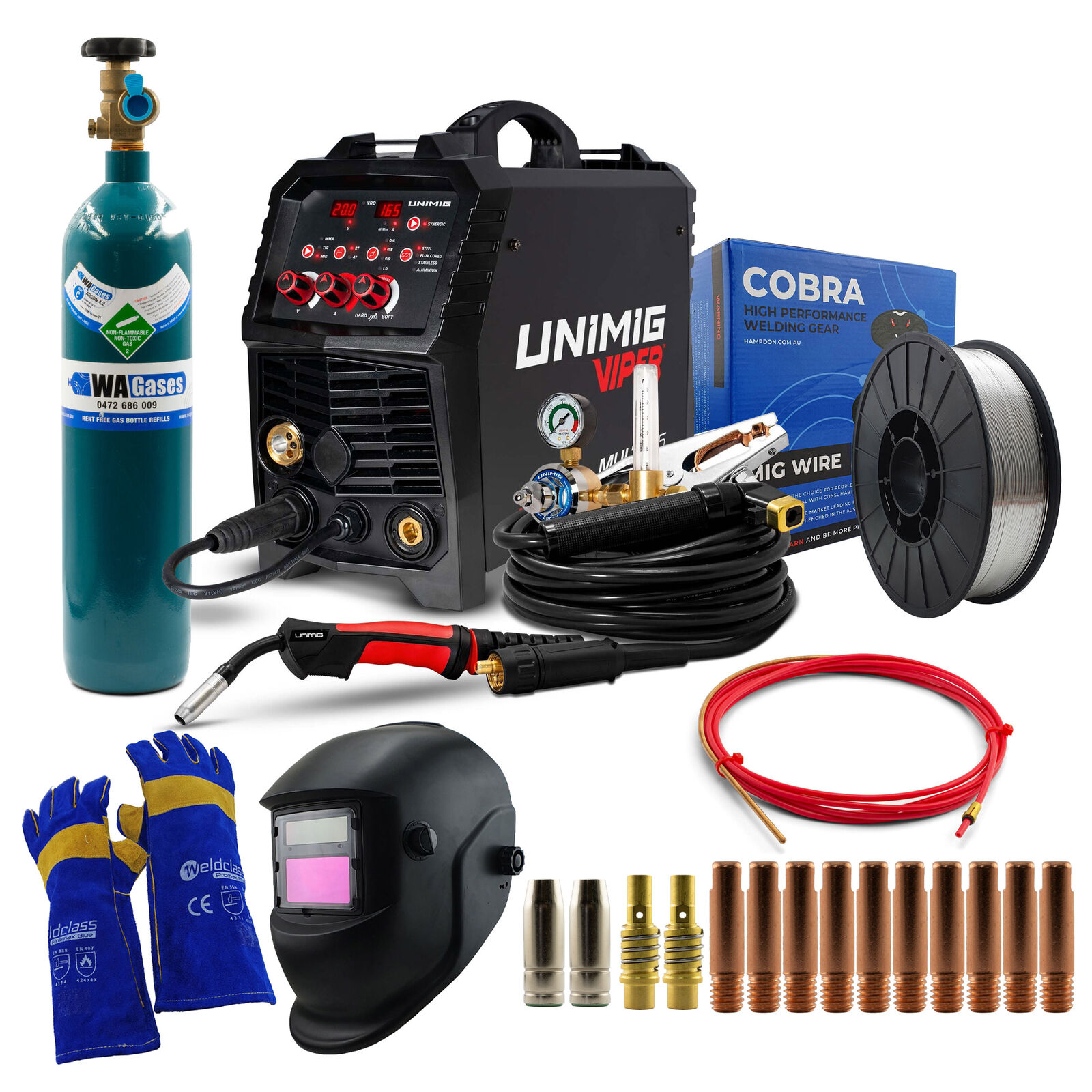

The Value Pack comes with a Bonus:

  • UWELD Auto-Darkening Welding Helmet
  • Heavy-Duty MIG Welding Gloves
  • C Size Gas Cylinder

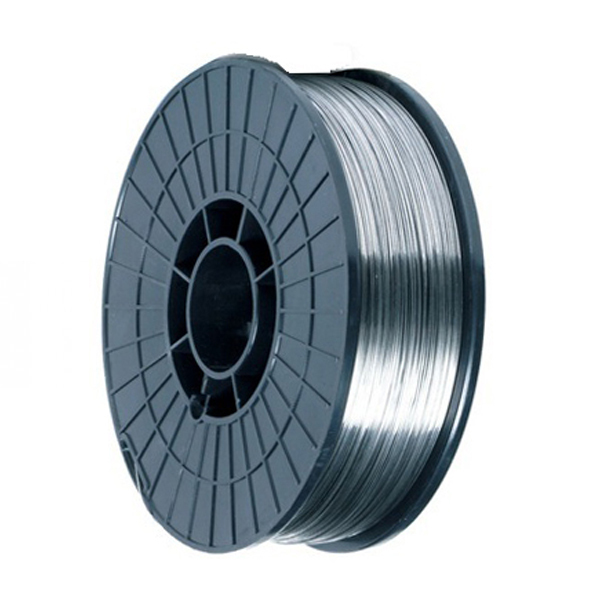

  • 2kg 5356 1.0mm Aluminium Welding Wire

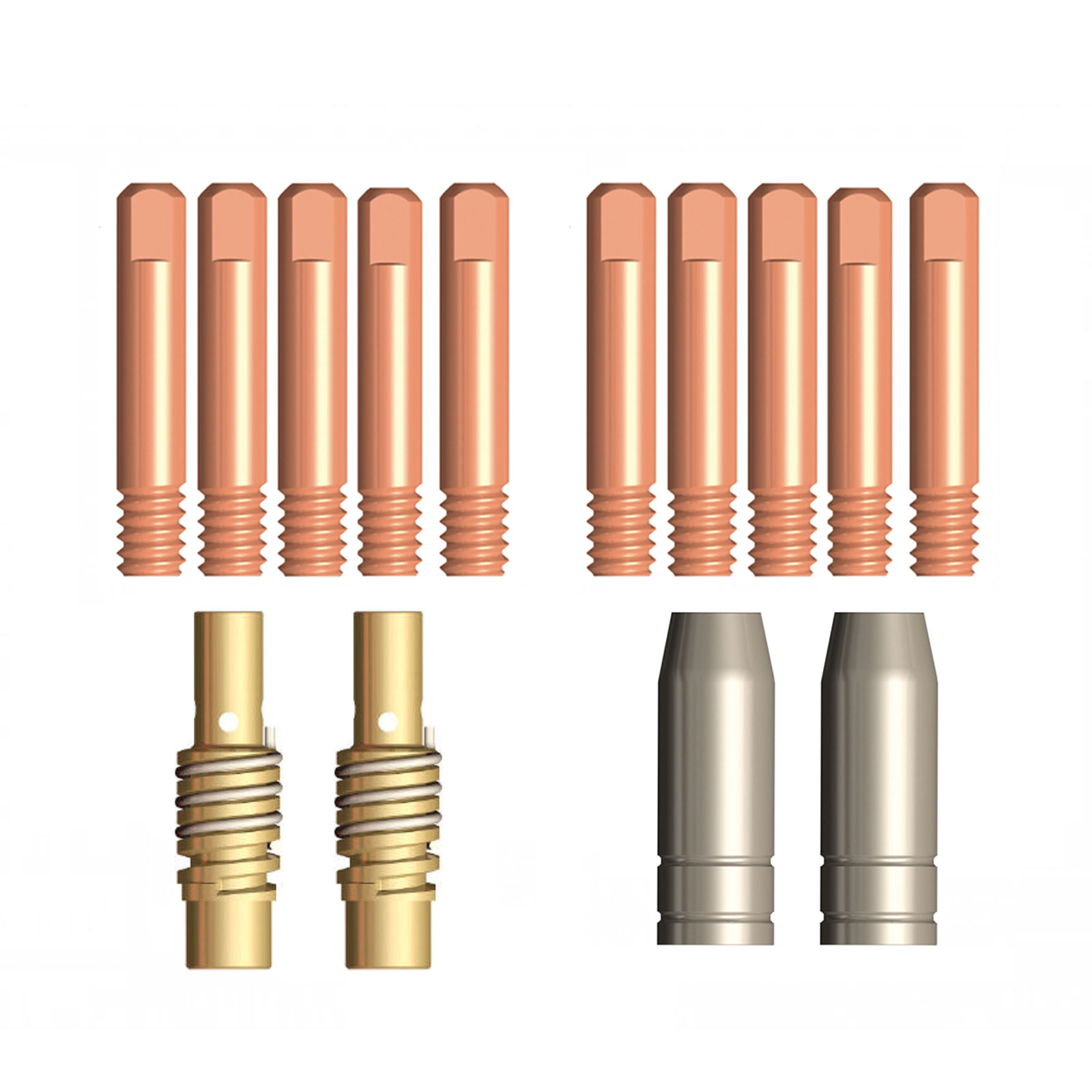

  • Consumable Kit
  • Teflon Liner
  • Plus the VIPER 165 MIG Welder- U11006K

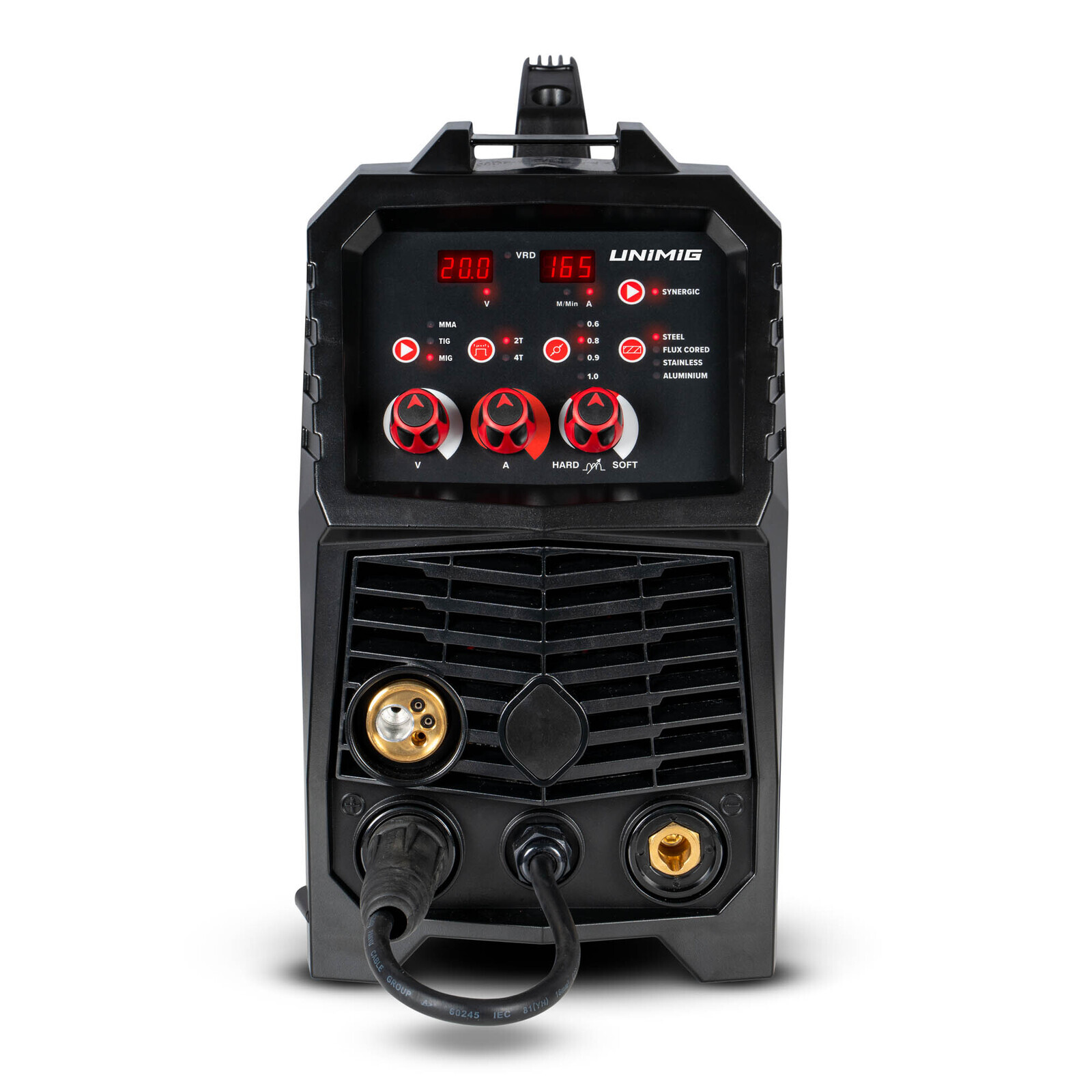

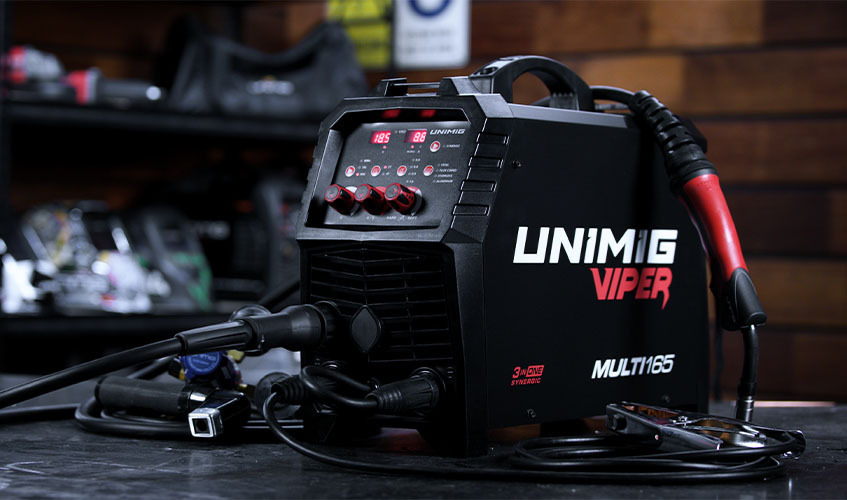

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

PACKAGE CONTENTS

  • VIPER MULTI 165 MIG/TIG/STICK Welder
  • 3m SB15 MIG Torch
  • 3m Twist Lock Electrode Holder
  • 300 Amp Earth Clamp & Lead
  • Argon Flowmeter
  • 2m Gas Hose Complete with fittings
  • Operating Manual
  •
  • MACHINE SPECIFICATIONS
  • PRIMARY INPUT VOLTAGE - 240V Single Phase
  • SUPPLY PLUG - 10 AMP
  • Ieff (A) - 10.0
  • RATED OUTPUT - 30A/15.5V - 165A/22.3V
  • NO LOAD VOLTAGE (V) - 64
  • PROTECTION CLASS - IP21S
  • INSULATION CLASS - H
  • MINIMUM GENERATOR (kVA) - 9.0
  • DINSE CONNECTOR - 35/50
  • STANDARD - AS/NZ60974-1
  • SUITABLE MATERIAL - Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
  • WARRANTY (Years) - 2
  • MIG SPECIFICATIONS

  • MIG WELDING CURRENT RANGE - 30-165A
  • MIG DUTY CYCLE @ 40°C - 10% @ 165A / 60% @ 68A / 100% @ 52A
  • MIG WIRE SIZE RANGE - 0.6-1.0mm
  • MIG WIRE SPOOL SIZE - 1kg / 5kg
  • MIG WELDING THICKNESS RANGE - 1-8mm
  • DRIVE ROLLER SIZE - 30/10
  • TIG SPECIFICATIONS

  • TIG FUNCTION TYPE - DC Lift Arc
  • TIG WELDING CURRENT RANGE - 20-160A
  • TIG DUTY CYCLE @ 40°C - 10% @ 160A / 60% @ 65A / 100% @ 50A
  • TIG WELDING THICKNESS RANGE - 1-6mm
  • STICK SPECIFICATIONS

  • STICK WELDING CURRENT RANGE - 20-140A
  • STICK DUTY CYCLE @ 40°C - 10% @ 140A / 60% @ 58A / 100% @ 45A
  • STICK ELECTRODE RANGE - 2.5-3.2mm
  • STICK WELDING THICKNESS RANGE - 2-8mm
  • SIZE & WEIGHT

  • DIMENSIONS (mm) - 513x206x391mm
  • WEIGHT (kg) - 9.8kg
  • MACHINE FEATURES

  • WIRE DRIVE - Standard
  • VRD - Yes
  • WIRE INCH - Yes
  • INDUCTANCE CONTROL - Yes
  • THERMAL OVERLOAD PROTECTION - Yes

(U11006K-Ali)

SKU U11006K-Ali
Barcode # 9339793010899
Brand UNIMIG
Shipping Weight 20.5000kg
Shipping Width 0.330m
Shipping Height 0.350m
Shipping Length 0.750m
Unit Of Measure ea
Be The First To Review This Product!

Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

  • UWELD Auto-Darkening Welding Helmet
  • Heavy-Duty MIG Welding Gloves
  • C Size Gas Cylinder
  • 2kg 5356 1.0mm Aluminium Welding Wire
  • Consumable Kit
  • Teflon Liner
  • Plus the VIPER 165
