15kg - 1.2mm Welding Alloys LP-G Hardfacing Flux Core Mig Wire for positional welding

For use with Mixed Gas

$470.00

AfterPay More info.

Make 4 payments of $117.50 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $20.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Welding Alloys HARDFACE LP-G is an All-Positional cored wire used for hardfacing components subject to metal -metal wear or high abrasion in ground engaging applications.

By introducing Flux to the cored wire the weld deposit can be applied vertically alowing hardfacing to be applied in suitable applications.

The weld deposit is a medium alloy, Martensitic steel with good impact resistance and high hardness. . It is an economical wire with good abrasion resistance.
The weld deposit is just machinable with special tools.



Applications

  • Resistance to abrasion and impact in dry or wet environments.
  • Agricultural & earthmoving equipment, compactor wheels, shredders for wood or rubbish, recycling machinery.
  • Bucket teeth, lips and undersides, cutting edges, steel mill rolls, cable drums, sand dredge equipment, dragline buckets, conveyor chutes, grizzly bars
  • Ideal for site welding of wear liners to provide protection to corner joints and exposed weld seams.

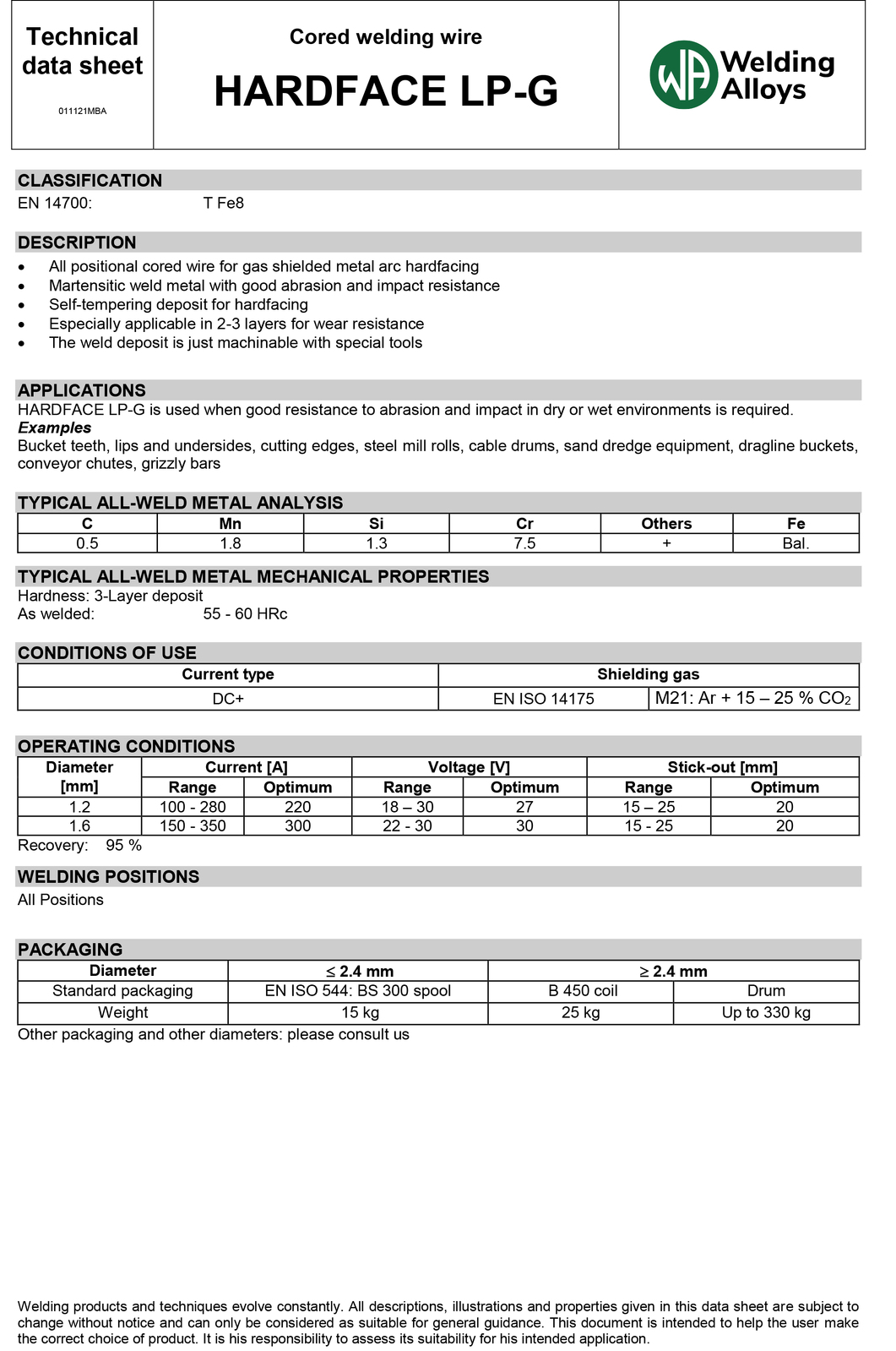

Download Product Specifications - Download link

Classifications

  • AS/NZS 2576-2005 1855-B5
  • DIN 8555 G 1-300-P
  • EN 14700    TFe8
  • Equivalent to Stoody 965-G

Typical Hardness

  • 55-60 HRC - Rockwell (3 layers as welded)
  • 520-578 HB - Brinell
  • 640-770 HV - Vickers

Packaging Specifications

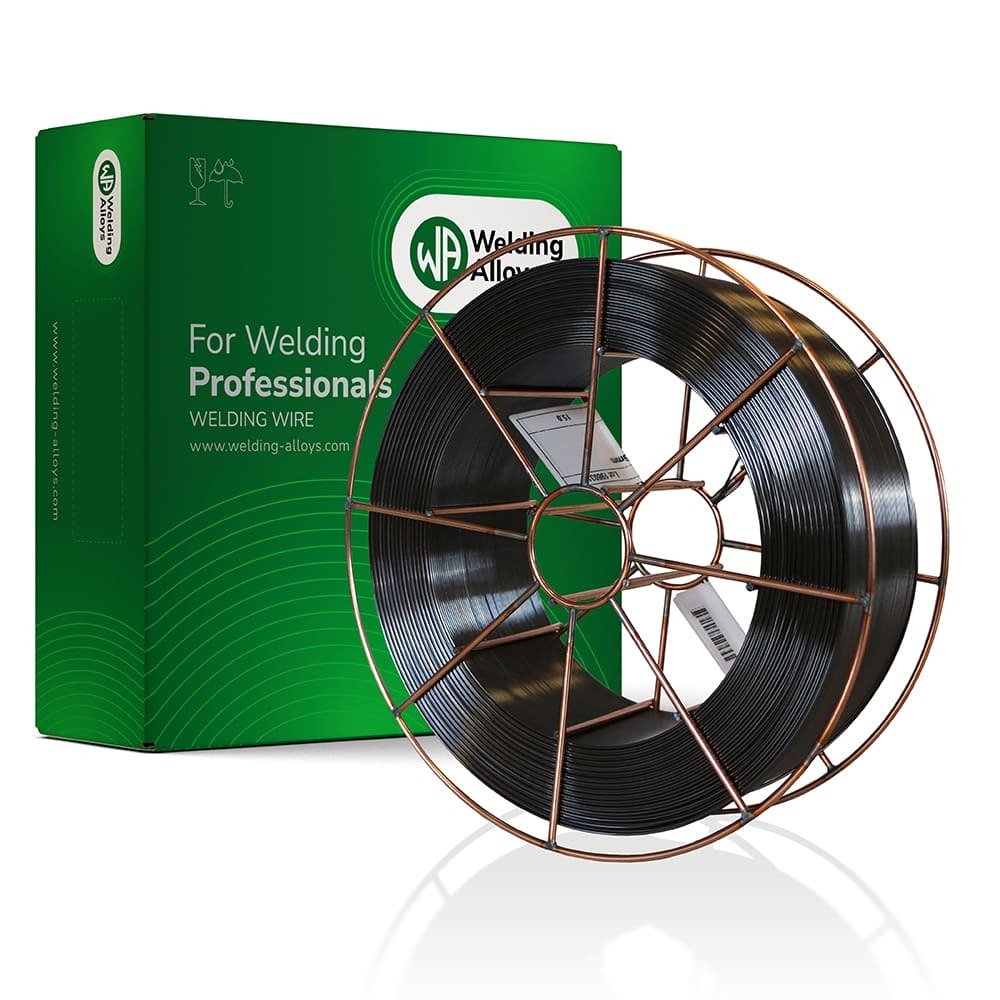

  • 15kg Spool
  • 1.2mm Wire
  • It is used with Mixed Gas Argon 5/2 or similar Mixed Argon gas.
  • Spool Outside Diameter = 300mm
  • Spool Hub inside Diameter = 51mm



Gas Shield wire - WELDING PARAMETERS

Wire

Diameter

Current (Amps)

Voltage (Volts)

Stick-out(mm)

Polarity

Range

Optimum

Range

Optimum

Range

Optimum

1.2mm

100-280

220

18-30

22

15-25

20

DC+

1.6mm

150-350

300

22-30

26

15-25

20

DC+




(LPG12S)

SKU LPG12S
Brand Welding Alloys
Shipping Weight 15.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.150m
