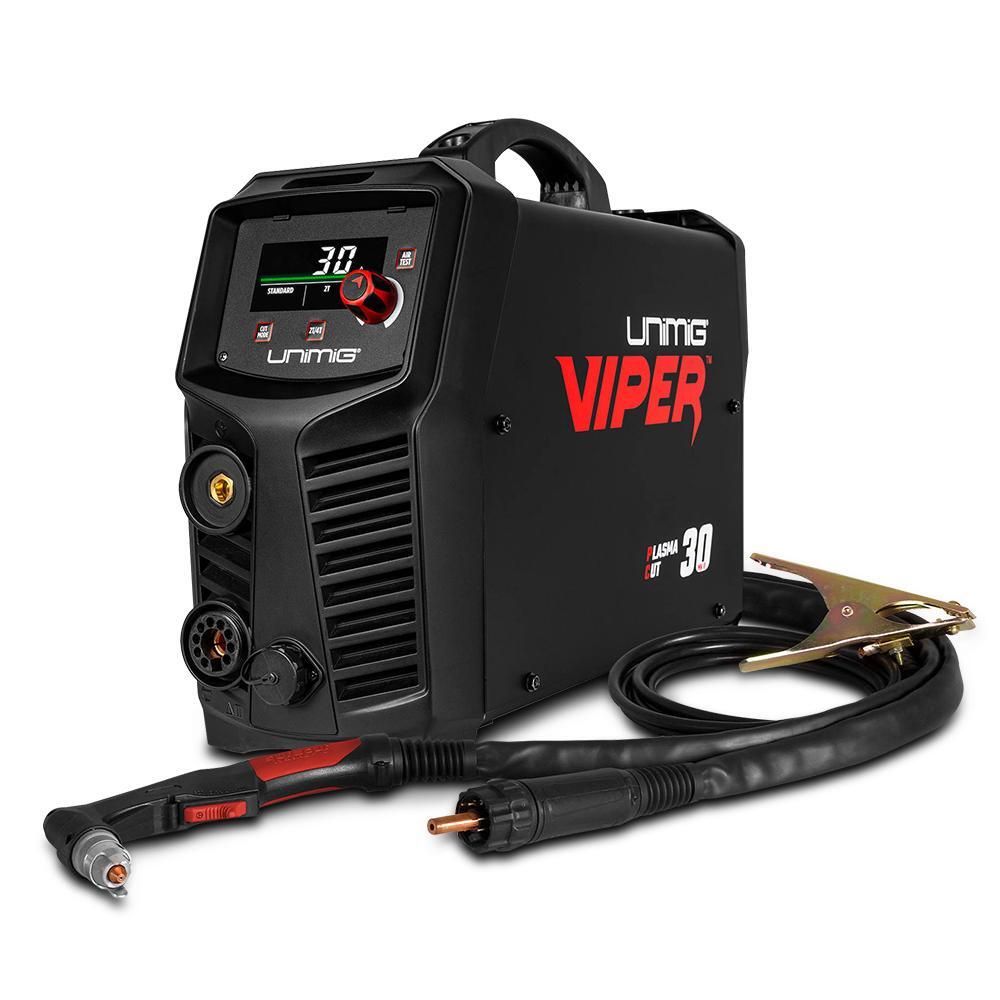

UNIMIG Viper Inverter Cut 30 MKII Plasma Cutter - U14005K

Part # U14005K


AfterPay More info.

Make 4 payments of $187.25 over 8 weeks and get it now!

In Stock

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $14.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

The all-new VIPER CUT 30 plasma cutter is specifically designed for the DIY enthusiast. With recent technological breakthroughs, the need for an expensive 15A setup is no longer a barrier preventing you from plasma cutting. Setting up a plasma cutter in your workshop has never been easier!

Bigger doesn’t always mean better – The VIPER CUT 30 delivers a more effective output, allowing clean cuts up to 12mm in Mild Steel, all powered by a machine with a 10A plug. Now equipped with CNC connection capability, cut anything, anywhere. Whether solid or perforated metal, achieve clean cuts up to 12mm thick with ease.

Key Features:

  • CNC connection that allow you to  plug in a CNC torch and use it with a CNC table
  • Maxiumum power capable of producing a 12mm clean cut and a 14mm severance
  • Cut anything from solid wire to mesh and grafting
  • 10AMP power plug, you can plug and go with any domestic outlet
  • Pilot Arc Start that lets you start the arc before contacting the work piece

Machine Specifications:

  • Product Number: U14005K
  • Primary Input Voltage: 240V Single Phase
  • Over Temperature Warning
  • Supply Plug: 10 AMP
  • Rated Input Power (kVA): 7.5
  • Rated Output: 92V
  • Protection Class: IP21S
  • Insulation Class: F
  • Minimum Generator (kVA): 8.0
  • Dinse Connector: 10/25
  • Standard: AS/NZ60974-1

Plasma Specificaions:

  • Plasma Cut Current Range: 20-30A
  • Plasma Cut Duty Cycle @ 40°C: 15% @ 30A / 60% @ 23A / 100% @ 20A
  • Mild Steel Cut Thickness: 12mm
  • Mild Steel Severance Thickness: 14mm
  • Aluminium Cut Thickness: 6mm
  • Aluminium Severance Thickness: 8mm
  • Stainless Steel Cut Thickness: 6mm
  • Stainless Steel Severance Thickness: 8mm
  • Air Flow Draw Off (L/min): 170
  • Air Flow Pressure (Bar): 5-6 (70-87 psi)
  • Plasma Arc Start: Pilot Arc

Size and Weight:

  • Dimensions (mm): 534x166x343mm
  • Weight (kg): 8.5kg

The UNIMIG Viper Cut 30 Mk II Welder is packaged ready to weld and includes:

  • VIPER™ CUT 30 Mk II Plasma Cutter
  • 4m SC30 Plasma Torch
  • 3m 300A Earth Clamp
  • Air Regulator
  • Operating Manual

** Product comes with a nationally recognised 24-month warranty through any UNIMIG Dealer **



SKU U14005K
Model # KUPJRVC40
Shipping Weight 11.0000kg
Shipping Width 0.460m
Shipping Height 0.160m
Shipping Length 0.320m
Shipping Cubic 0.023552000m3

** Product comes with a nationally recognised 12 month warranty through any UNIMIG Dealer **
