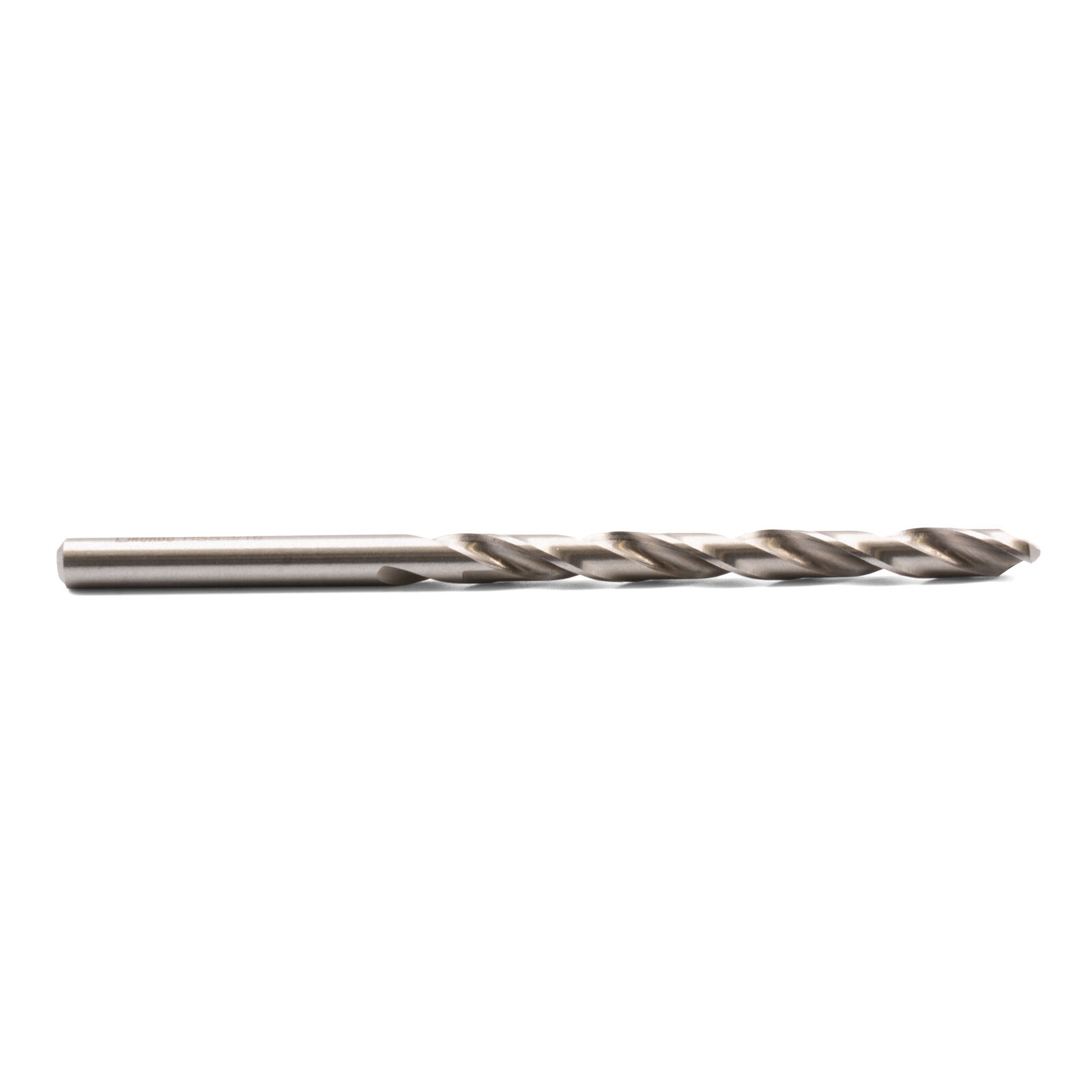

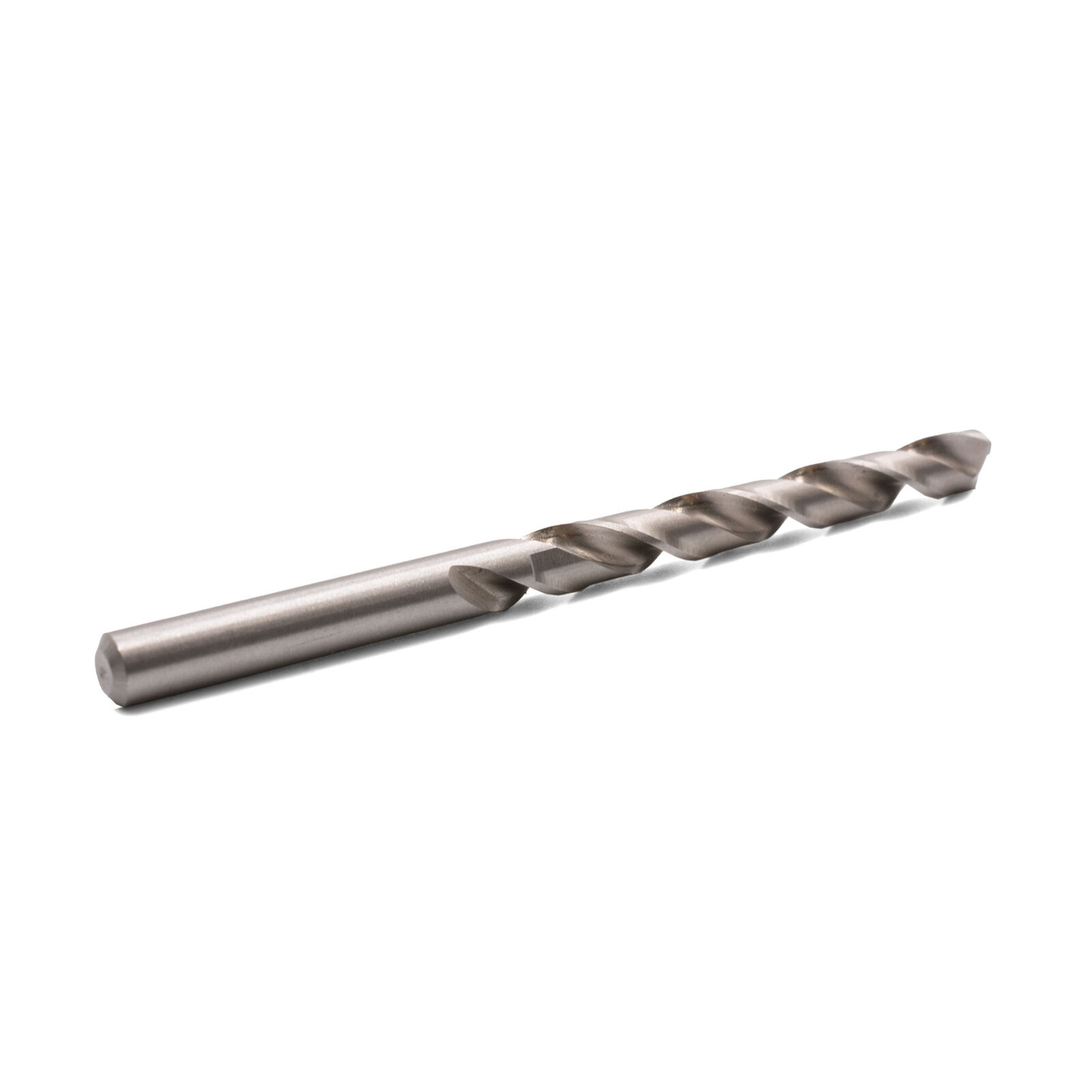

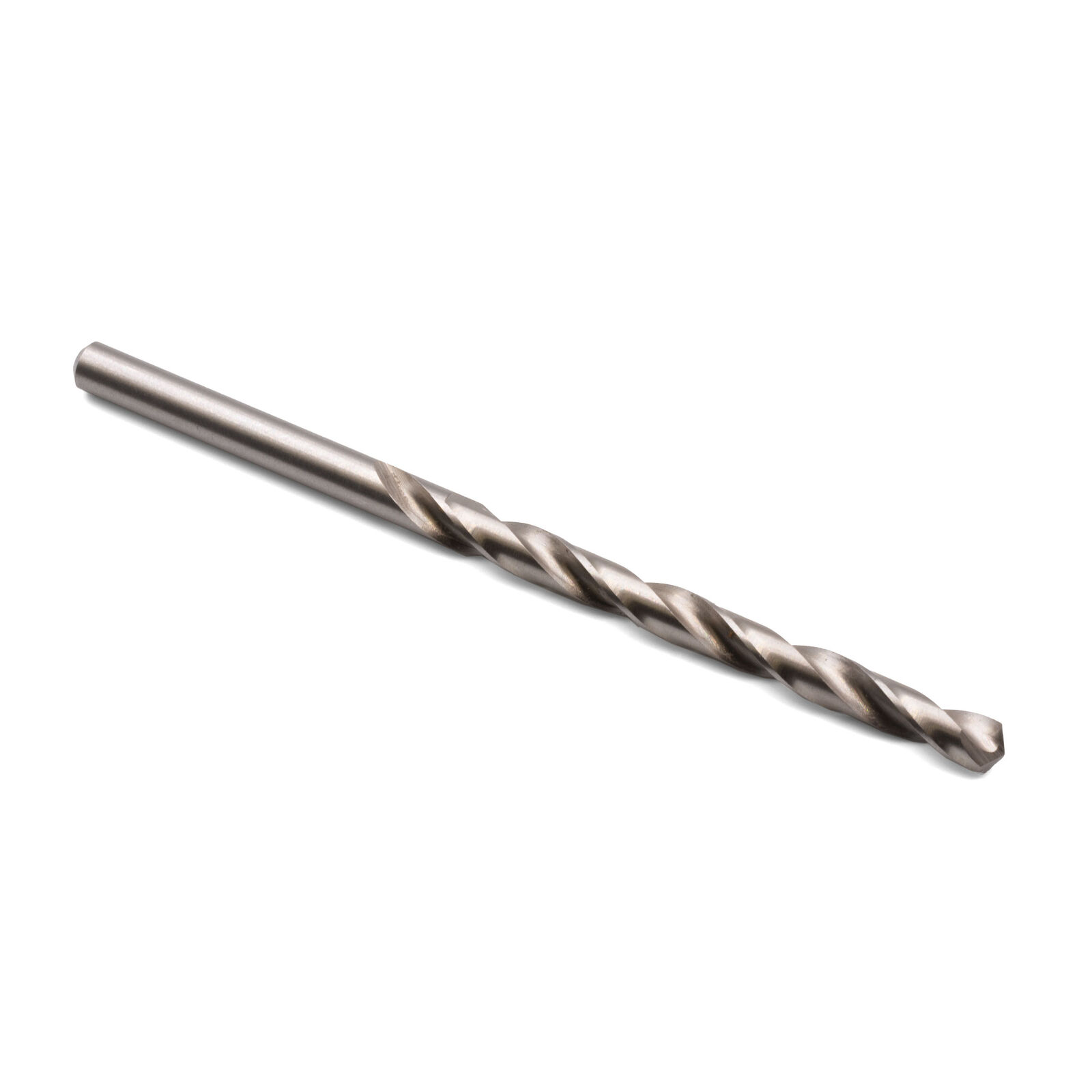

3/16" Bright HSS Jobber Drill Bit

These HSS drill bits can be used with miniature power drills and can be held in a pin vise or mini hand drill chuck collet. Precision straight shank drill bits, HSS steel with a bright finish, are used for a wide range of applications, including professional, hobby, model making, or DIY use.

Features:

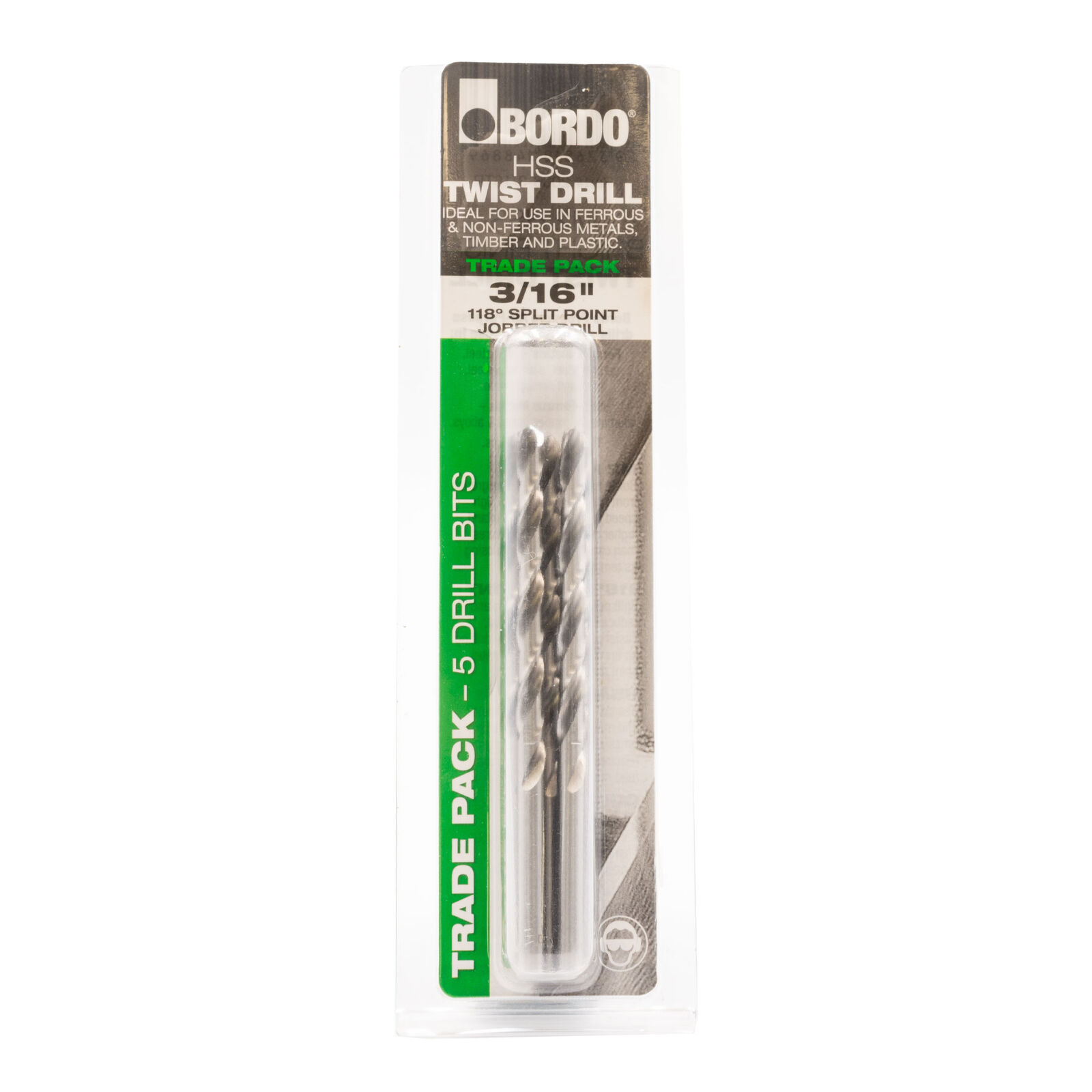

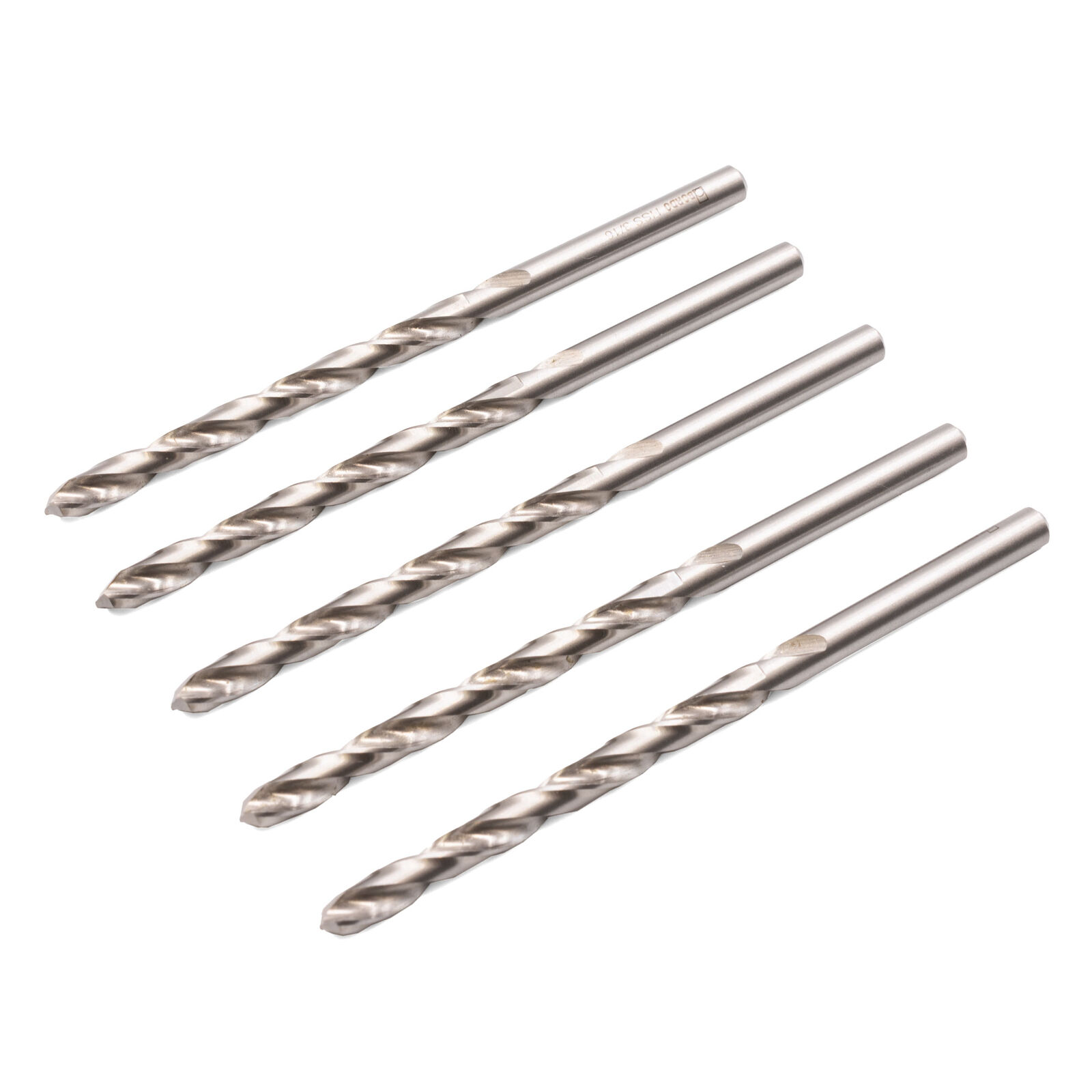

• 5 each
• 3/16" Bright HSS Twist
• Bordo Fractional Quick Silver M2-HSS Twist Drills.
• ANSI B94-11
• 118° Split Point (crankshaft point).
• Split point is self-centering and reduces the need for end thrust. Friction at the workpiece is reduced.
• 118° point angles are ideal for use in materials such as mild steel and cast iron.
• The 118° point creates easily controlled chips, which are wide and thin.
• Bright-finish twist drills have no surface treatment and are supplied in the as-ground condition.
• These tools are suitable for general-purpose use, particularly for nonferrous applications.

Dimensions:

• Drill Bit Diameter: 3/16"
• Flute Length: 59mm
• Overall Length: 89mm
• Diameter: 4.76mm
