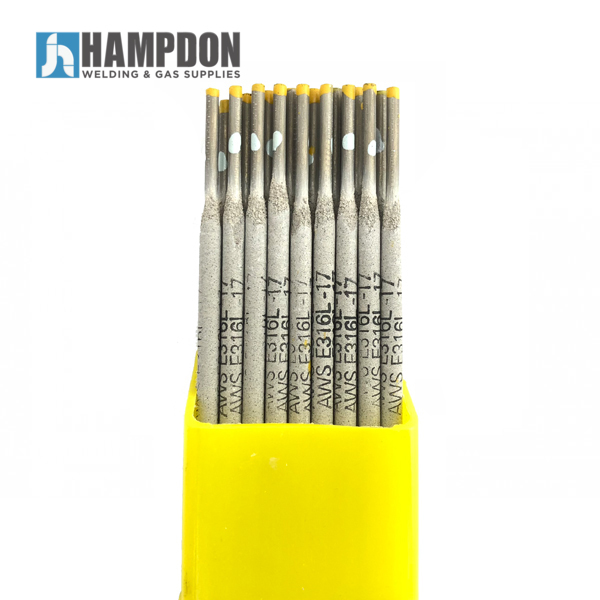

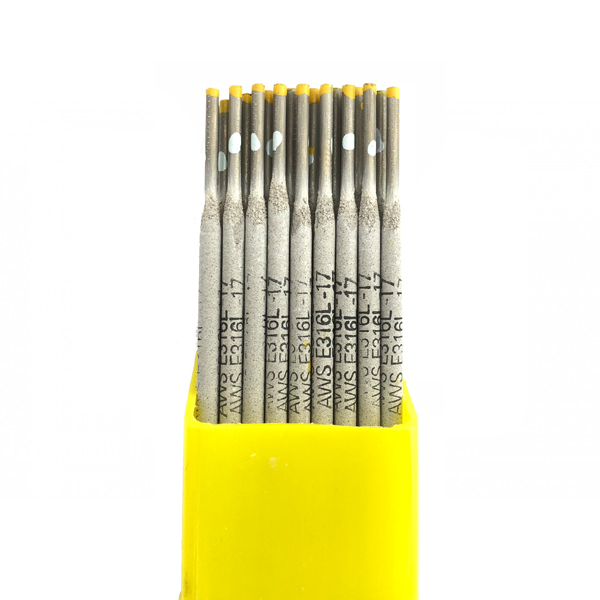

MAGMAWELD E316L - Stainless Steel 3.2mm Stick Electrodes

Calculate Shipping

3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping

DG Freight - $0.00
Charge for Dangerous Goods Freight

Free Shipping - $0.00

Express Shipping - $5.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga, Western Australia, to collect your order. Pick up times Mon to Fri 7:30 am to 5:00 pm Saturday 9:00 am to 12:00 pm

Hampdon Industrial stocks the premium range of Magmaweld Welding Electrodes. 316L-17 stainless steel is a high quality, low carbon electrode for welding of stainless steels. Suitable for the general welding of other 300 series stainless steels including 302 and 304 as well as ferritic stainless steels grades such as 409, 444 and 3Cr12. 316L offers excellent resistance to general corrosion from organic and inorganic contaminants

Features:

Made in Turkey
3.2mm thickness diameter
300mm length
400g weight
280 sticks approximate
Product code: 13017GBEM2
Stick code – EI 316L
80-120 Amps
Market-leading Magmaweld brand
All position electrode
Industrial Quality
Manufactured to international standards ISO 2560 - AWS A5.1 - ,JIS Z3211 and DIN1913
UNIMIG Part # for 1kg: U63022
UNIMIG Part # for 2kg: U63024
Equivalent to Cigweld # 611663

Properties and Applications:

Rutile type stainless steel electrode for welding austenitic stainless CrNiMo steels or cast steels, having an extra low carbon content. For operating temperatures of up to 400°C. Especially suitable for welding of stainless steel chemical tanks and pipes in chemical, textile, paint, paper industries. Possible to use equally well both with AC and DC. Easy arc striking and restriking. Fine metal droplet transfer, good fusion of joint faces, finely rippled bead surface, easily removable slag.

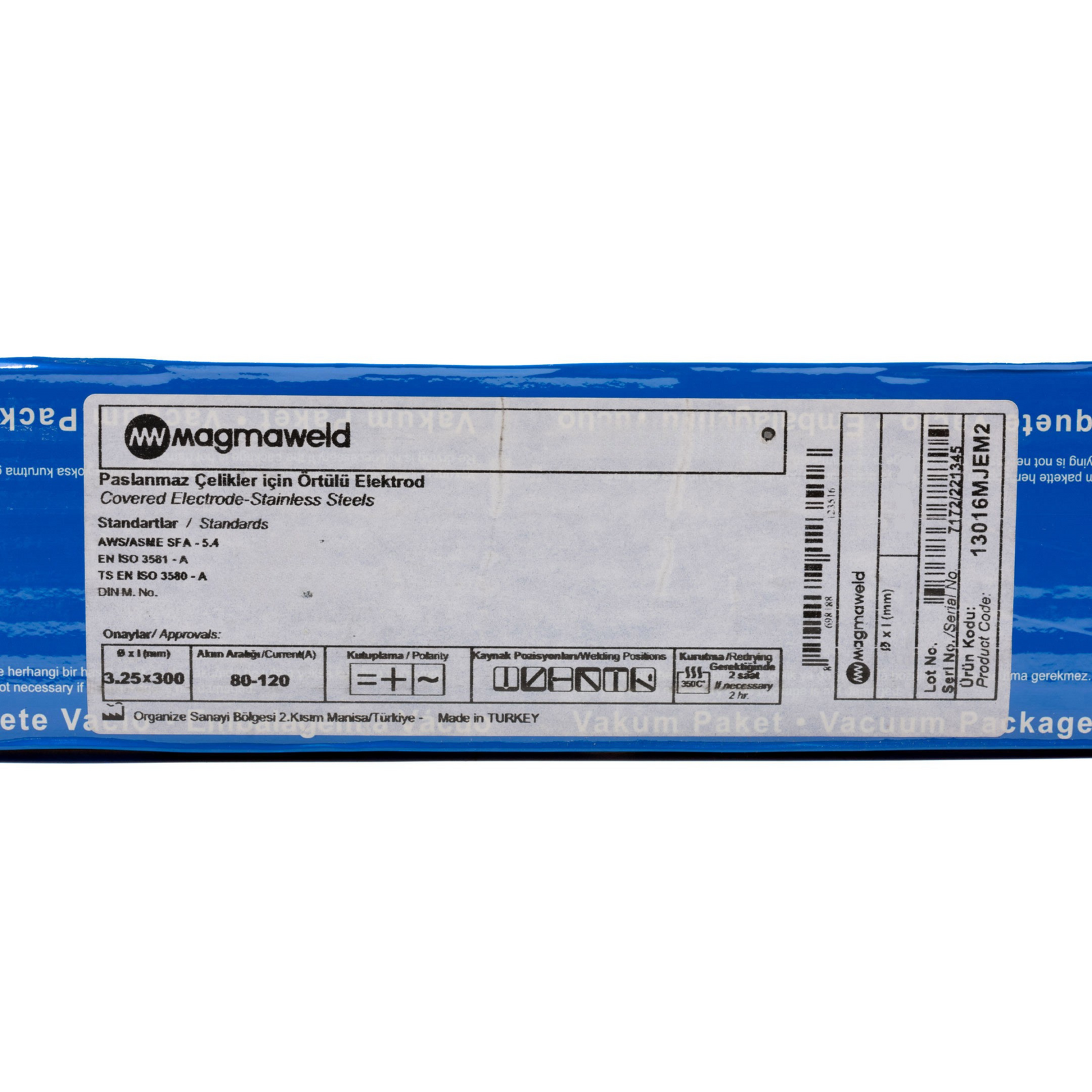

Manufactured to international standards:

AWS/ASME SFA 5.4
EN ISO 3581 A
TS EN ISO 3581 A
E316L16
E 19 12 3 L R 32

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Ni	Mo
Weld Deposit	0.03	0.80	0.90	19.00	12.00	2.80

Typical Mechanical Values of Weld Metal(%)

Test Condition	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	460	560	40	20°C → 70

Welding Position Applications:

PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical.

(E316-3.2)
