6 x AT1000 Compressed Air Line Cartridge Filter for Plasma Cutter - Sand Blaster

Description

The AT-1000 is a sub-microbic compressed air filter designed to reduce even the smallest air contaminants from the compressed air entering the Plasma Cutter. It also removes condensed moisture and oil aerosol. The ”AT 1000’ can filter up to 1250 Iiters a minute without reduction in pressure. It’s recommended to replace the filter cartridge every 5 to 7 days.

Plasma cutting demands a clean, oil free and dry condensed air source. This filter will ensure the compressed air running through your machine will not compromise its performance. Using a plasma cutter without the “AT 1000” fitted will result in condensed moisture remaining in the torch and torch head. This moisture can cause a short-circuit, with subsequent costs for the
replacement of the torch head.

• Suits all Plasma Cutters
• 6 filter value pack
• Perfect for painters running compressed air
• Pneumatic tools
• Spray painting to remove moisture from the air compressor.

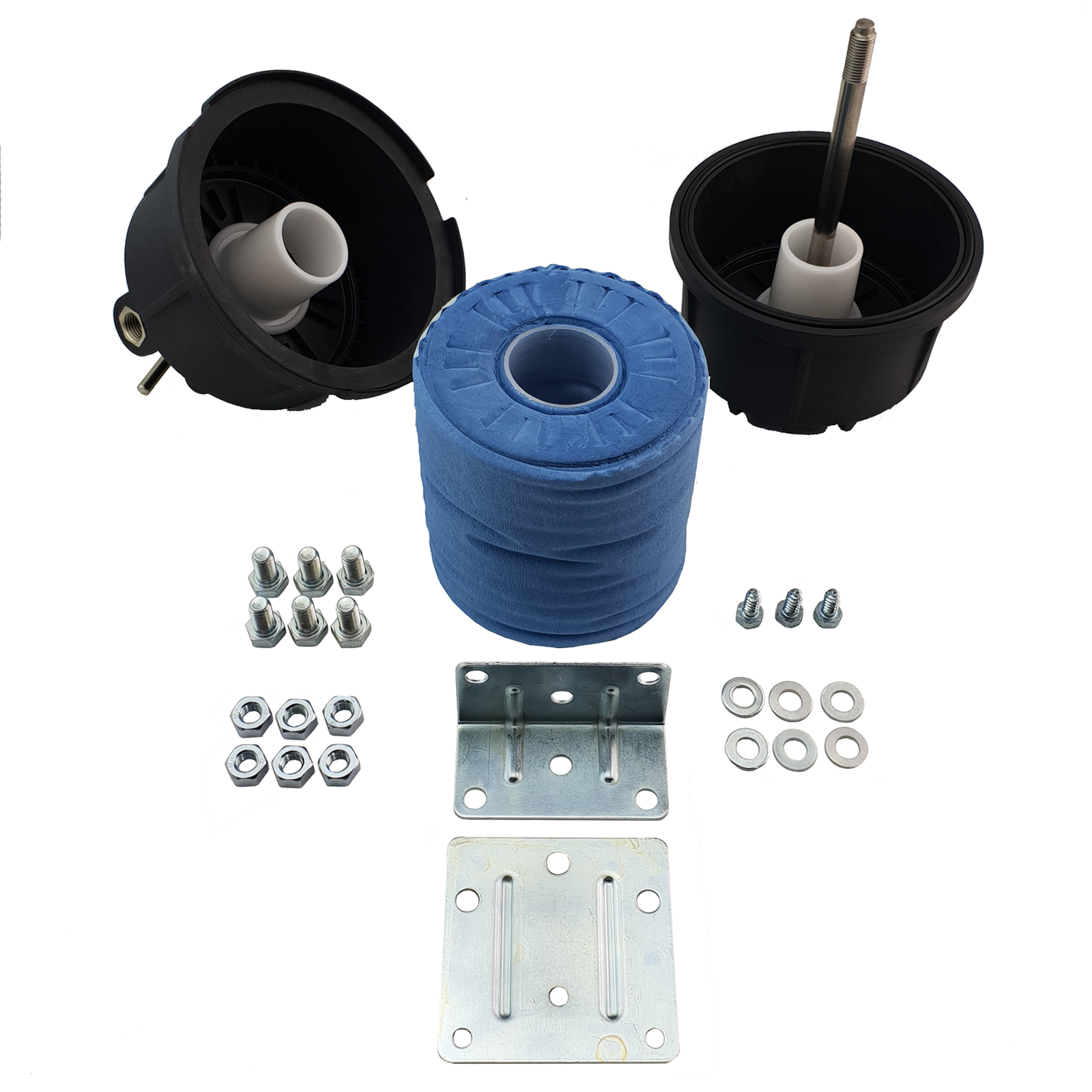

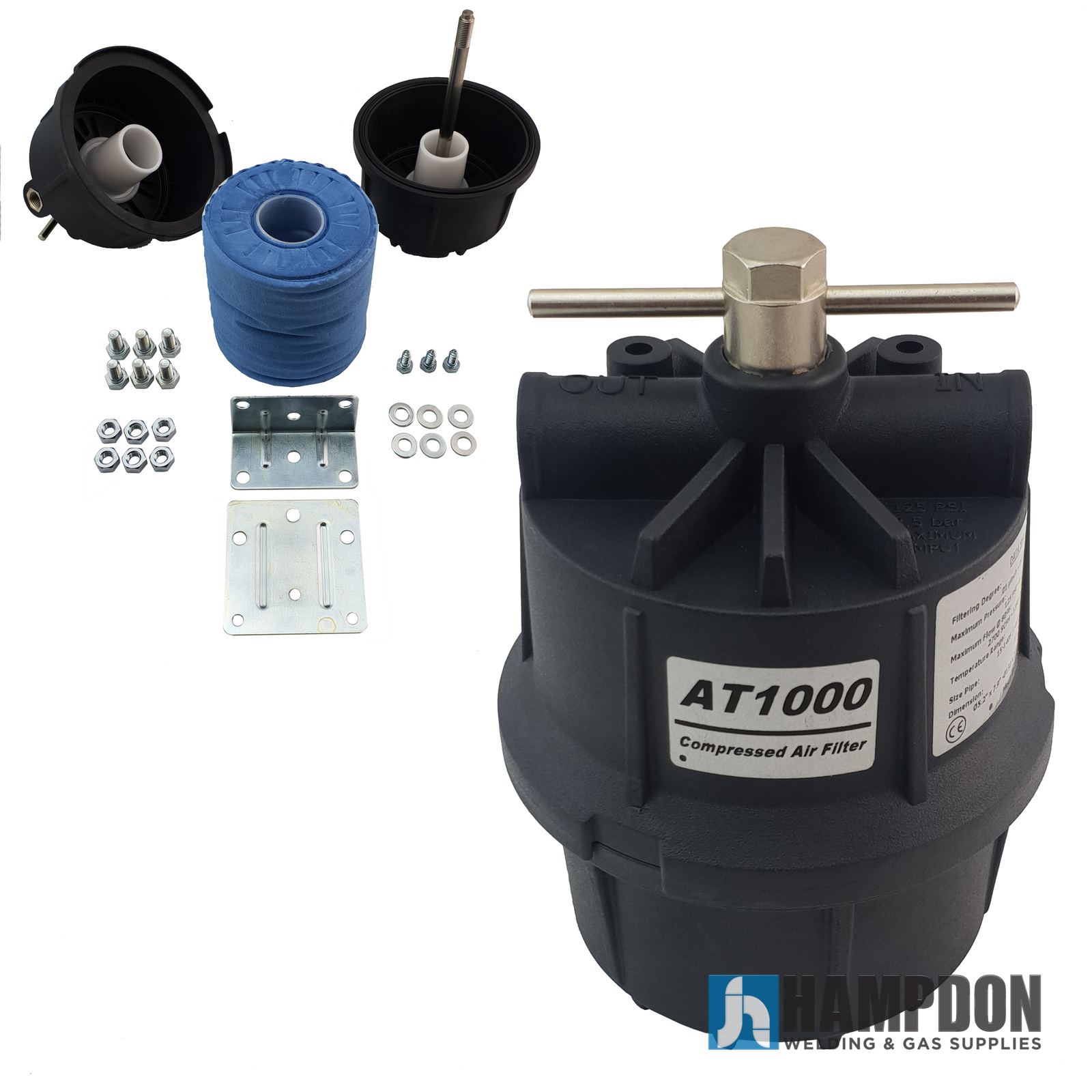

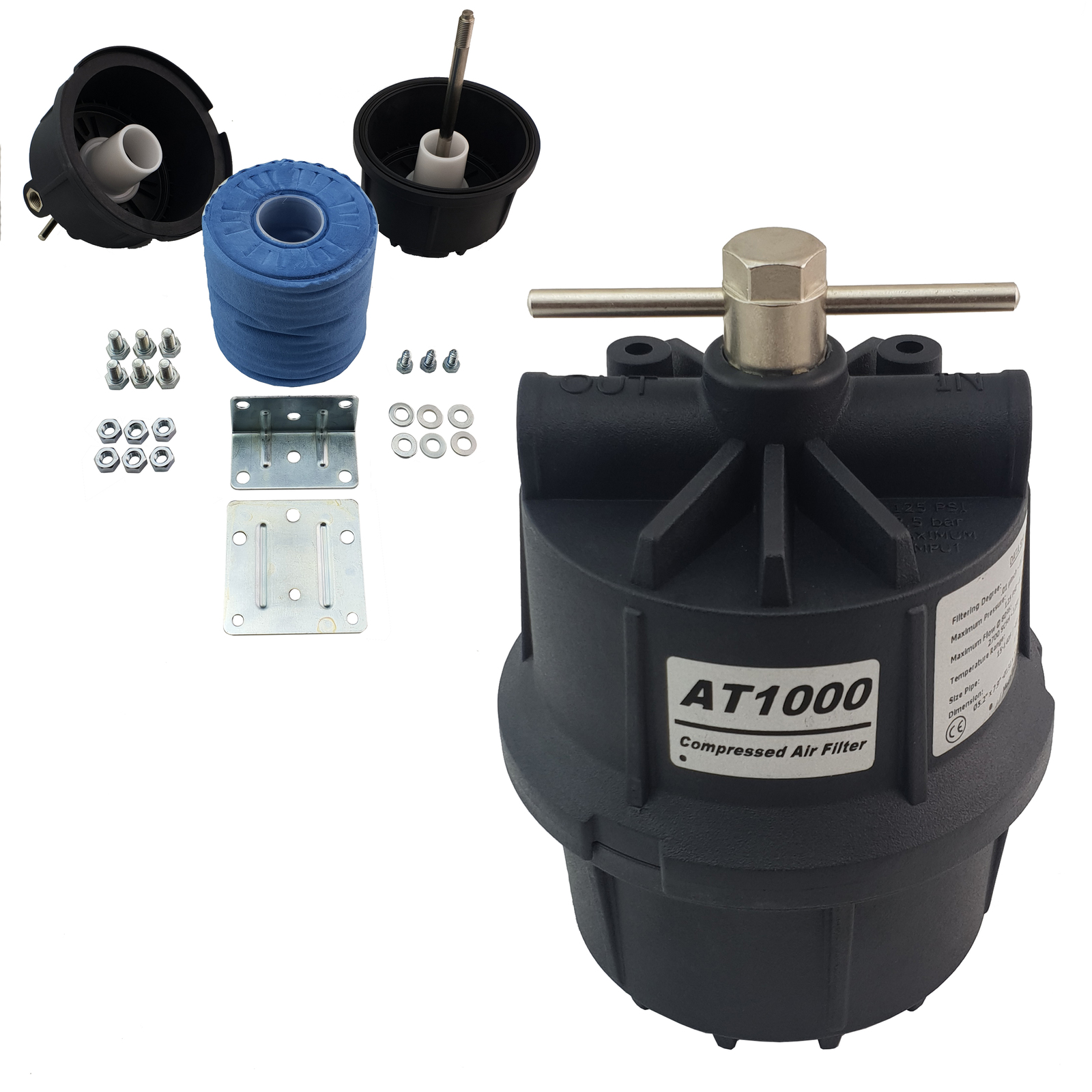

• Comes complete with blue filter and housing as pictured.
• Comes with mounting bracket.
• Made in Italy with Exceptional Quality
• Spare O rings can be found in our store - Search for 50505-OR
• Torque housing to  15 to 18 nm to ensure a good seal.

Features

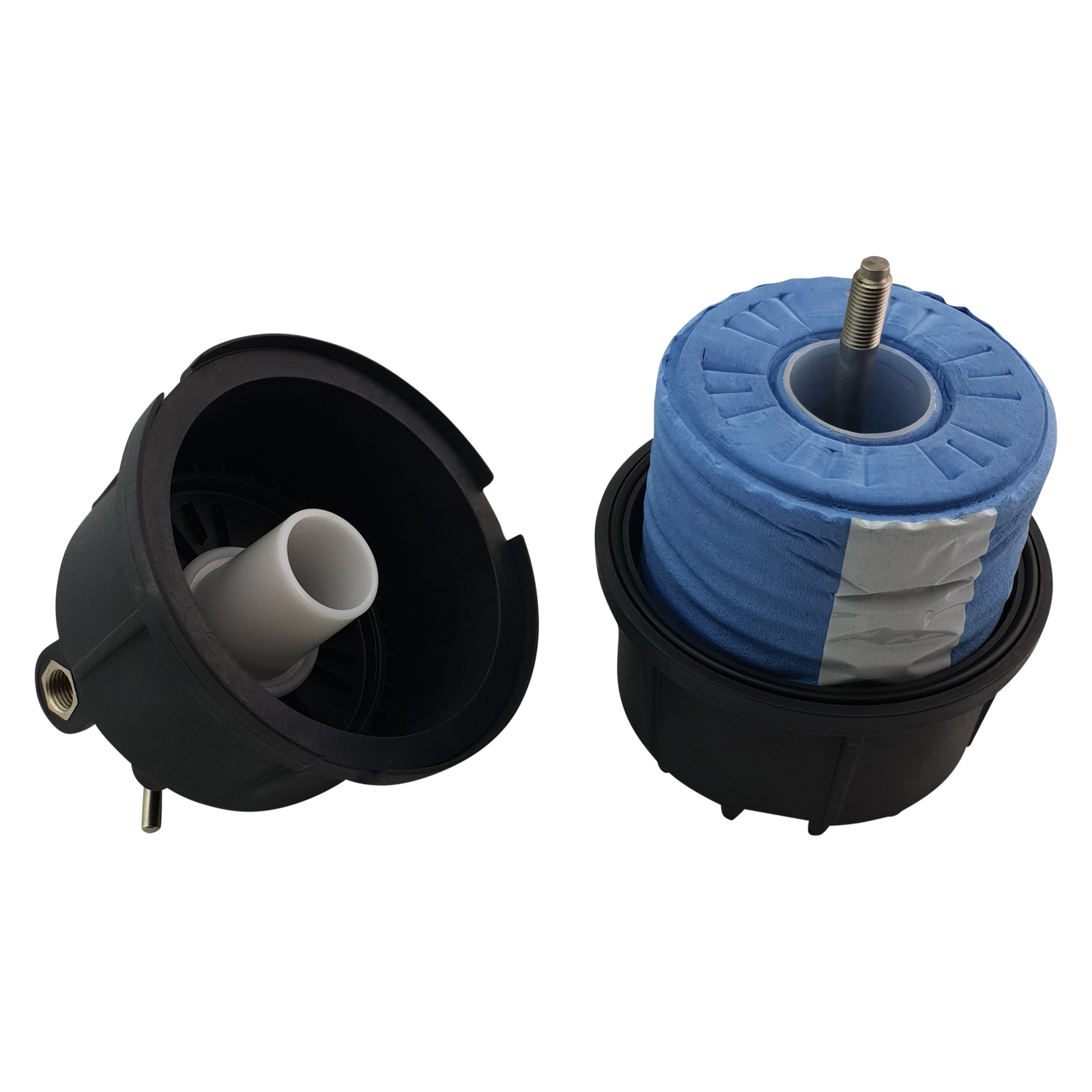

• Suits paper roll filters
• Single thumb lock

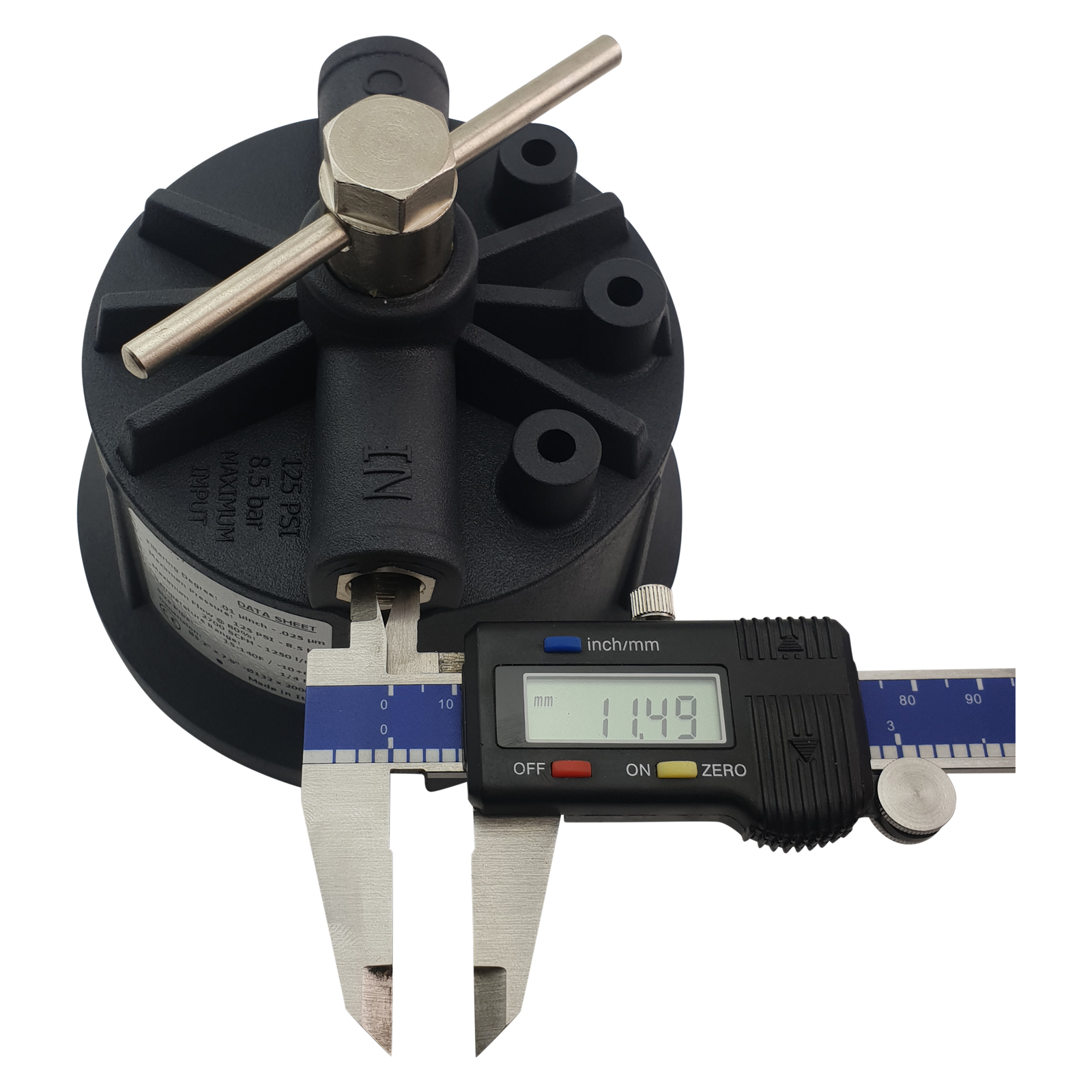

• 1/4" NPT thread
• 125psi (8.5 bar) maximum pressure (Do not over tighten the O ring)
• 0.01 micron filtration
• 132mm diameter x 200mm high canister
• 1250l/min. maximum flow

Includes
