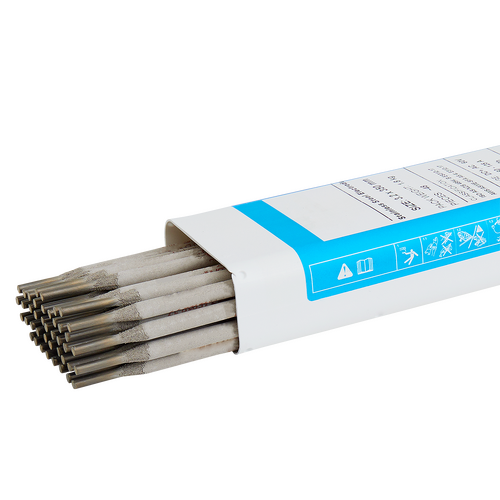

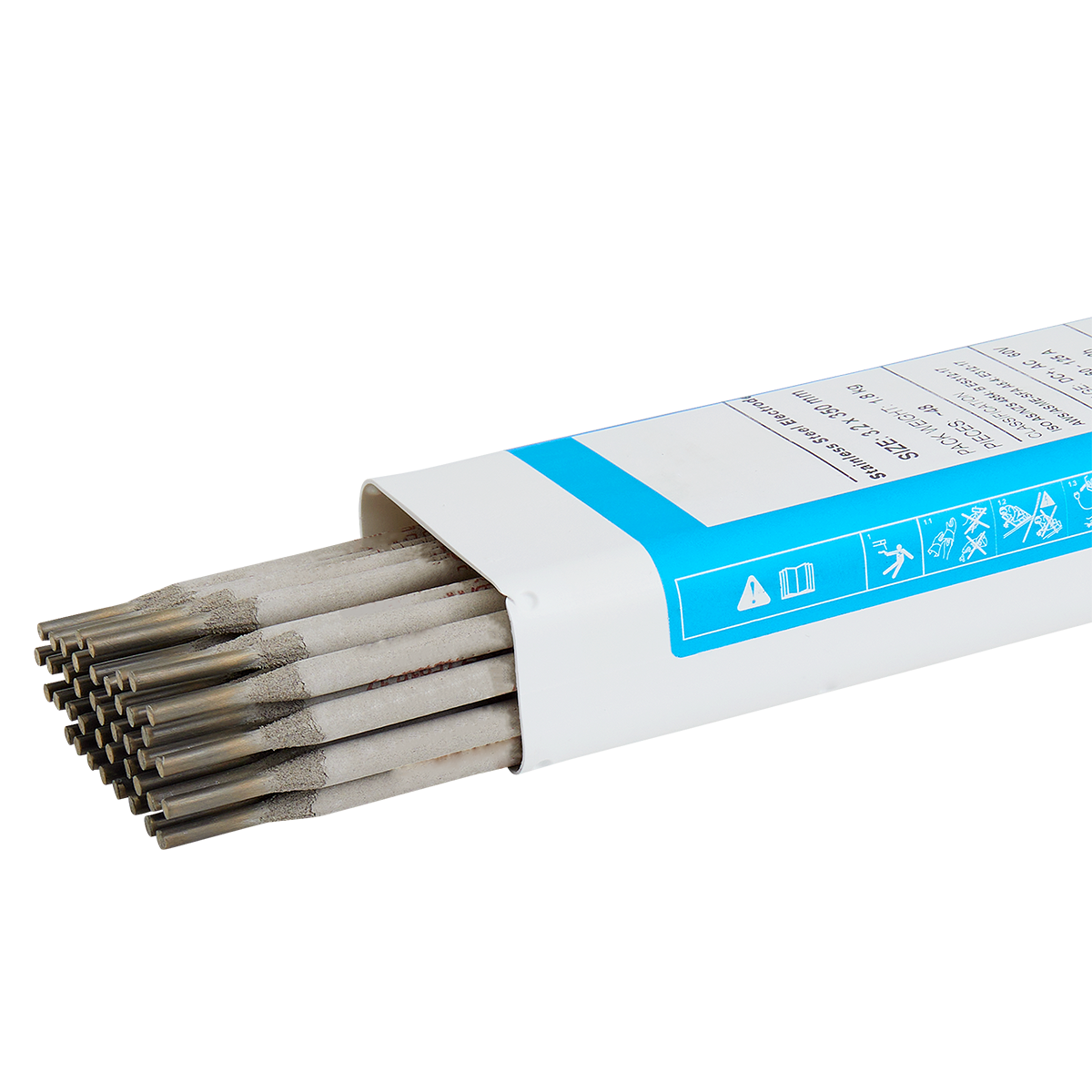

Cigweld E312 Weld All Stainless Steel 3.2mm Stick Electrodes - 1.8KG Pack

Weldall has the ability to weld all steels, has easy arc starting and excellent stability on low O.C.V welding machines & excellent operator appeal.

Weldall is a highly alloyed stainless steel electrode which deposits a strong and ductile duplex austenite-ferrite weld metal extremely resistant to cracking.Weldall has the ability to weld all steels, has easy arc starting and excellent stability on low O.C.V welding machines & excellent operator appeal.

Features:

• Cigweld
• 3.2mm thickness diameter
• 300mm length
• 1.8kg weight
• 58 sticks approximate
• Product code – 611703N
• For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.

Properties and Applications:

Rutile type stainless steel electrode for joining dissimilar steels and depositing claddings on ferritic steels. The ferritic­austenitic Cr­Ni weld metal contains approximately 50% of delta­ferrite and is non­scaling up to 1100°C. It features high resistance to cracking and is therefore suited for joining difficult to weld steels and depositing stress relaxing buffer layers on crack sensitive base metals. Especially used in crack repair and build­up of tool and die steels, rebuilding of worn or cracked gear teeth, buffer layer on cutting blades. Suitable for welding galvanized steel plates. Easy arc striking and re­striking. Fine metal droplet transfer, good fusion of joints faces, finely rippled flat and smooth bead surface, especially in fillet welds. Possible to use equally well both AC and DC. Easy slag removal of slag.

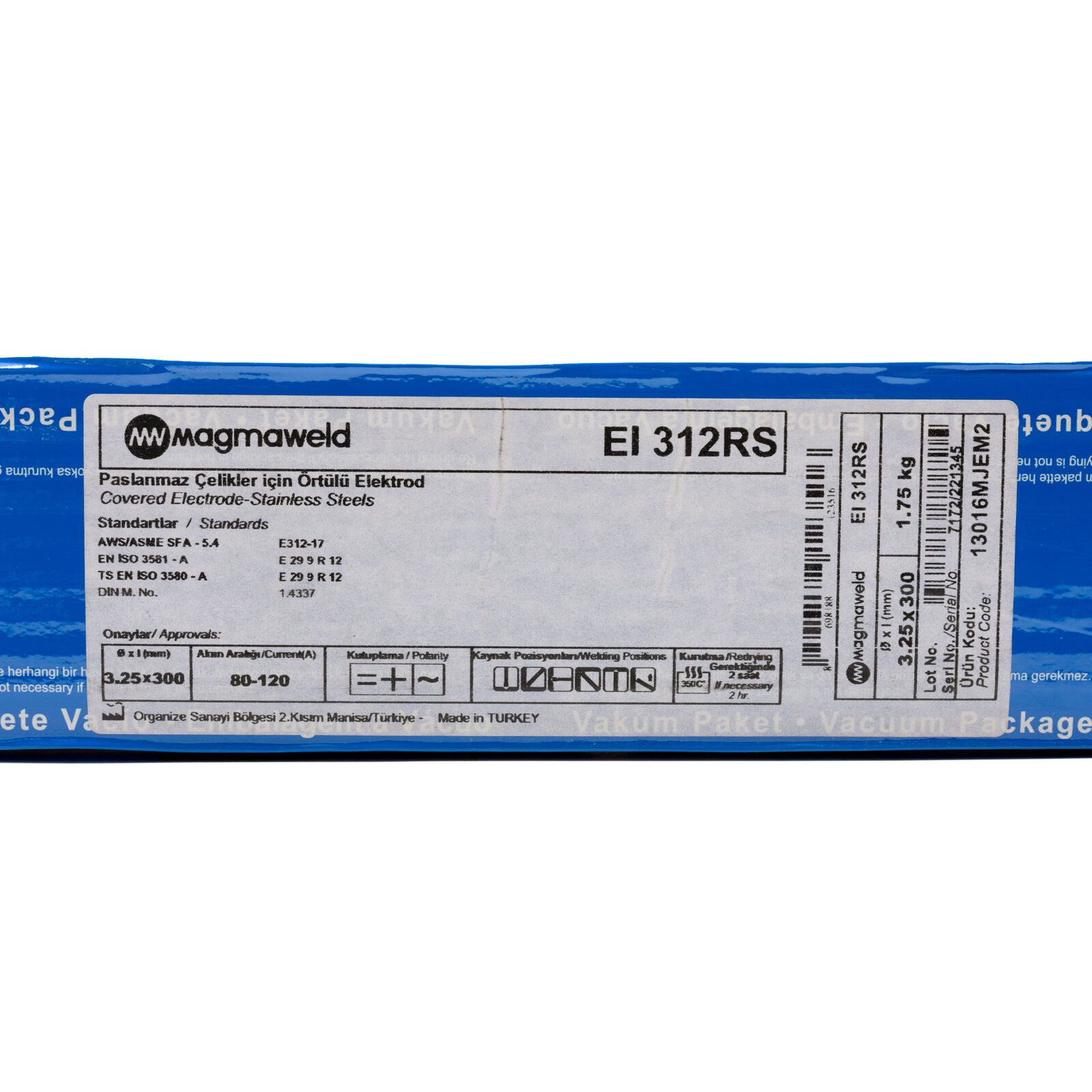

Manufactured to international standards:

• AWS/ASME SFA ­ 5.4
• EN ISO 3581 ­ A
• TS EN ISO 3580 ­ A
• E312­17
• E 29 9 R 12

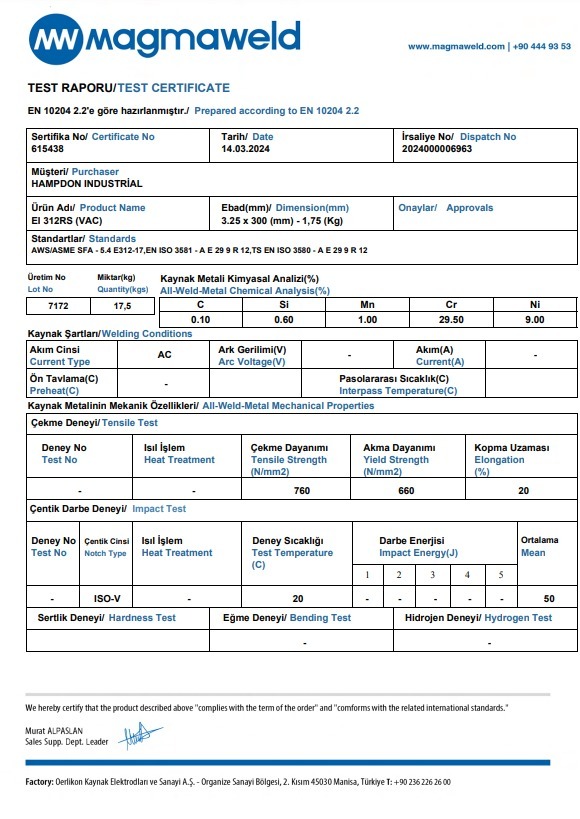

Typical Chemical Values of Weld Metal

Typical Mechanical Values of Weld Metal(%)

Welding Position Applications:

• PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
• PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
• PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
• PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
• PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
• PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical.
