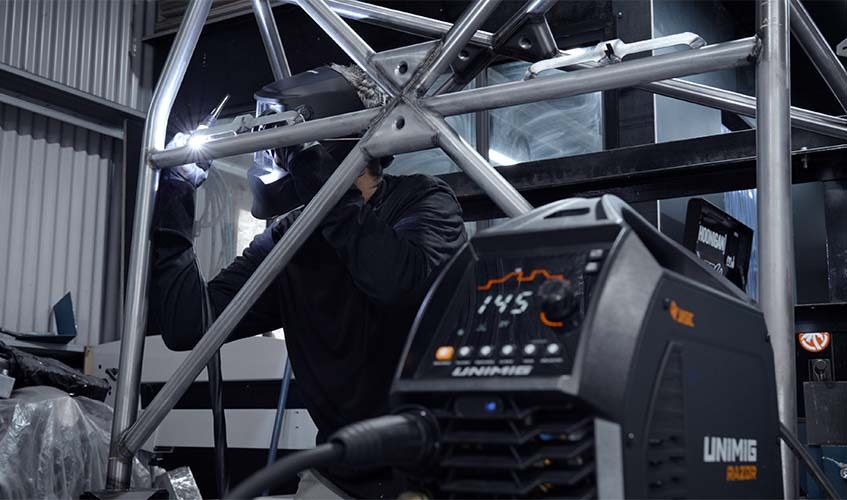

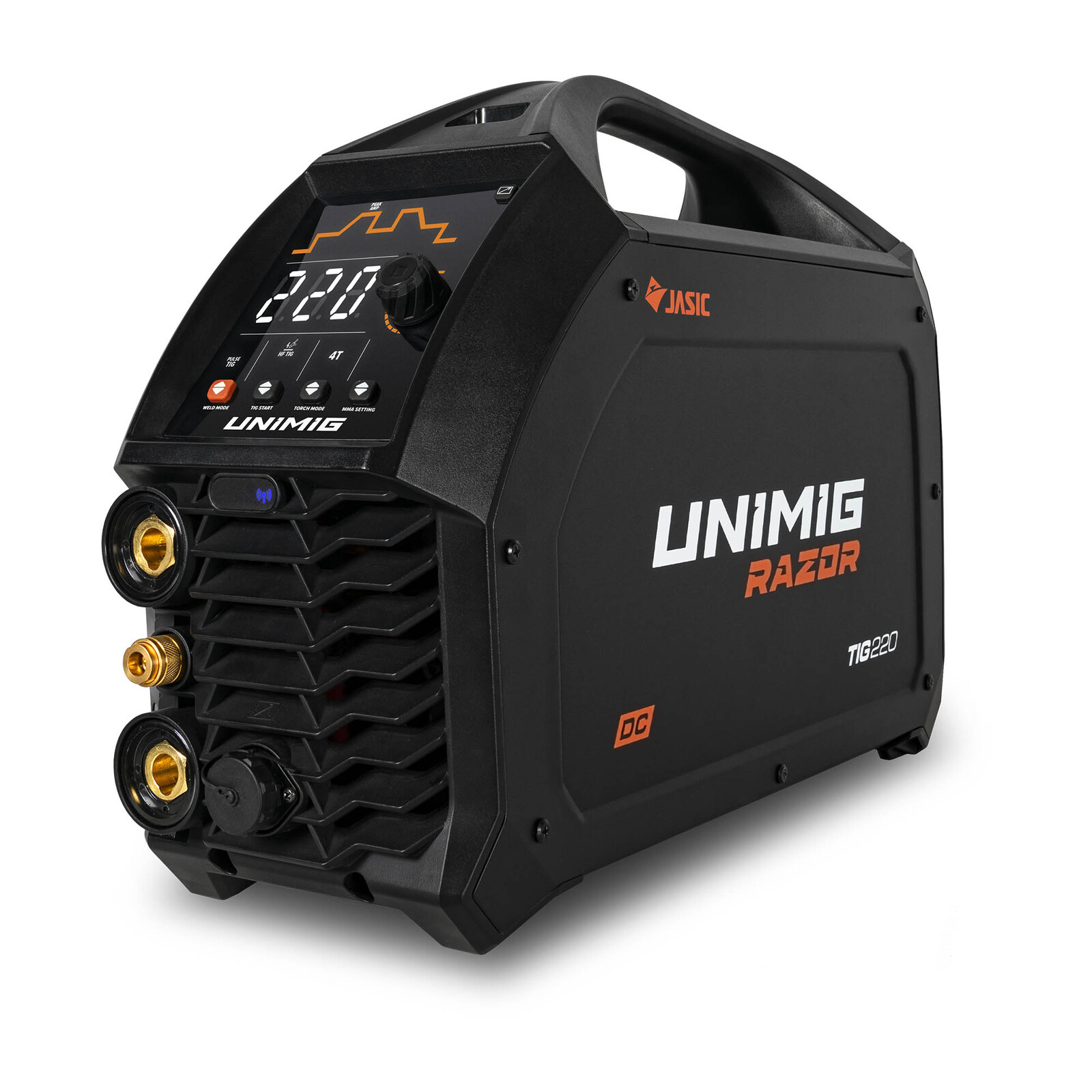

This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.
- Get the full DC TIG welding cycling including all the pulse functions
- With new PFC components, this machine can be run on a 10A plug

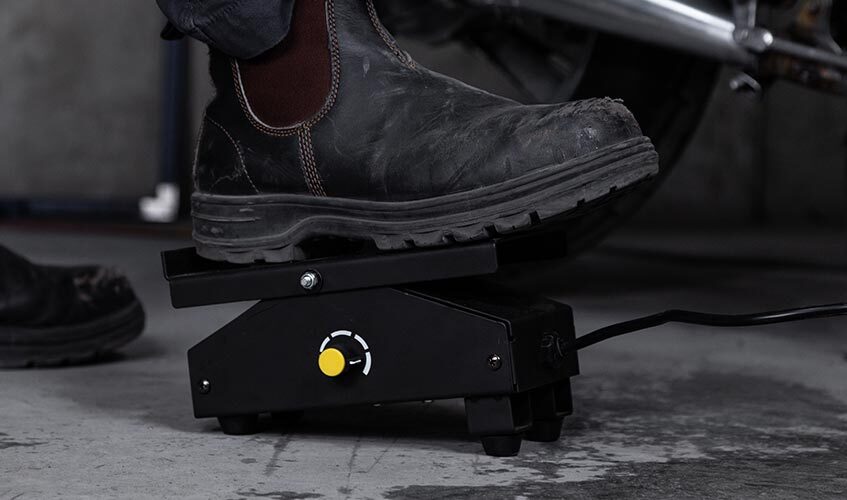

- Connect a foot pedal to the machine for extra versatility and convenience
- A 5-year warranty to reflect our confidence in this machine
Key Features:

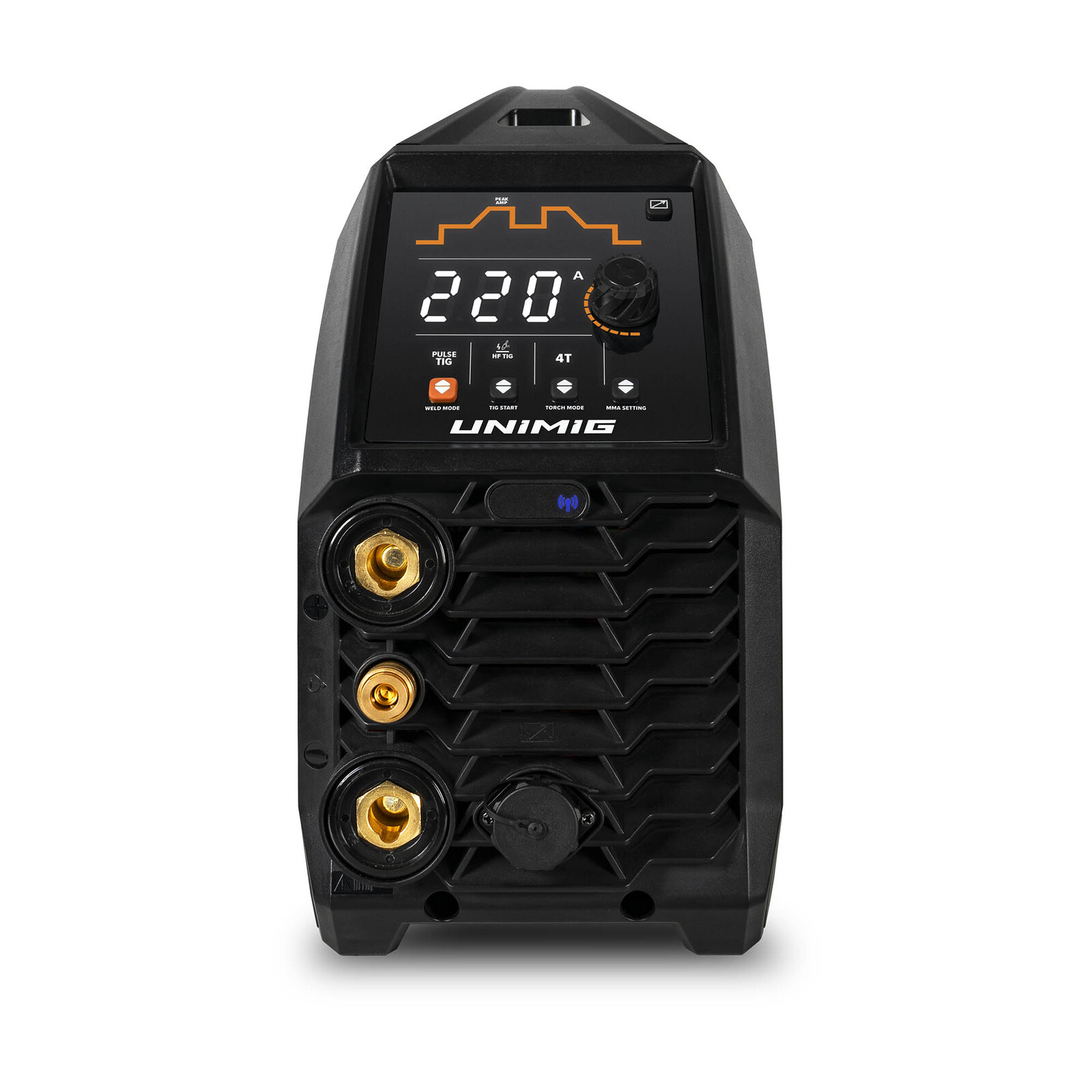

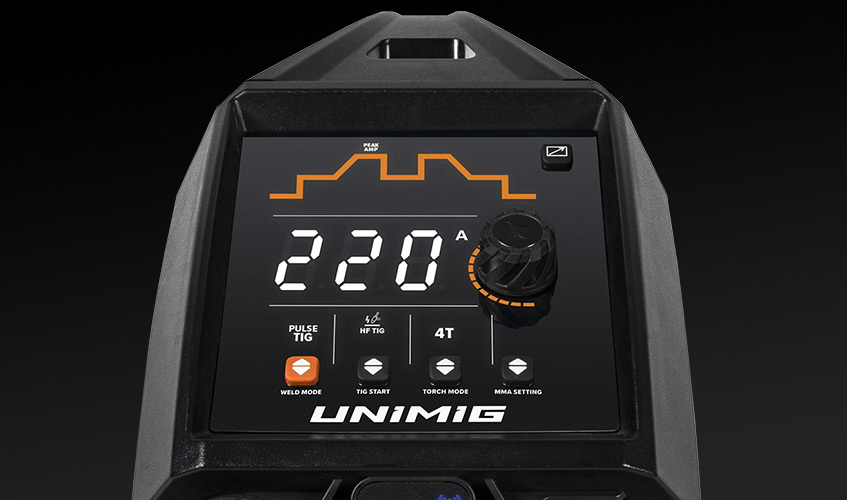

- HD Backlit Interface
- Power Factor Correction (PFC) that gives you maximum electrical efficiency

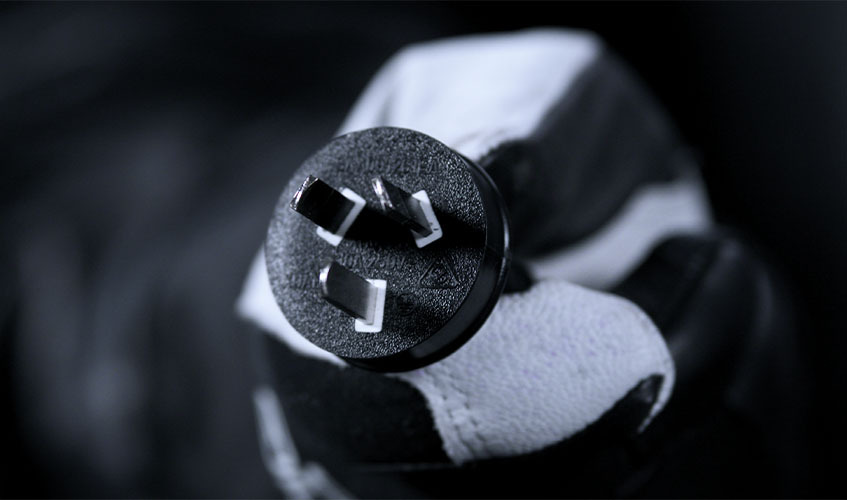

- 10 AMP power plug can be used on any domestic outlet.

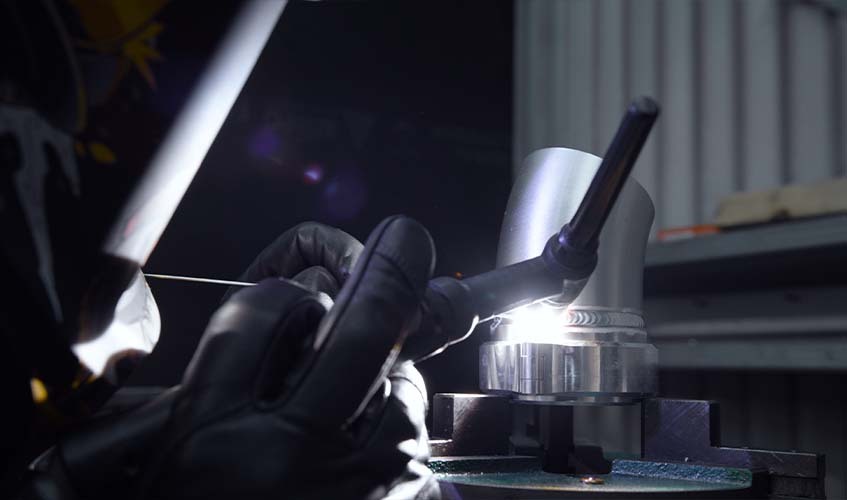

- High-frequency TIG
- Pulse TIG
- Foot control ready

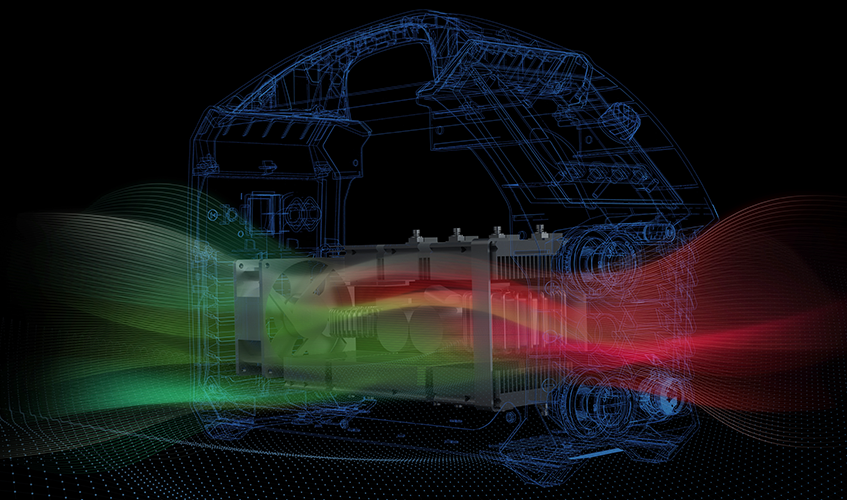

- Smart fan

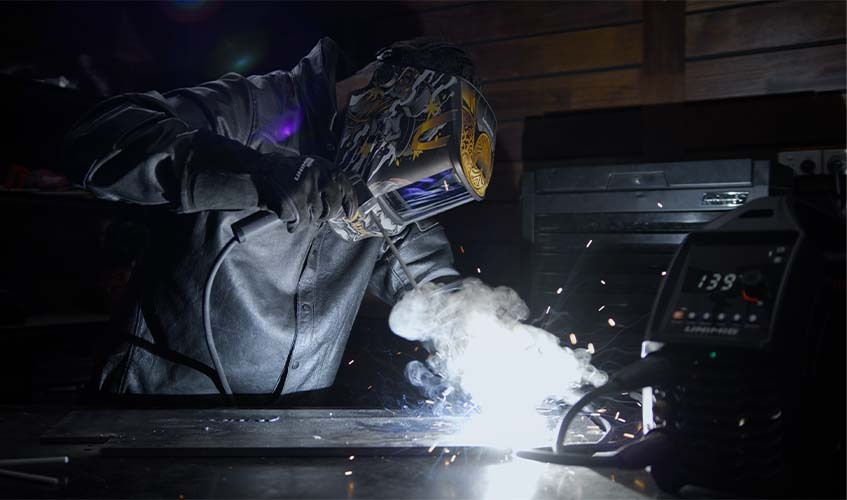

- Advanced MMA feature designed for improving weld quality and ease of use
Machine Specification:
- Part Number: U12003K
- VRD
- Foot Control Connection
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 10 AMP
- Ieff (A): 9.8
- Rated Output: 5-220A
- No Load Voltage (V): 68
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 7.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
- Suitable Material:
- TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Specification:
- TIG Function Type: DC HF TIG / DC Pulse
- TIG Welding Current Range: 5-220A
- TIG Duty Cycle @ 40°C: 20% @ 220A, 60% @ 127A, 100% @ 98A
- TIG Welding Thickness Range: 1-8mm
STICK Specifications:
- Stick Welding Current Range: 20-160A
- Stick Duty Cycle @ 40°C: 15% @ 160A, 60% @ 80A, 100% @ 62A
- Stick Electrode Range: 2.5-4.0mm
- Stick Welding Thickness Range: 2-10mm
Size and Weight:
- Dimensions (mm): 310×150×460
- Weight (kg): 8.9
(U12003K)
SKU | U12003K |
Model # | KUMJRRZ200ACDC |
Barcode # | 9333521032801 |
Brand | UNIMIG |
Shipping Weight | 19.2000kg |
Shipping Width | 0.370m |
Shipping Height | 0.340m |
Shipping Length | 0.520m |
** Product comes with a nationally recognised 36 month warranty through any UNIMIG Dealer **
Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.

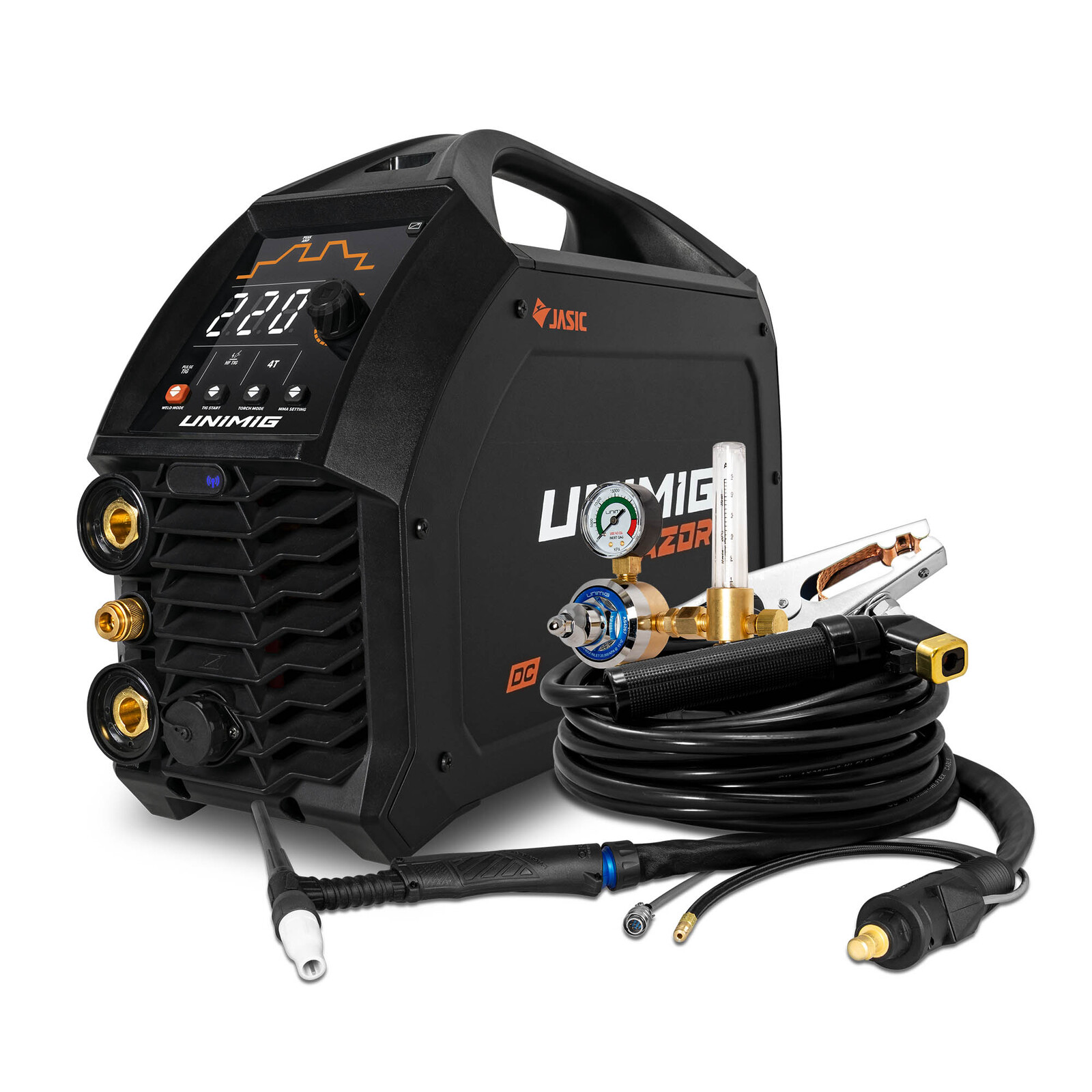

- 1 x RAZOR 200DC Machine
- 1 x 4m High-Performance T2 TIG Torch
- 1 x 4m, Earth Lead
- 1 x 4m Arc Lead 25mm cable.
- 1 x UNI-FLAME Argon Regulator
- 1 x 1.8M Gas Hose with fittings
