UNIMIG Razor Inverter Plasma Cut 45 & Filter Combo - U14006K

This special kit comes with UNIMIG's Razor Cut 45 Plasma Cutter packed with the AT1000 Compressed Air Line Cartridge Filter which is designed to reduce even the smallest air contaminants from the compressed air entering the Plasma Cutter. Plasma cutting demands a clean, oil free and dry condensed air source. This filter will ensure the compressed air running through your machine will not compromise its performance. Get productive work with this amazing plasma cutter machine without worrying any condensed moisture that could result to short-circuit, with subsequent costs for the replacement of the torch head.

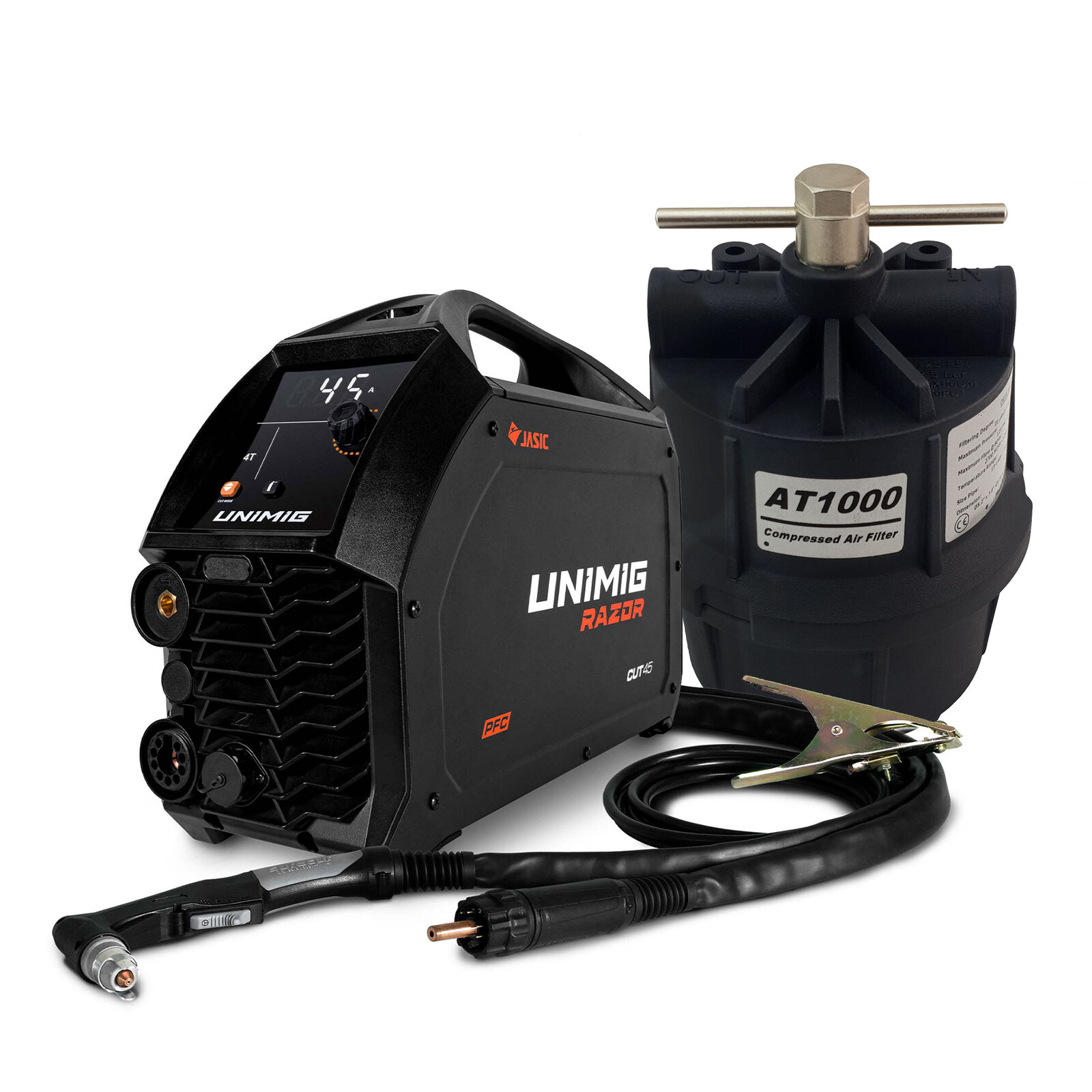

Kit Includes:

• 1 x UNIMIG RAZOR CUT45 Plasma Cutter
  1 x AT1000 Compressed Air Line Cartridge Filter

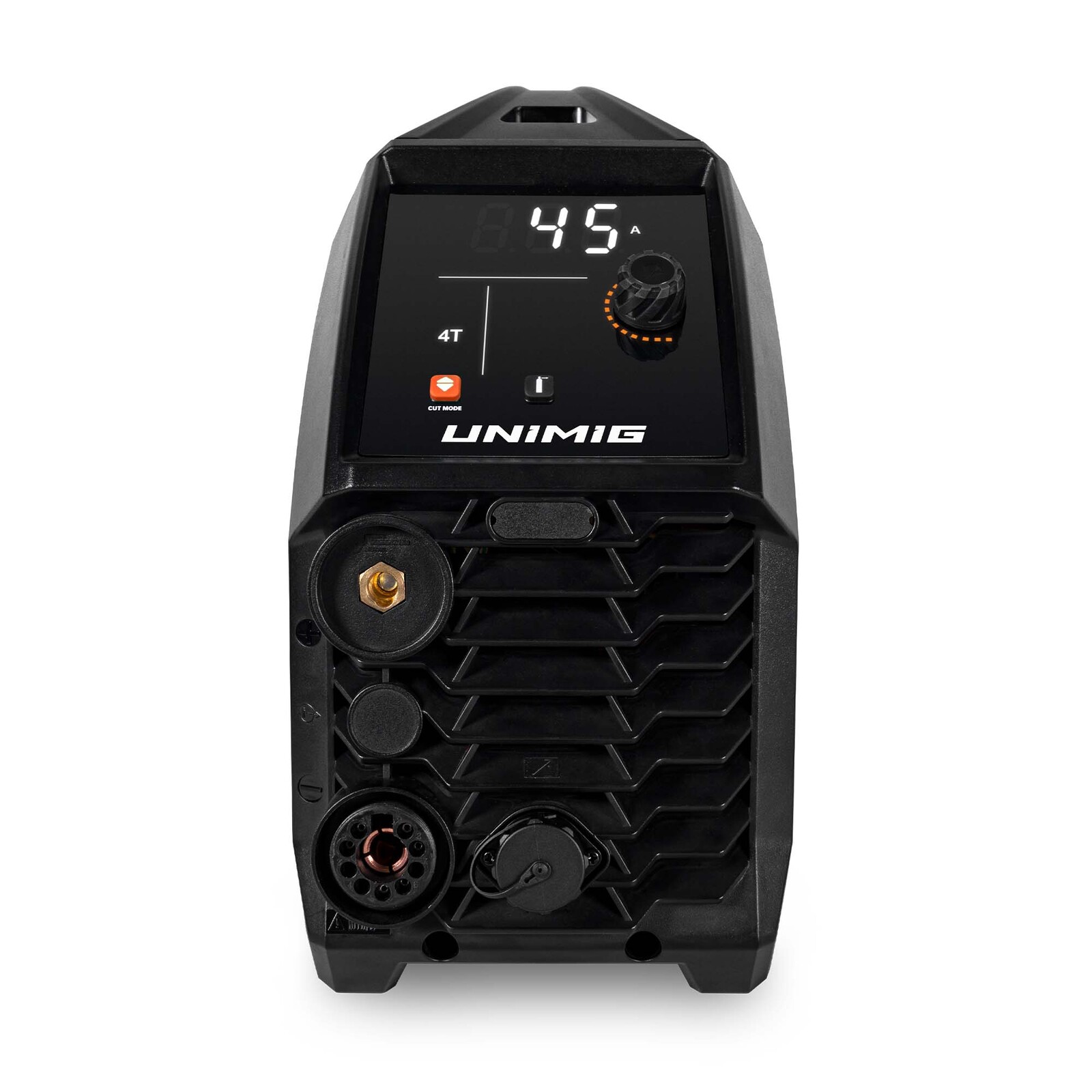

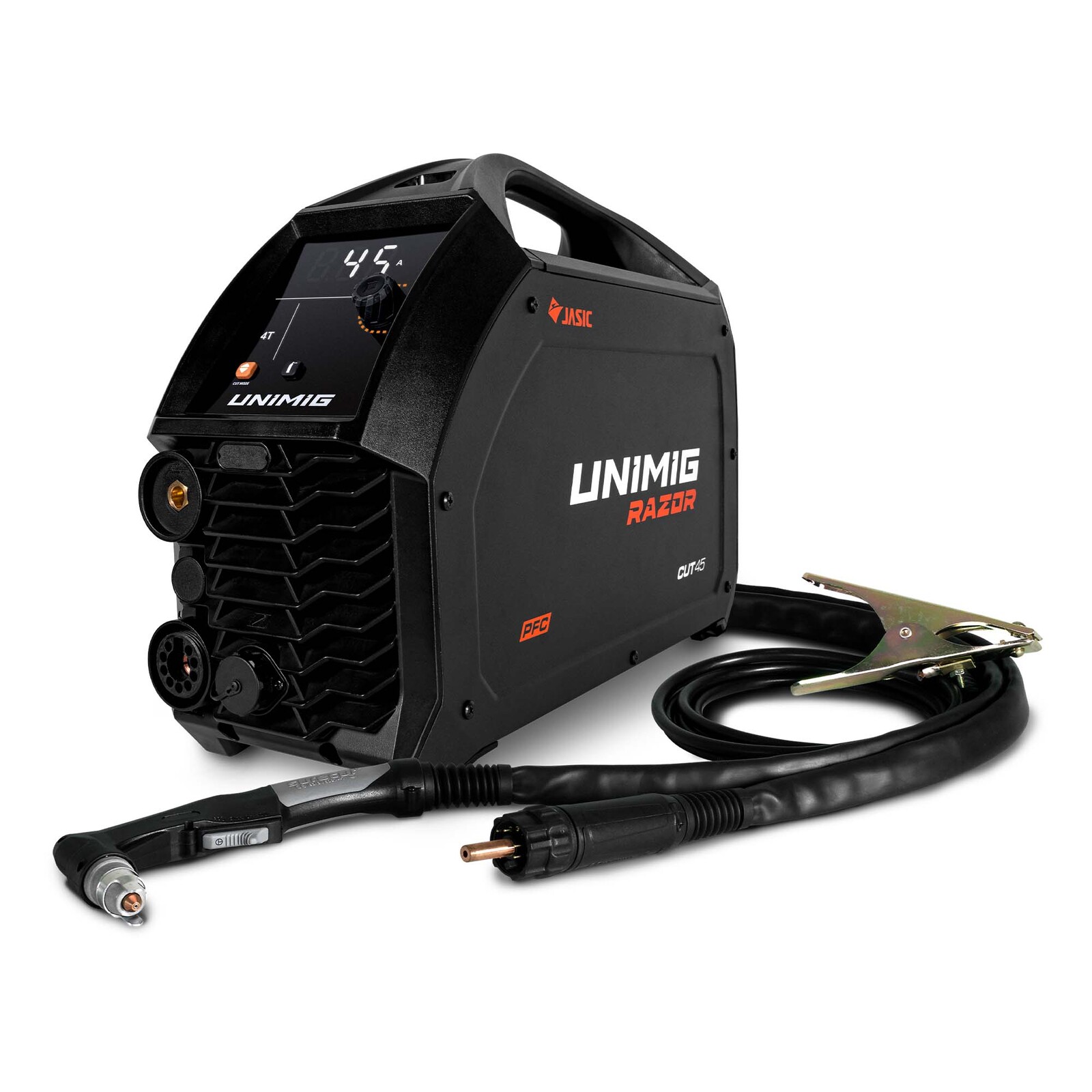

The RAZOR CUT45 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter.The RAZORCUT45 produce s a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron , stainless steel, copper, aluminium brass etc. The RAZORCUT45 is equipped with a high quality SureGrip SC80 Plasma torch with Euro connection, developed specifically to enhance and improve the cut quality of the RAZORCUT45 machine. Connection of the SC80 Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips. The RAZORCUT45 is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services. The RAZORCUT45 is packaged with a tough SureGrip SC80 Plasma torch, earth lead and air regulator. The RAZORCUT45 gives you the best of both worlds great portability, with the power to get the job done. Built to our specification and manufactured in compliance to AS/NZS 60974-1

Key Features:

• Latest IGBT Inverter Technology
• Safe Euro torch connection
• 15A plug
• High quality SC80 Plasma torch
• Industrial application
• Tolerant to variable power supply
• In-built Air Regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing, with plastic front and rear covers
• 16mm Cut on Steel
• Replacement rear air quick connect part number 10038768 (search our store)
• Backed by a National 3 year warranty though UNIMIG
• Suits UNIMIG RAZOR Cut 40 Plasma Cutter with built-in compressor - Part Number U14001K
• Suits UNIMIG RAZOR Cut 80 Plasma Cutter 3 Phase - Part Number KUPJRRW80
• Suits UNIMIG RAZOR Cut 45 Plasma - Part Number KUPJRRW45
• Suits NEW UNIMIG RAZOR Cut 45 Plasma - Part Number U14006K

Machine Specifications:

• Primary Input Voltage: 240V Single Phase
• Supply Plug: 15 AMP
• Ieff (A): 15.0
• No Load Voltage (V): 300
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 8
• DINSE Connector: 10/25
• Standard: AS/NZS 60974.1

Plasma Cut Specifications:

• Plasma Cut Current Range: 20-45A
• Plasma Cut Duty Cycle @ 40°C:
  • 25% @ 45A
  • 60% @ 30A
  • 100% @ 20A
• Mild Steel Cut Thickness: 16mm
• Mild Steel Severance Thickness: 25mm
• Aluminium Cut Thickness: 8mm
• Aluminium Severance Thickness: 12mm
• Stainless Steel Cut Thickness: 8mm
• Stainless Steel Severance Thickness: 12mm
• Air Flow Draw Off (L/min): 189
• Air Flow Pressure (Bar): 5.17 (75 psi)
• Plasma Arc Start: Pilot Arc

Plasma Cut Specifications:

• Mild Steel Cut Thickness: 16mm
• Mild Steel Severance Thickness: 20mm
• Aluminium Cut Thickness: 8mm
• Aluminium Severance Thickness: 10mm
• Stainless Steel Cut Thickness: 8mm
• Stainless Steel Severance Thickness: 10mm

Size and Weight:

• Dimensions (mm): 546×169×341mm
• Weight (kg): 10kg

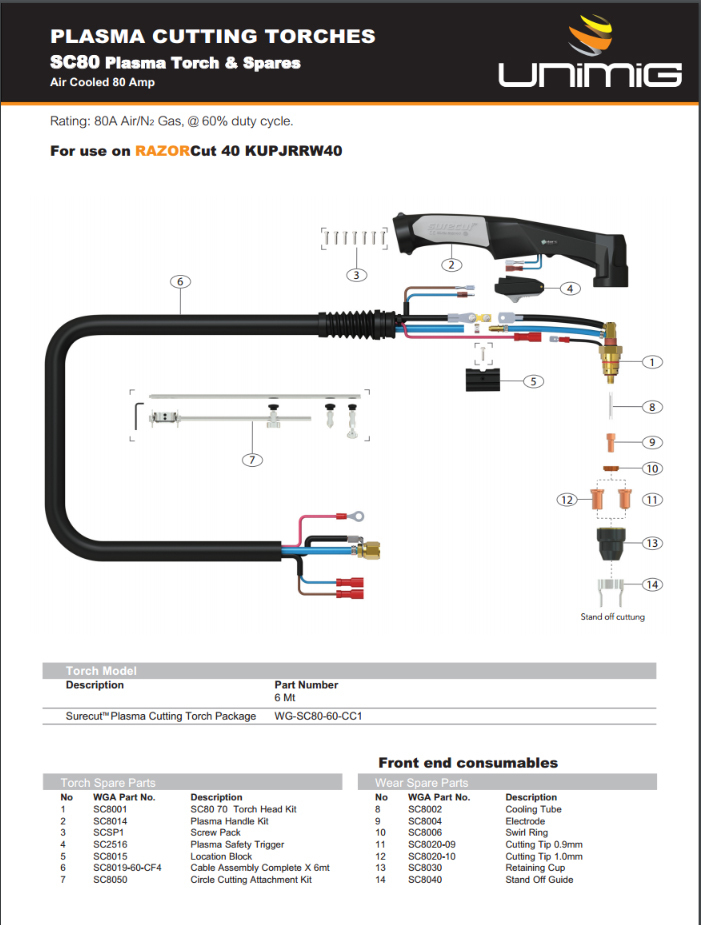

SC80 Plasma Torch Front End Consumables

• SC8002  - Cooling Tube
• SC8004  - Electrode
• SC8006  - Swirl Ring
• SC8020-09 Cutting Tip 0.9mm
• SC8020-10 Cutting Tip 1.0mm
• SC8030  - RetainingCup
• SC8040  - Stand off Guide

Assessories:

• SC8050  -  Circle Cutting Attachment Kit

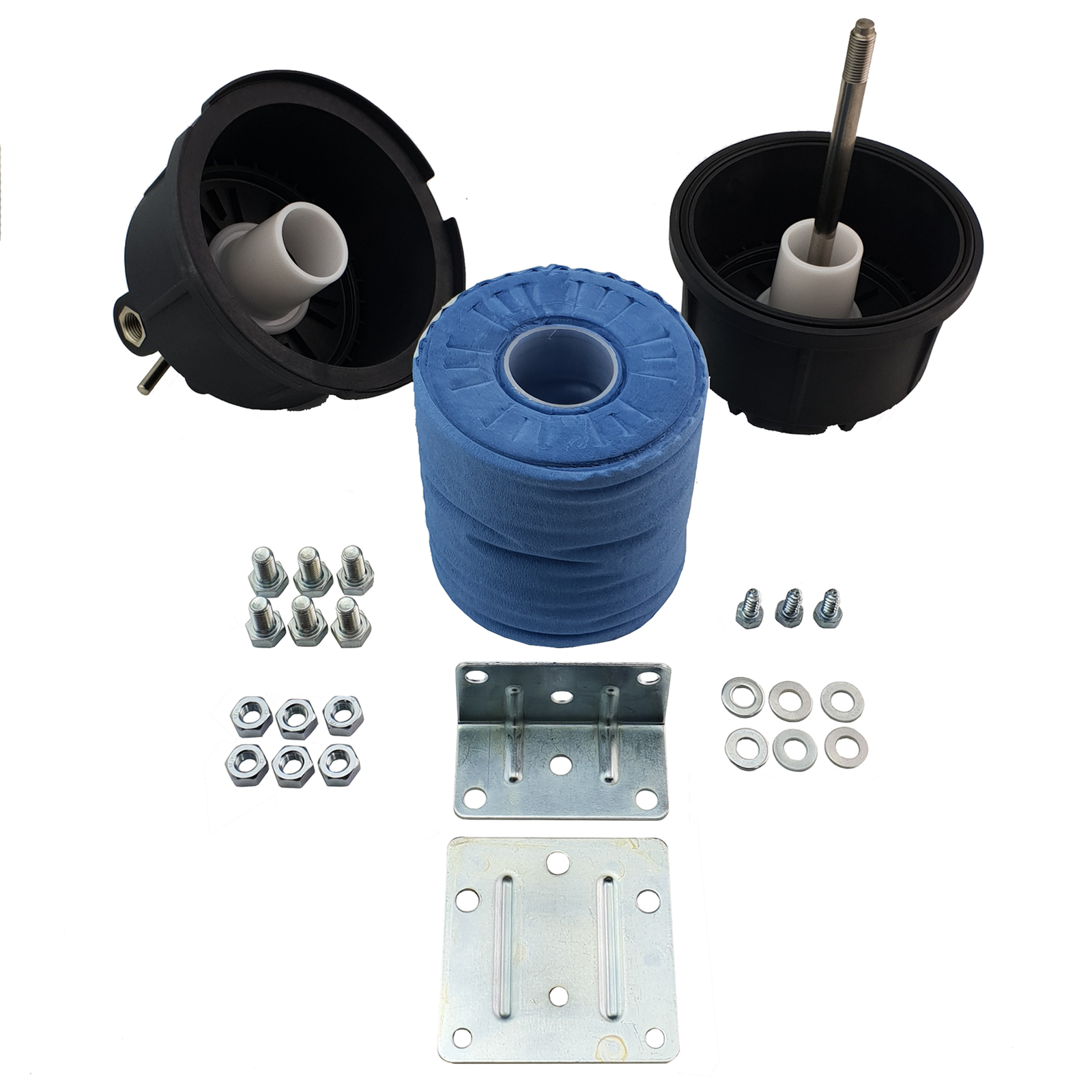

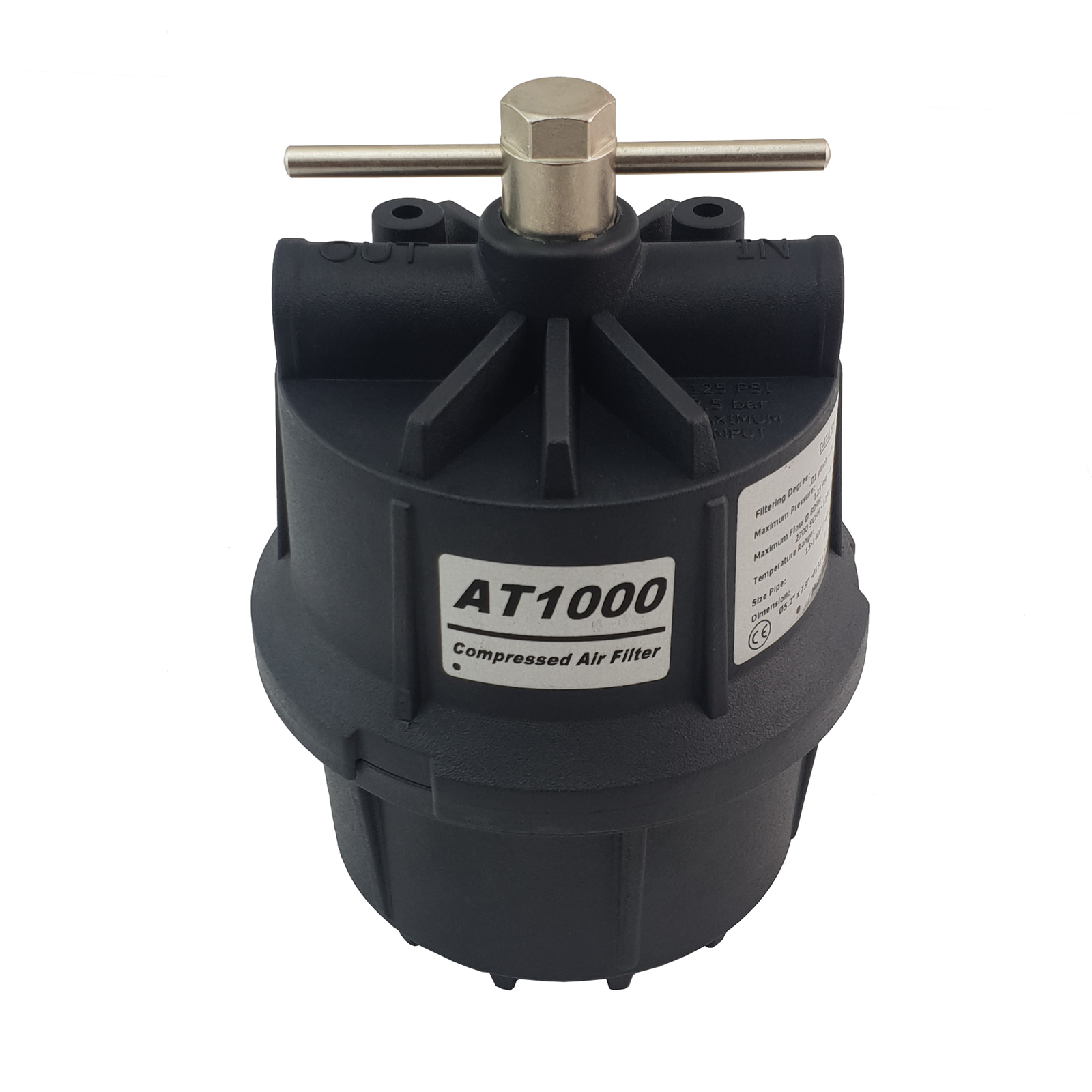

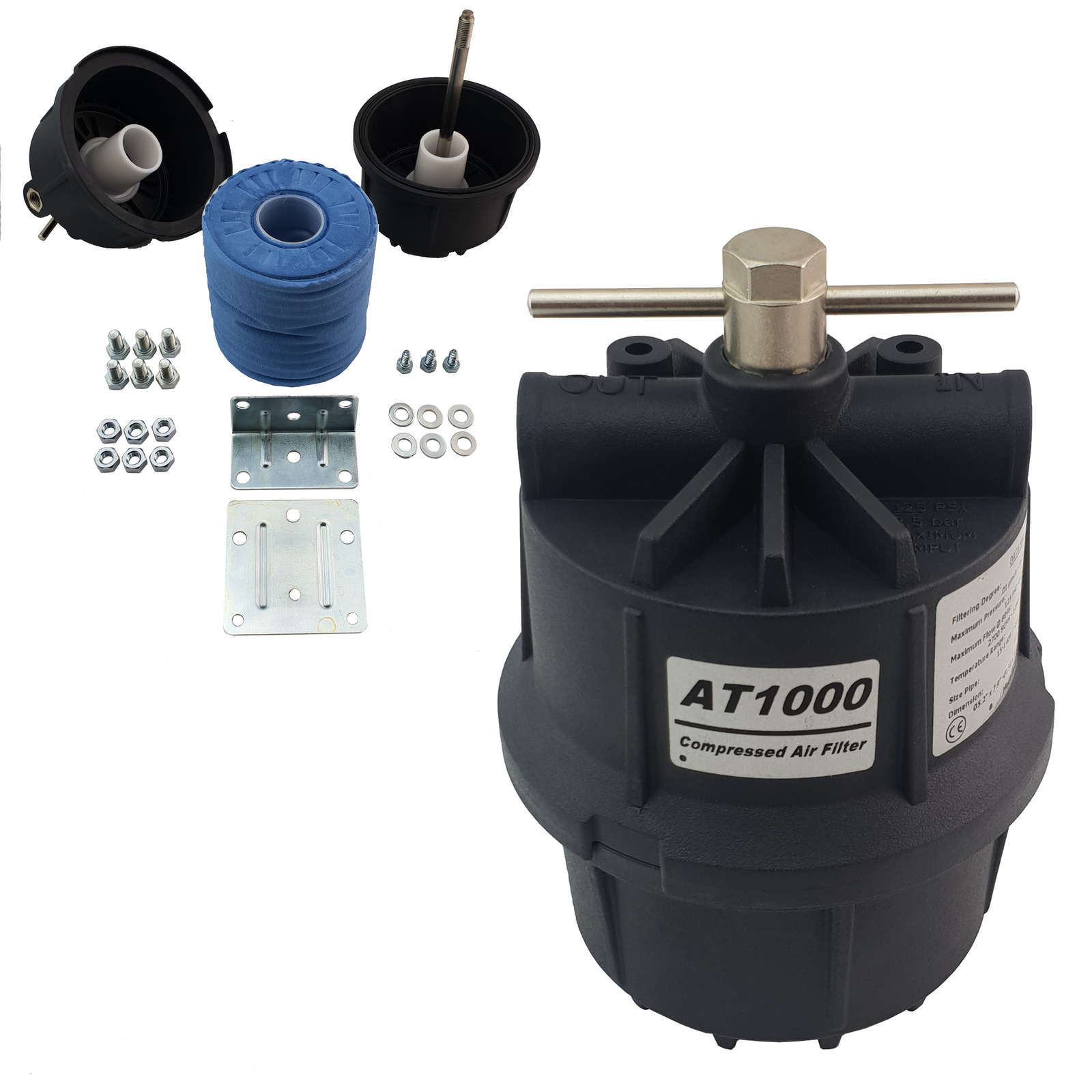

AT1000 Air Filter Key Features:

• Suits paper roll filters
• Single thumb lock
• 1/4" NPT thread
• 125psi (8.5 bar) maximum pressure (Do not over tighten the O ring)
• 0.01 micron filtration
• 132mm diameter x 200mm high canister
• 1250l/min. maximum flow

** Product comes with a nationally recognised 5 Year warranty through any UNIMIG Dealer **
