Allclear MA100 Welding And Grinding Fume Extraction 240v - 91100MA1

The Allclear MA100 is a durable welding and grinding fume extraction unit equipped with a 3-metre arm. It is one of the most compact and economical products of the Allclear fume extraction system series. Mounted on casters for greater mobility, the Allclear MA100 has cleanable filters and an impact plate above the filter to reduce the risk of burnout and increase the life of the filters.

Incorporating technology such as:

• Cleanable cartridge filter
• High extraction performance
• Ideal filtration rate
• Available options include:
• HEPA filter (Optional extra)
• Carbon filter (Optional extra Conects to outside of machine)

Features Include:

• Compact design
• Comes standard with F9 Cartridge
• Takes up little space in the work area and allows for easy mobility.
• Ergonomic design
• This allows the user to access all functions.
• Unique mechanism
• Comes with filter
• The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm.

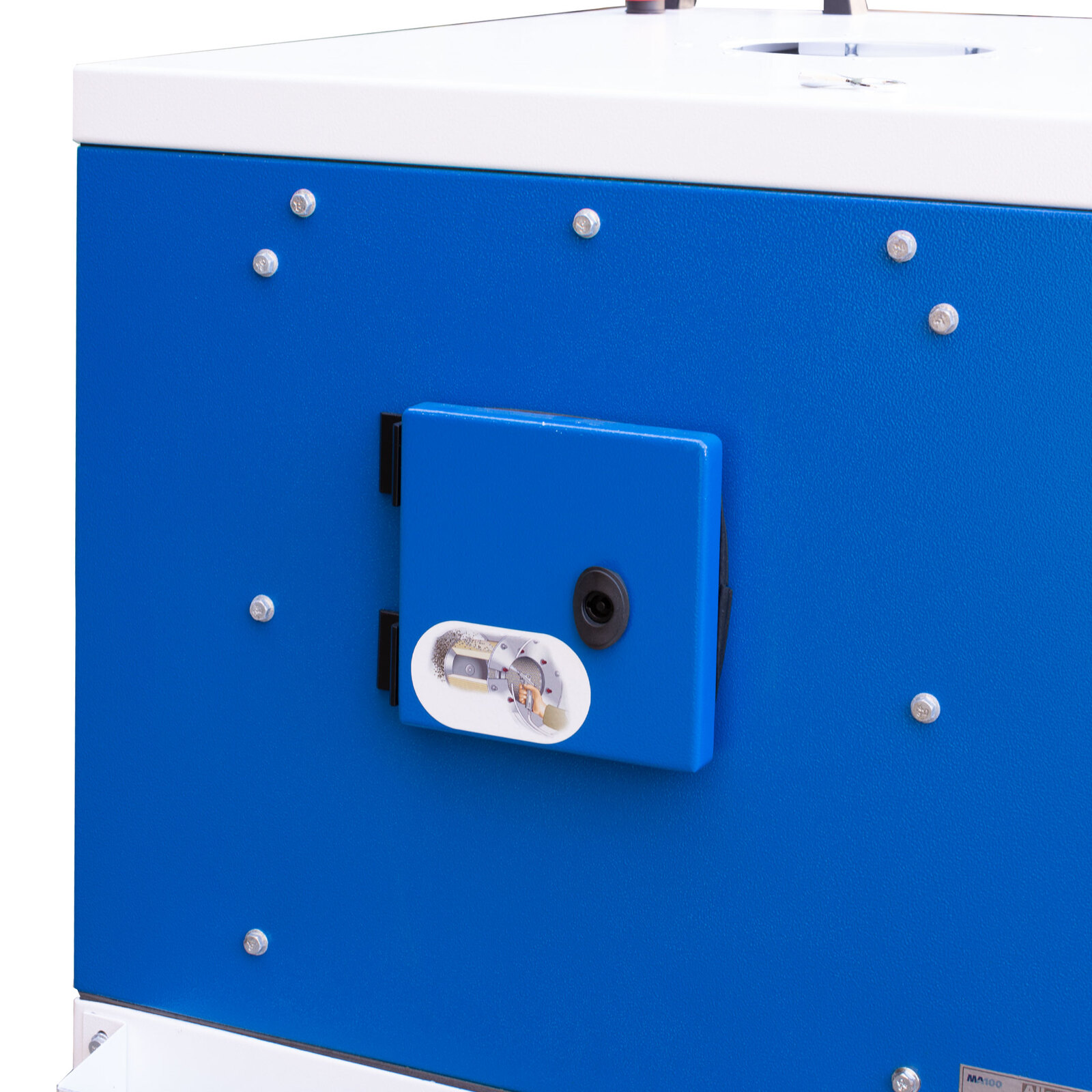

• Filter cleaning door
• provides easy and safe access to the cartridge filter.

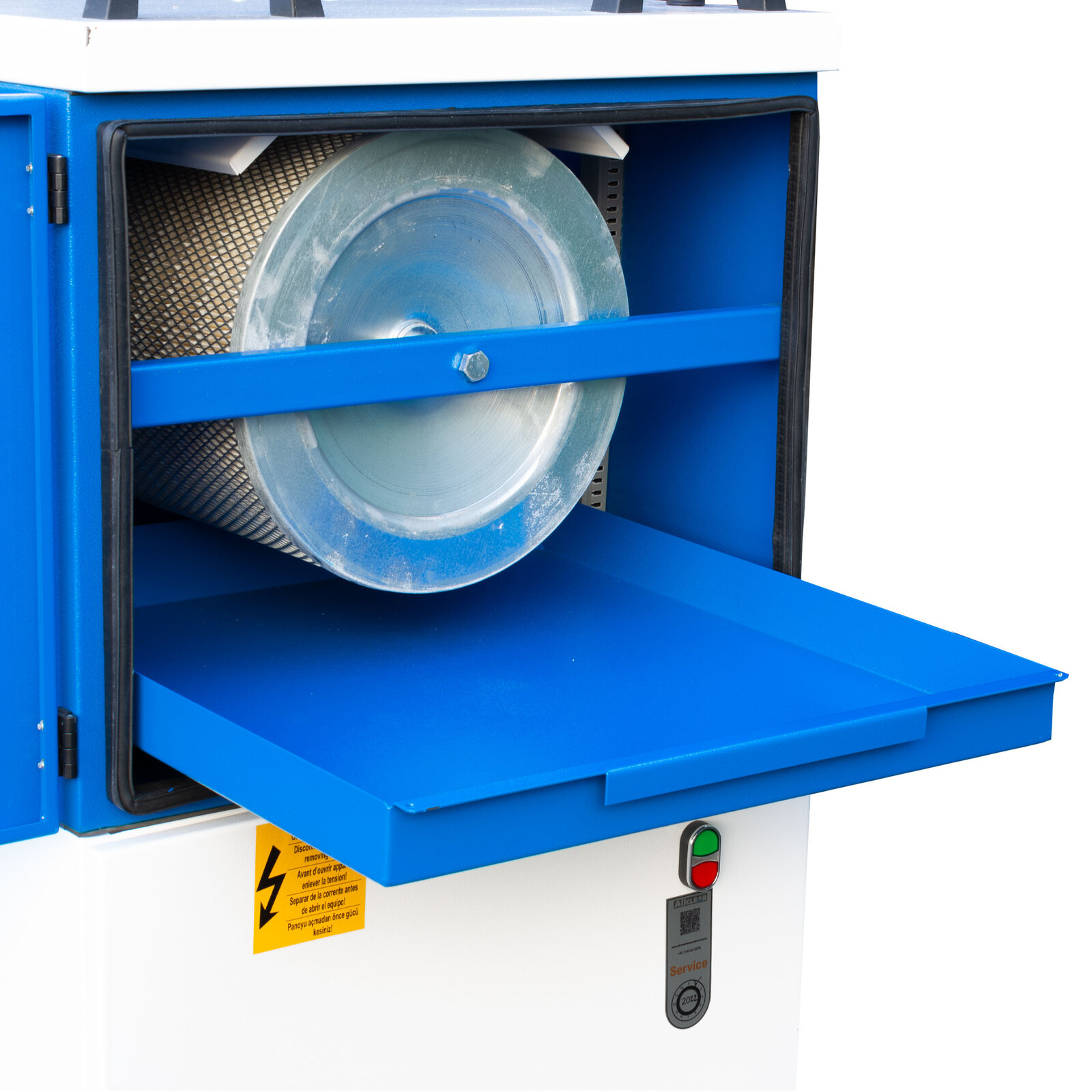

• Cartridge filter
• 14.5m² surface and nanofiber structure provide very high filtration efficiency and long life.

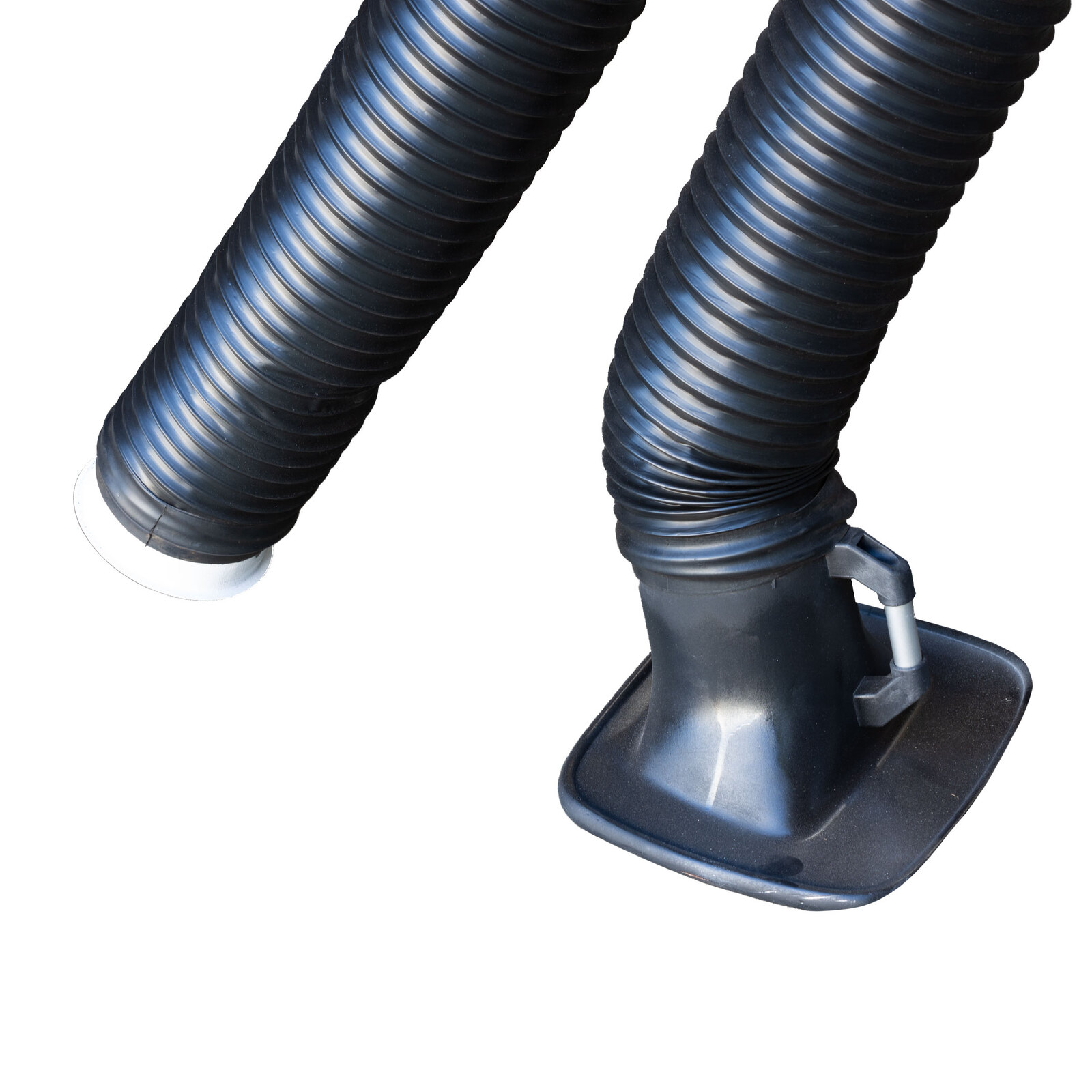

• Suction hood
• catches the particles with its large structure which is lightweight and durable.
• Unique patented dust collection system
• Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.
• Part Number: 91100MA1
• UNIMIG Equivalent Part Number KSJ0.7S

Filters:

• F9 Cartridge Filter (Part Number 91990116)
• Hepa H13 Cartridge Filter (Part Number 91990118)
• Carbon Filter (Part Number 9199012)
• It is recommended to blow out the filters with compressed air every week.
• Replace filters every 3 to 12 months. (This is highly dependent on the type of wire being used, the material being welded, and natural ventilation of the workspace)

Machine Specifications:

• Motor size: 1.1kw
• Voltage: 240v
• Motor Power: 1.1kW
• Mains Supply: 220 V / 50Hz
• Maximum Air Flow: 3000m3 per hour
• Air Flow at Suction Point: 1600m3 per hour
• Area of Filter Cartridge: 14.5 m2
• Filter Cleaning: Manual
• Standard Arm Length: 3 metres
• Body: Galvanised Steel
• Fan: Aluminium
• Noise: 74 dBA
• Sound Insulation: Acoustic sponge
• Dimensions mm (L x W x H): 780 x 600 x 1000
• Weight: 100kgs
