Contour Curv-O-Mark / Flange Aligner Magnetic Universal Level - KC-J1904

Part # KC-J1904

WAS $380.00
NOW $342.00
Sale Ends in
23:59 pm, 30 June 2024

AfterPay More info.

Make 4 payments of $85.50 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Express Shipping - $9.50

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Features

  • Valuable Multi-purpose tool for assisting in a range of pipe fitting tasks
  • Adjustable 360DG protractor-dial level allows use in any position
  • Magnetic

Specifications

  • Suits:
    • Aligning / Two-holing flanges
    • Setting a predetermined pitch of a string of pipe
    • Setting the angle of laterals to a precise degree
    • Trueing vertical runs
  • The Level has two cast-in 25-pound magnets (exerting a 50-pound pull) to securely hold the unit in place on any steel surface, including the underside of a pipe or beam
  • Both faces have deep, cast-in grooves that make the Level self-centring on the contour of the pipe.
  • Cast in magnets do not interfere with the use of the Level on non-magnetic materials, such as aluminium, copper, lumber, stone or other materials requiring levelling

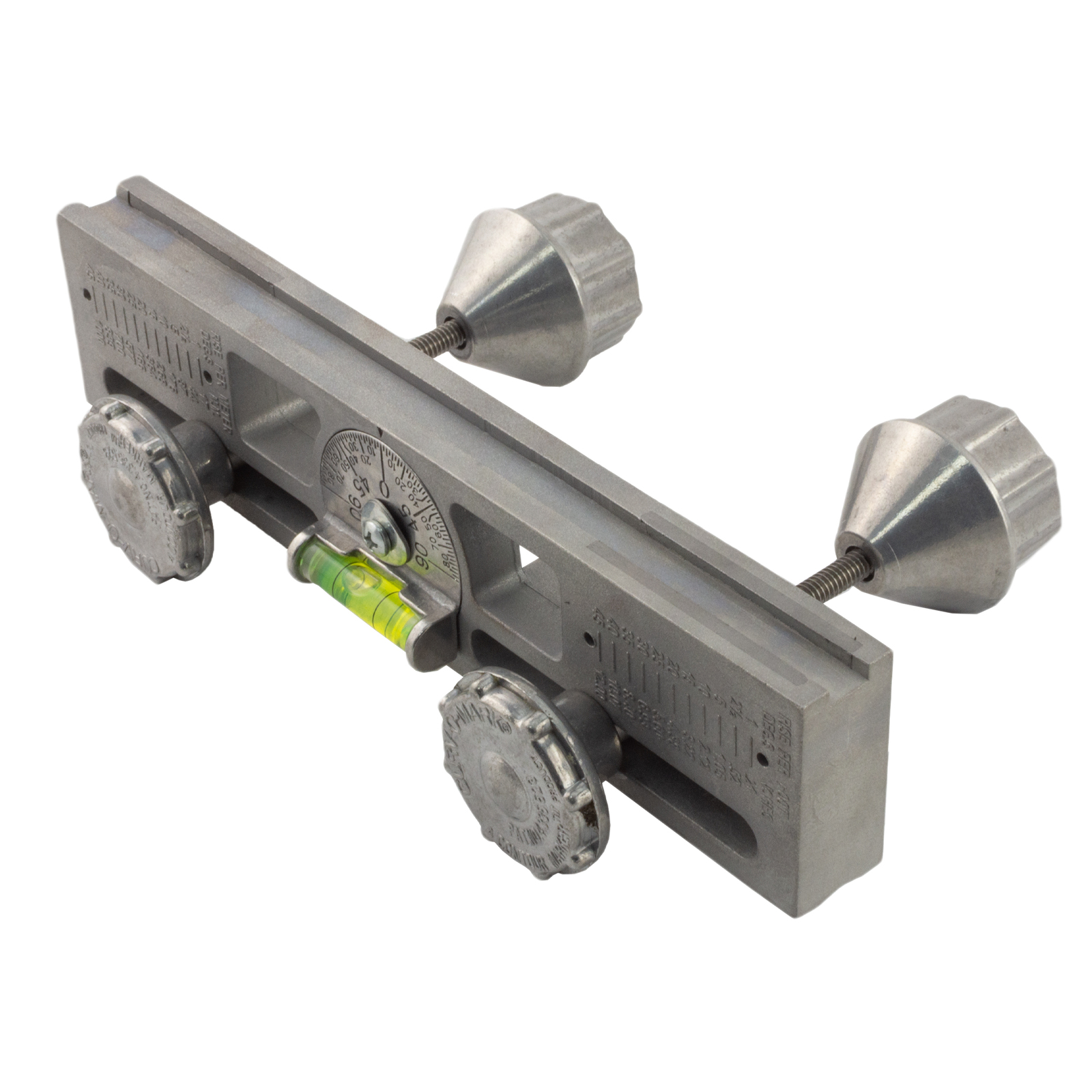

  • For aligning pipe flanges (two-holing), the Level comes with a two-threaded, self-aligning conical spacer and conical nut and bolt units. These are designed to fit any size bolt hole spaced between 2-1/4 in. to 8-in. centres on flanges. This permits the orientation of flange bolt holes for any size pipe.
  • A cast-in table indicates a rise per foot in both inches and meters.

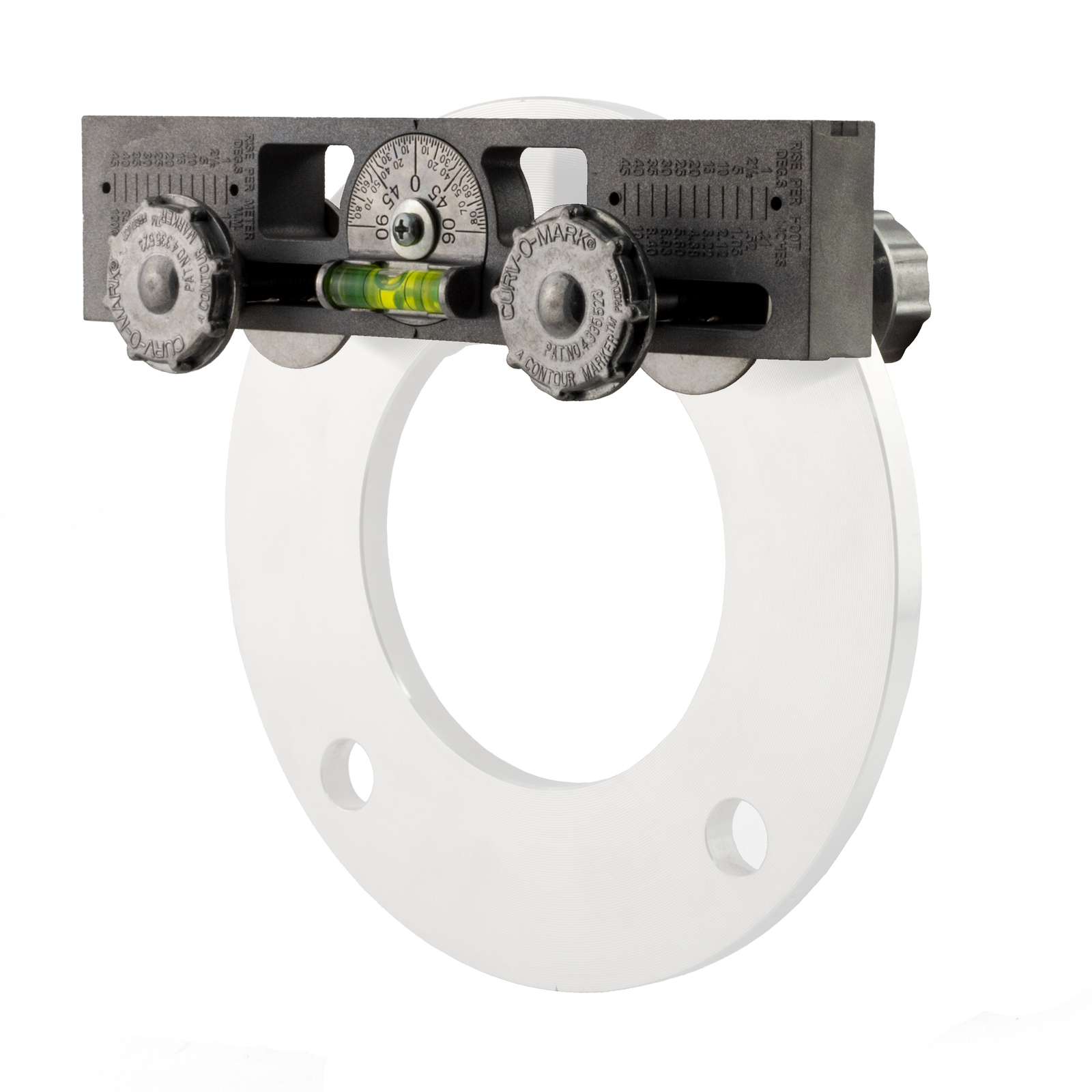

  • Two-holing is simplified with the Universal Level. Self-aligning spacer bolt units are attached in the two adjacent bolt holes at the top or bottom of the flange. With the DSL dial set at O degrees, the flange is rotated until the bubble is centred. If the adjacent top or bottom holes cannot be used, two-holing can be achieved using side bolt holes. In this instance, the DSL dial is set at 90 degrees and the flange is rotated until the bubble is centred. Bolt holes that are offset can be matched by setting the DSL at the desired offset angle prior to rotating the flange.

(KC-J1904)

SKU KC-J1904
Barcode # 024886074368
Brand Curv-O-Mark
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Be The First To Review This Product!

Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

1 x Flange Aligner
