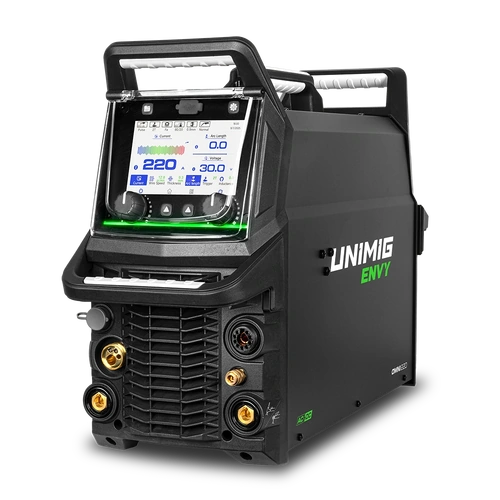

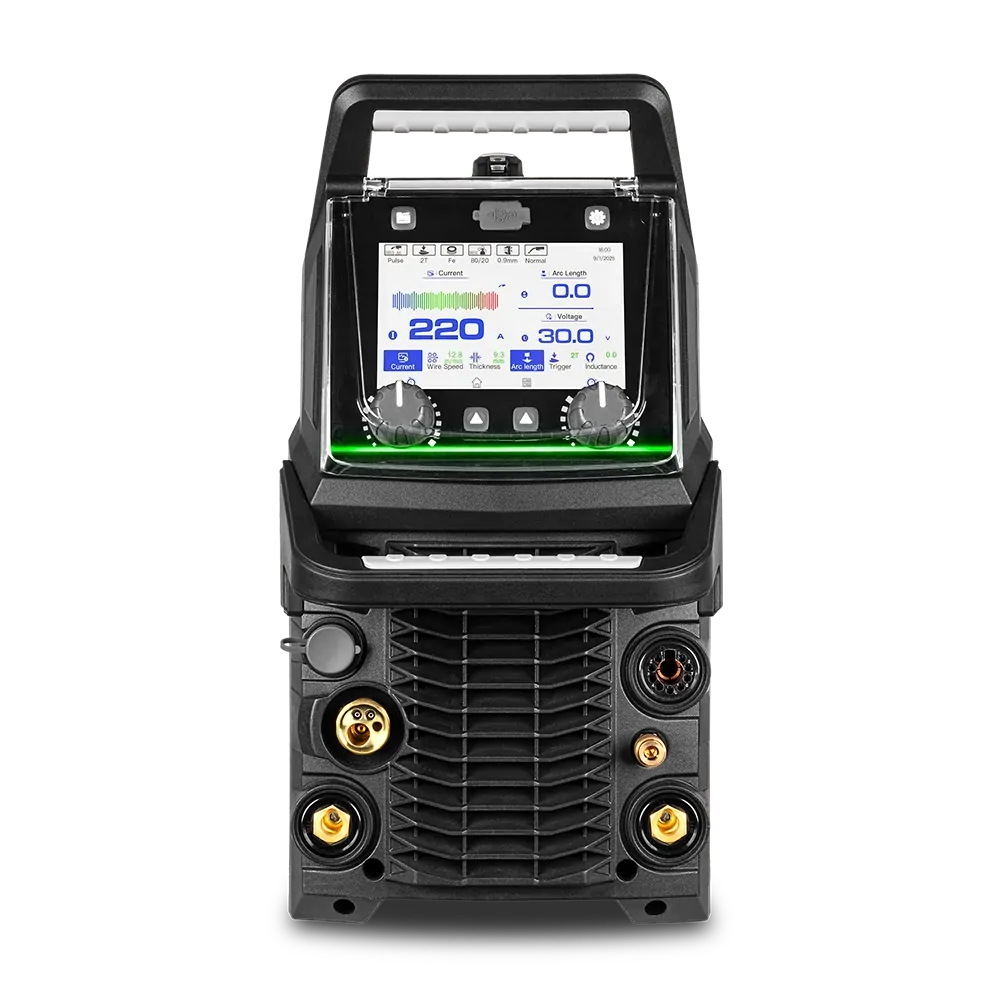

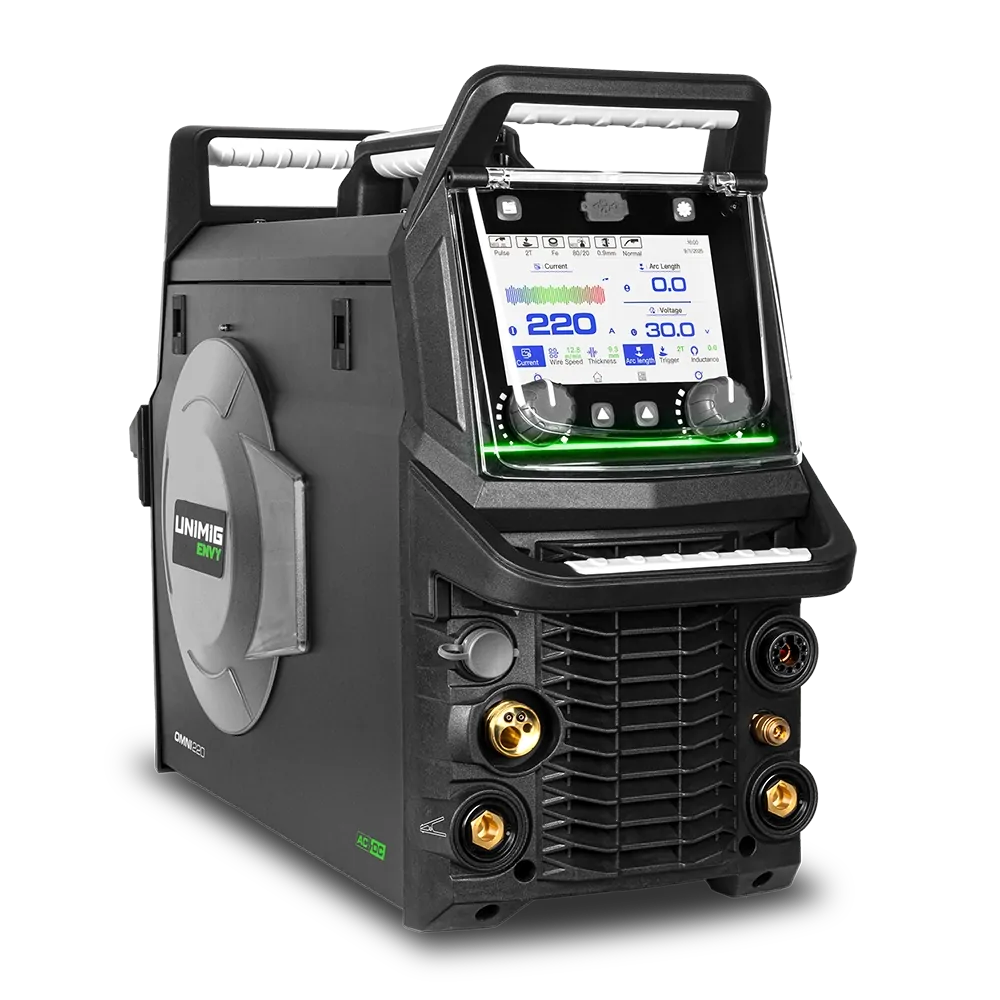

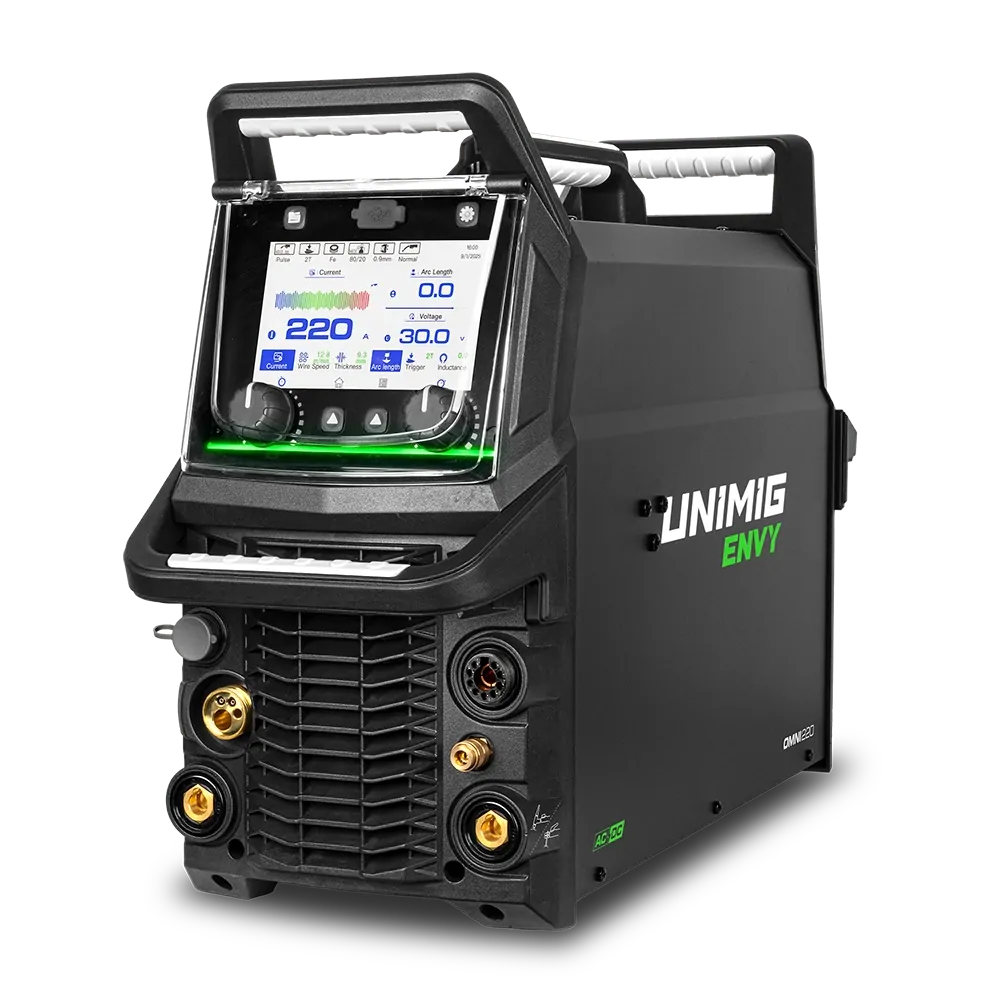

UNIMIG ENVY OMNI 220 AC/DC Welder U11596

The UNIMIG ENVY OMNI 220 AC/DC is UNIMIG's flagship all-in-one welding system, combining MIG, AC/DC TIG, Stick (MMA), and Plasma Cutting into one powerful machine. Designed for professional fabricators, workshops, aluminium specialists, and advanced welders, it delivers exceptional performance with intelligent synergic controls, automatic polarity switching, advanced pulse technology, and a premium digital interface.

Whether you're welding mild steel, stainless steel, aluminium, copper or cutting plate up to 25mm, the ENVY OMNI 220 provides outstanding precision, productivity, and versatility from a single 240V machine. It includes Smart-Set technology, digital torch control, AC/DC waveform adjustment, high-frequency TIG ignition, pilot arc plasma cutting, and compatibility with water coolers and push-pull guns for demanding industrial applications.

A true all-in-one machine delivering MIG, AC/DC TIG, MMA and plasma cutting from a single platform.

• Single and double pulse MIG programs & high-frequency AC & DC TIG
• MIG & TIG Smart-Set weld modes for complete synergic setups
• Fast, clean cutting with pilot arc start & a 25mm cutting capacity

Key Features:

• 5-in-1 Multi-Process Machine
• MIG
• AC TIG
• DC TIG
• MMA (Stick)
• Plasma Cutter
• Operates on 240V Single Phase
• AC/DC High Frequency TIG for aluminium and all common weldable metals
• Single & Double Pulse MIG for cleaner welds with reduced distortion
• MIG & TIG Smart-Set Synergic Programs

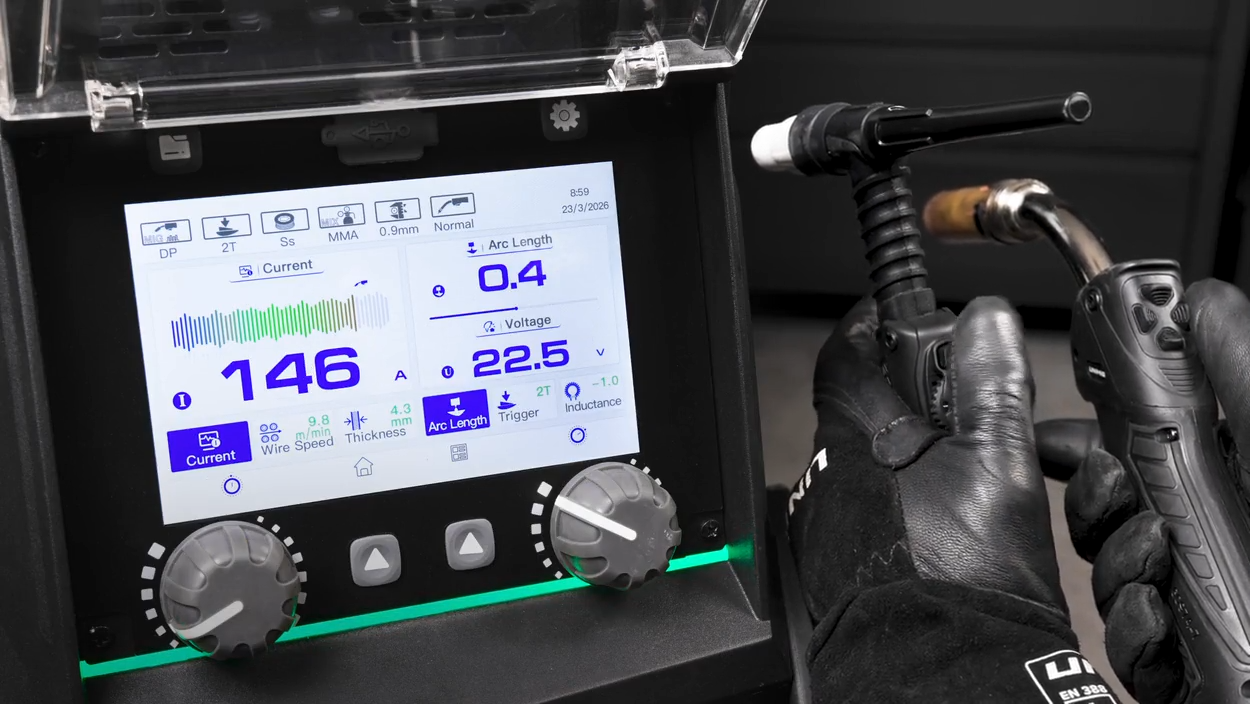

• 7" Digital LCD Touchscreen
• Automatic Polarity Switching

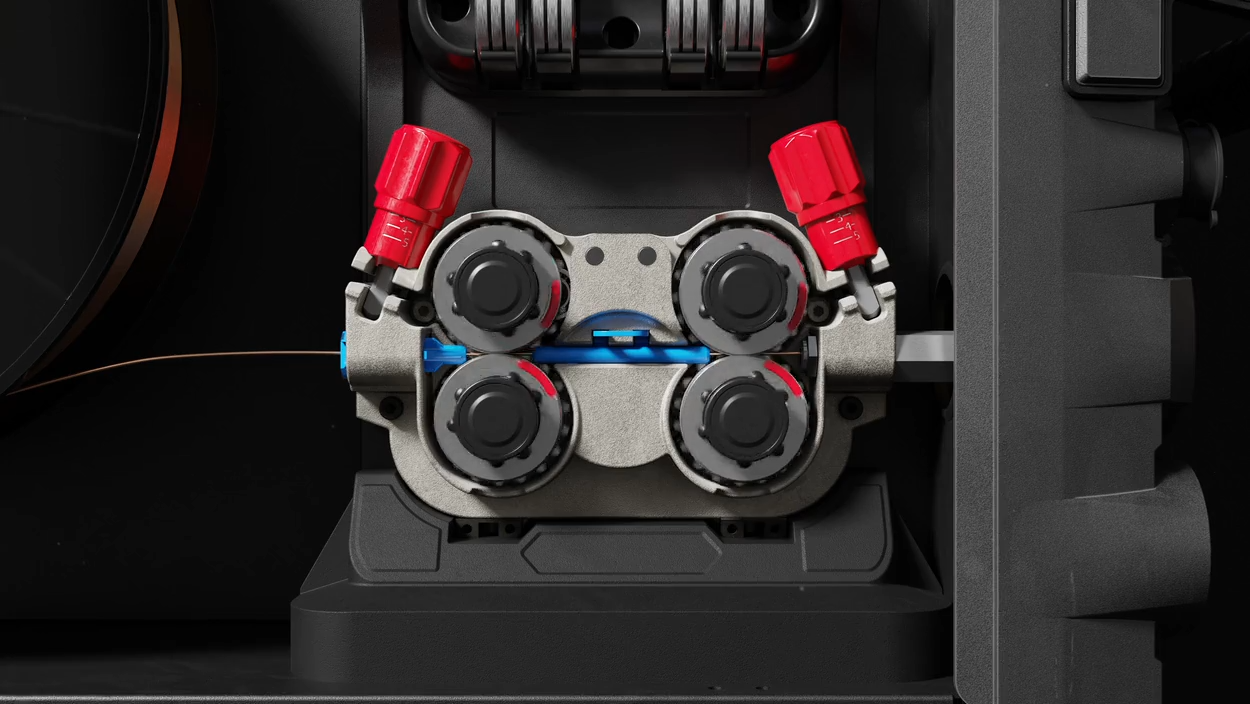

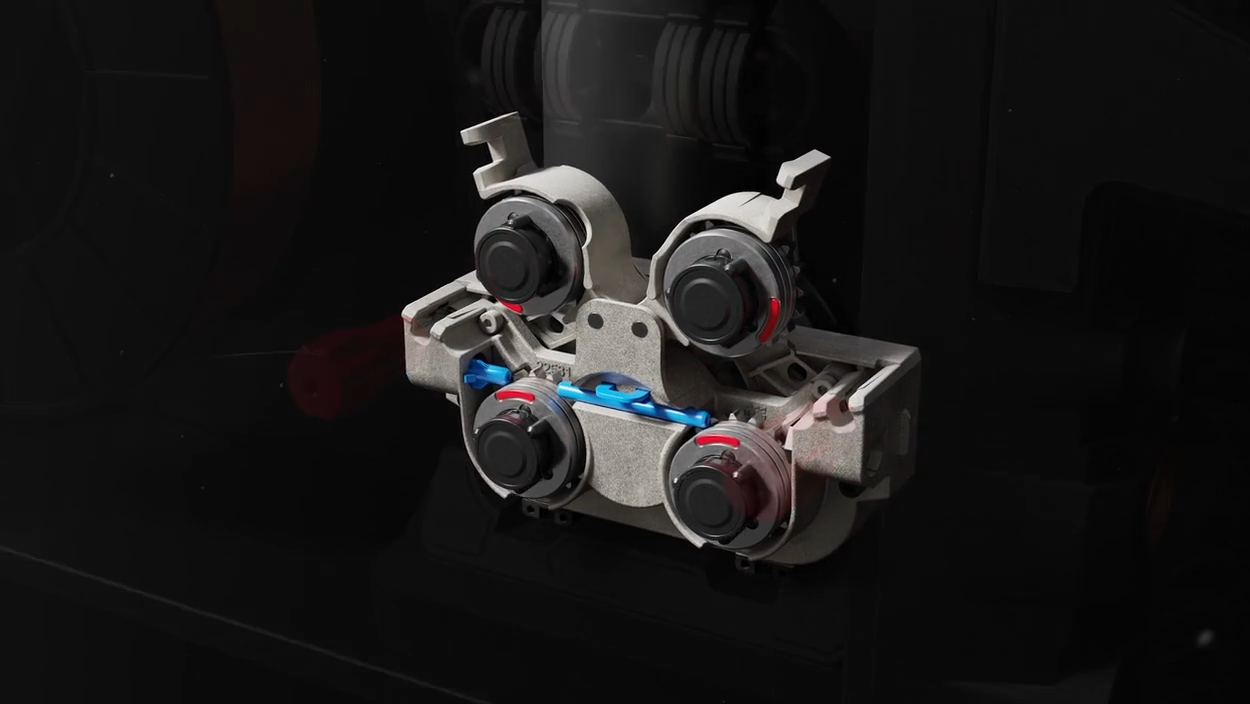

• Digital 4-Roll Wire Feed System
• Pilot Arc Plasma Cutting
• Clean cutting up to 20mm steel
• Maximum severance cut up to 25mm
• Accepts D200 (5kg) and D300 (15kg) wire spools
• Compatible with Push-Pull Gun
• Water Cooler Ready
• Foot Pedal Compatible

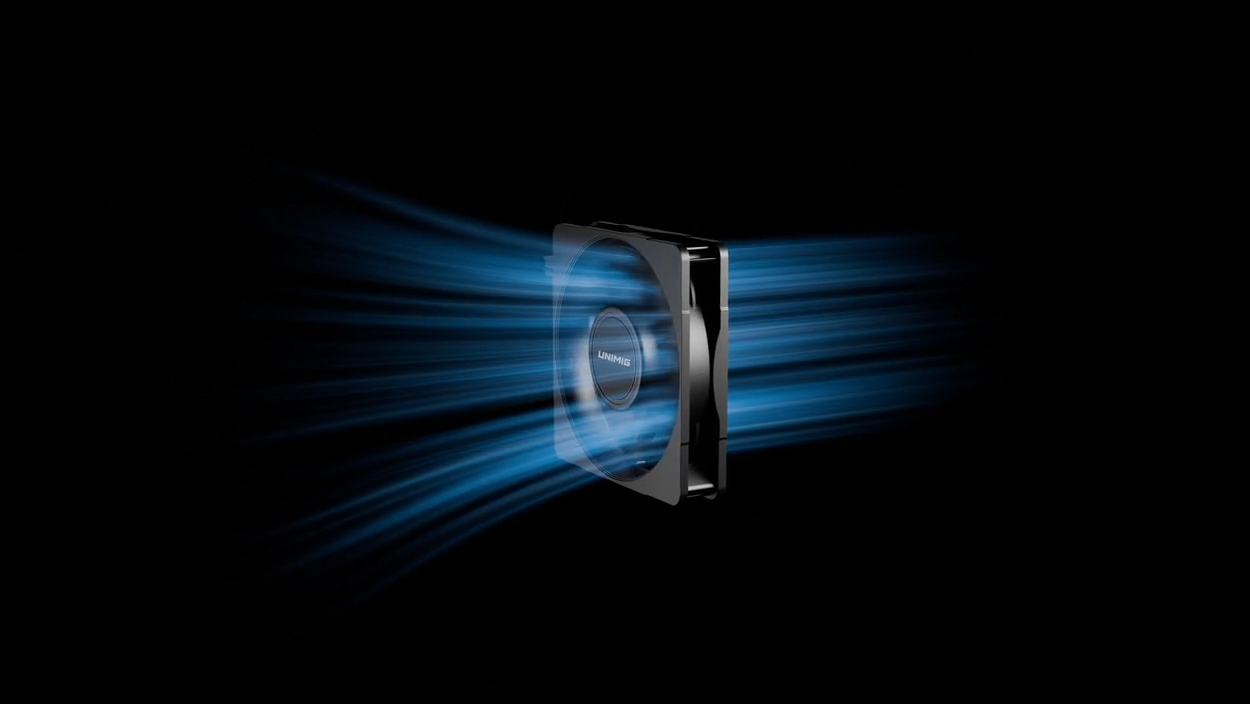

• Smart Fan Technology
• Advanced AC/DC Waveform Control

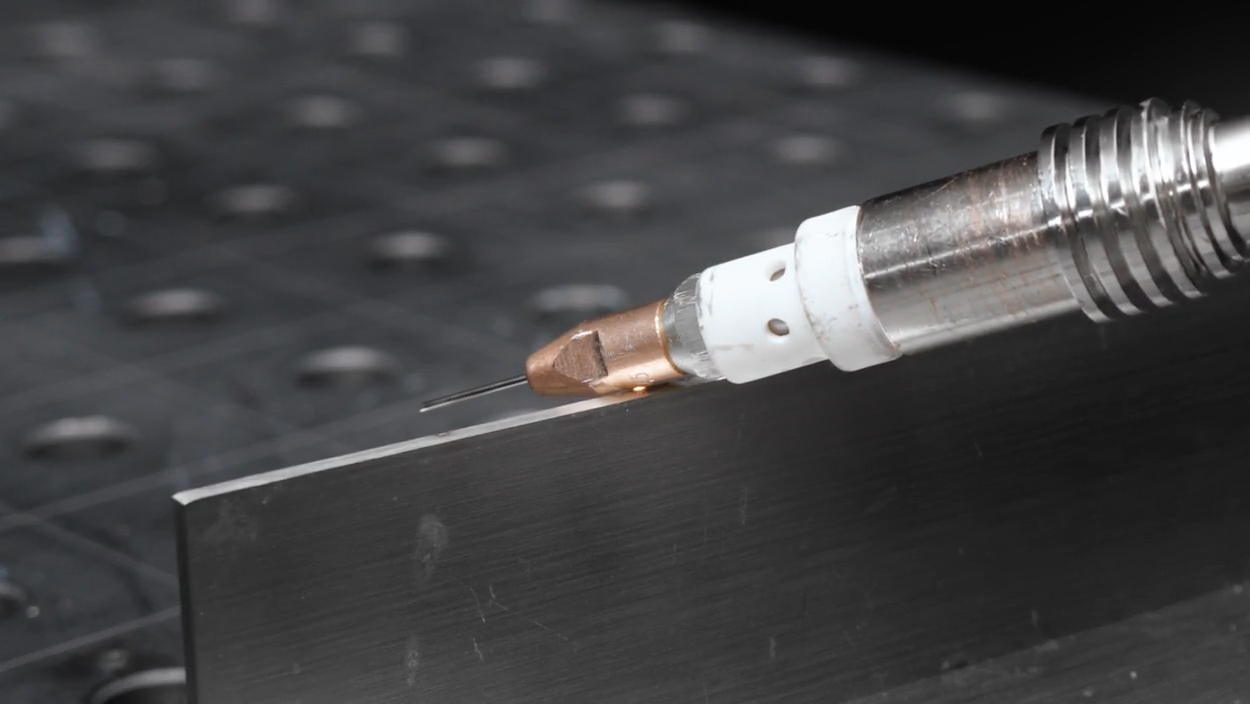

• Line Resistance Detection
• 5-Year UNIMIG Warranty (machine)

Machine Specifications:

• Model: U11596
• Input Voltage: 240V Single Phase
• Plug: 15A
• Generator Requirement: 10kVA Minimum
• Protection Class: IP21S
• Warranty: 5 Years

MIG Specifications:

• Current Range: 25–220A
• Wire Size: 0.6–1.2mm
• Wire Spools:
• D200 (5kg)
• D300 (15kg)
• Material Thickness: 1–10mm

TIG Specifications:

• Current Range: 5–220A
• Ignition: High Frequency AC/DC
• Material Thickness: 1–10mm

MMA Specifications:

• Current Range: 10–200A
• Electrode Size: 2.5–4.0mm
• Material Thickness: 2–12mm

Plasma Specifications:

• Output: 20–40A
• Mild Steel Clean Cut: 20mm
• Mild Steel Severance: 25mm
• Stainless Steel: 18mm
• Aluminium: 14mm
• Copper: 8mm

Size and Weight:

• Weight: 33.5kg
• Dimensions: 820 × 275 × 520mm

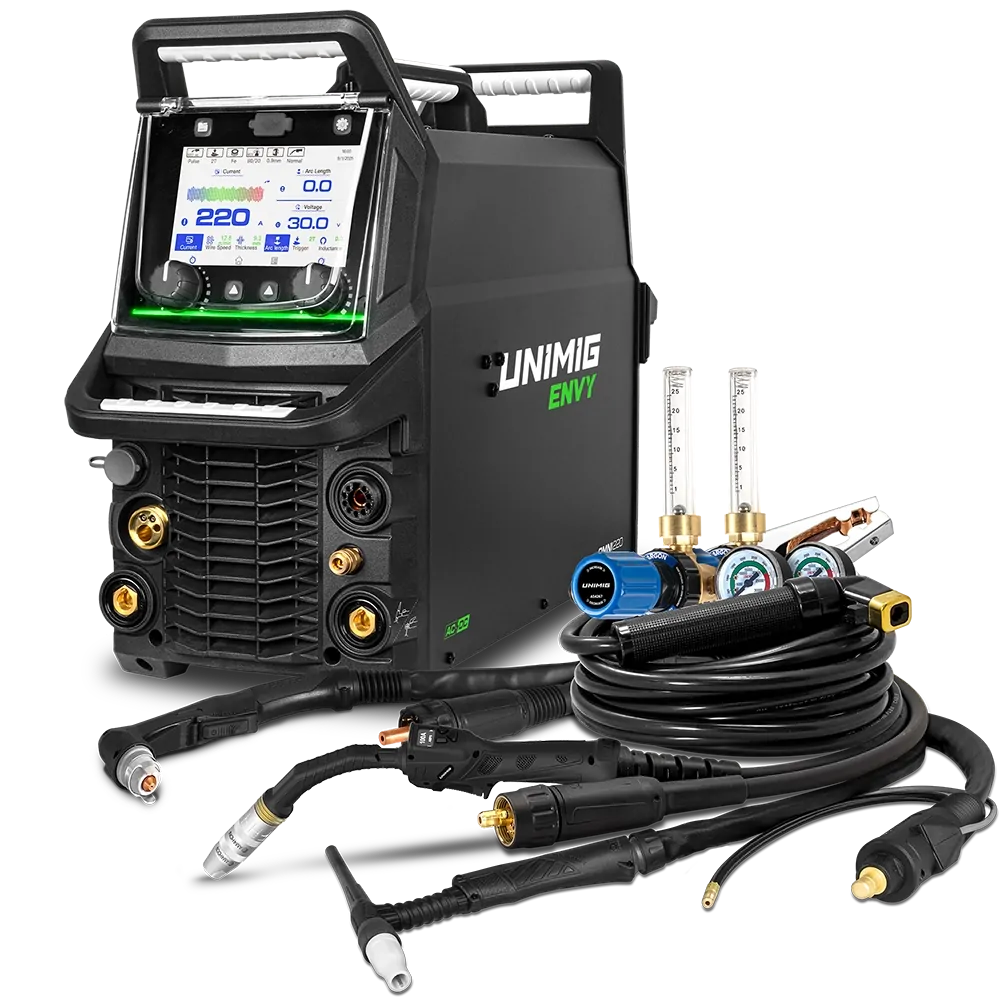

The ENVY OMNI 220 AC/DC Welder includes:

• ENVY OMNI 220 AC/DC Welder
• 3m M26 Digital MIG Torch
• 4m T2 TIG Torch
• 6m SC80 Plasma Torch
• 4m Twist Lock Electrode Holder
• 4m 300 Amp Earth Clamp & Lead
• 2 x Dual Stage Argon Flowmeters
• 2 x 1.8m Quick-Connect Gas Hoses
• Operating Manual
• 4 x 0.8-0.9mm V Groove Roller
• 4 x 0.8-0.9mm F Groove Roller
• 4 x 1.0-1.2mm U Groove Roller
