FURICK Jazzy #10 Pyrex TIG Cup - 2 Pack - Made in the USA

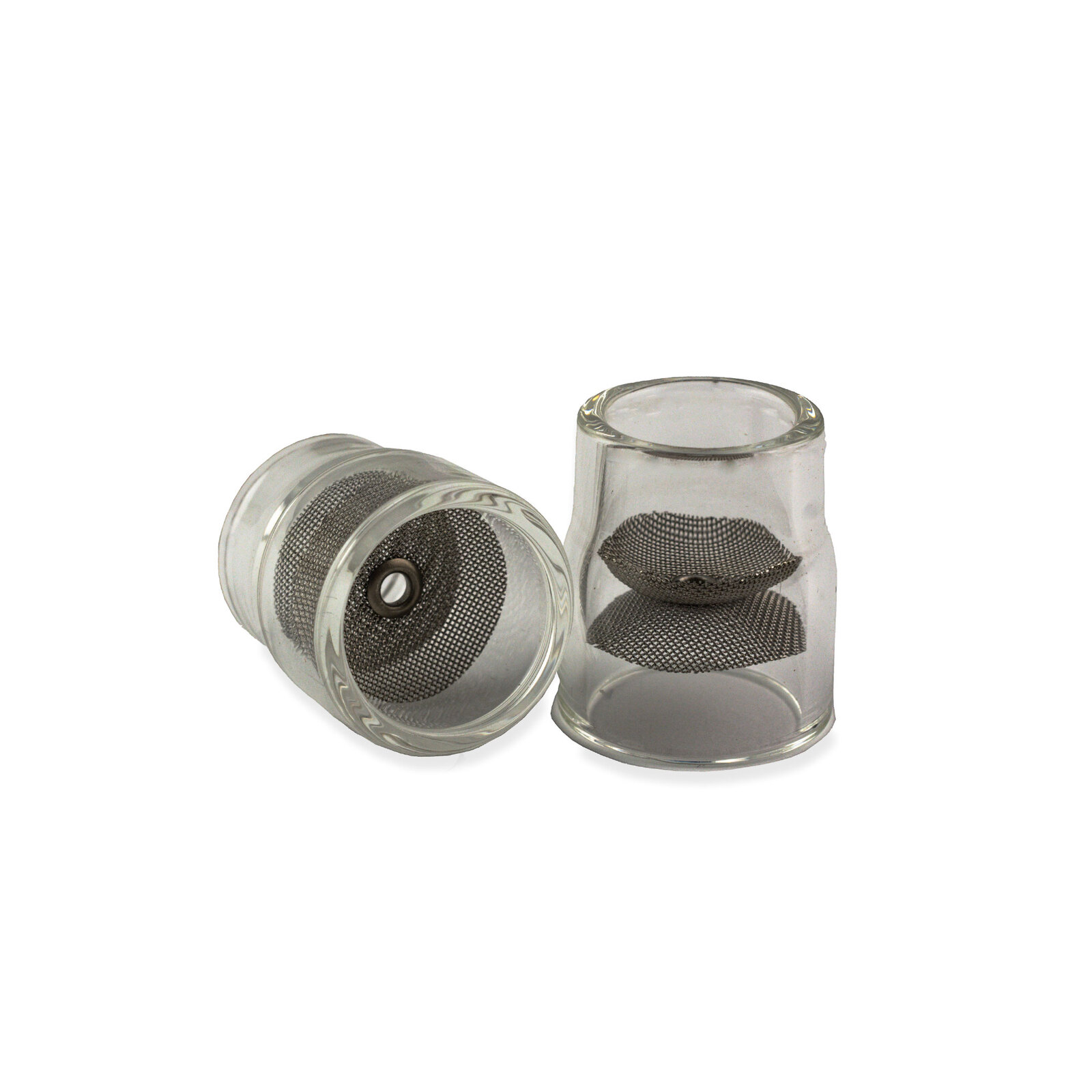

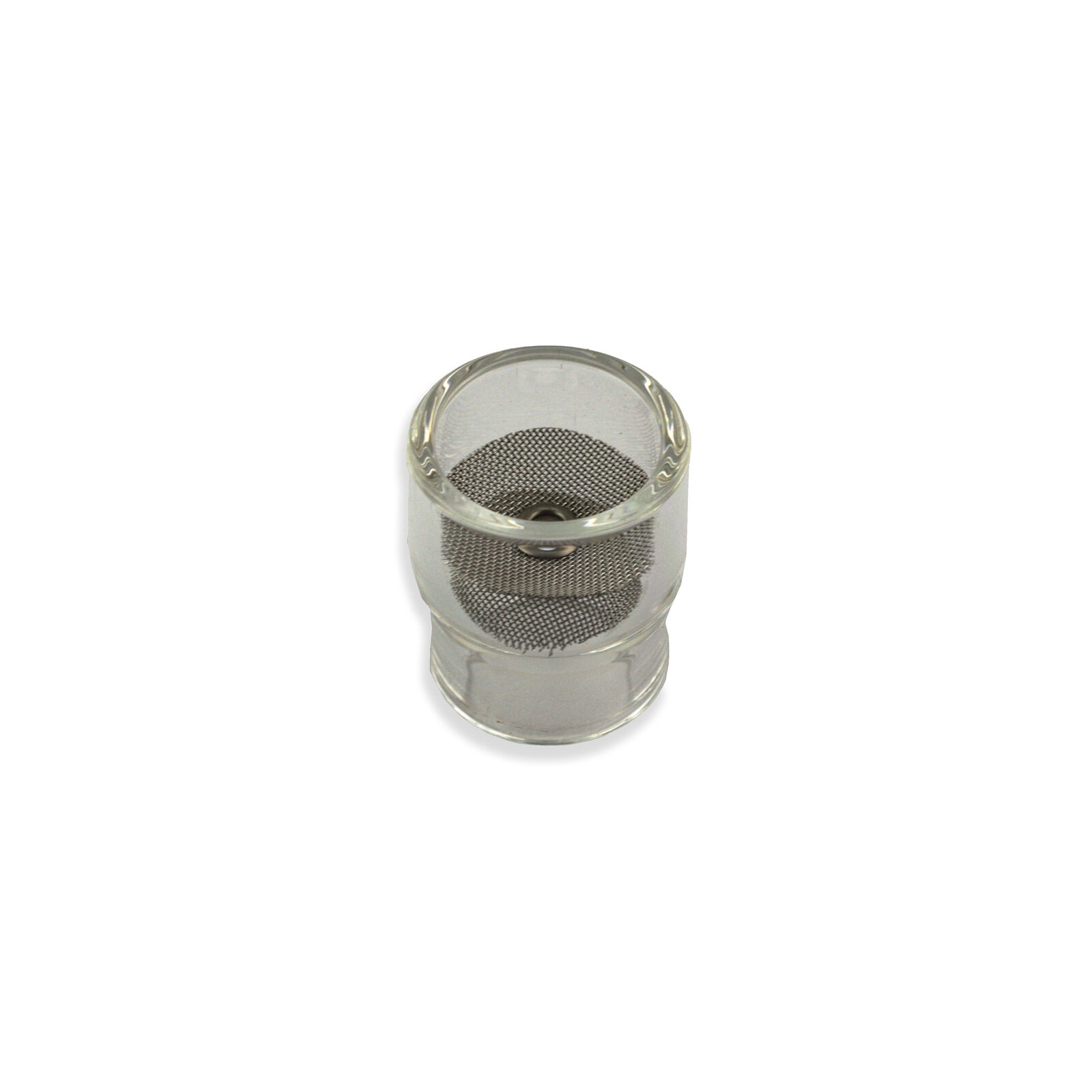

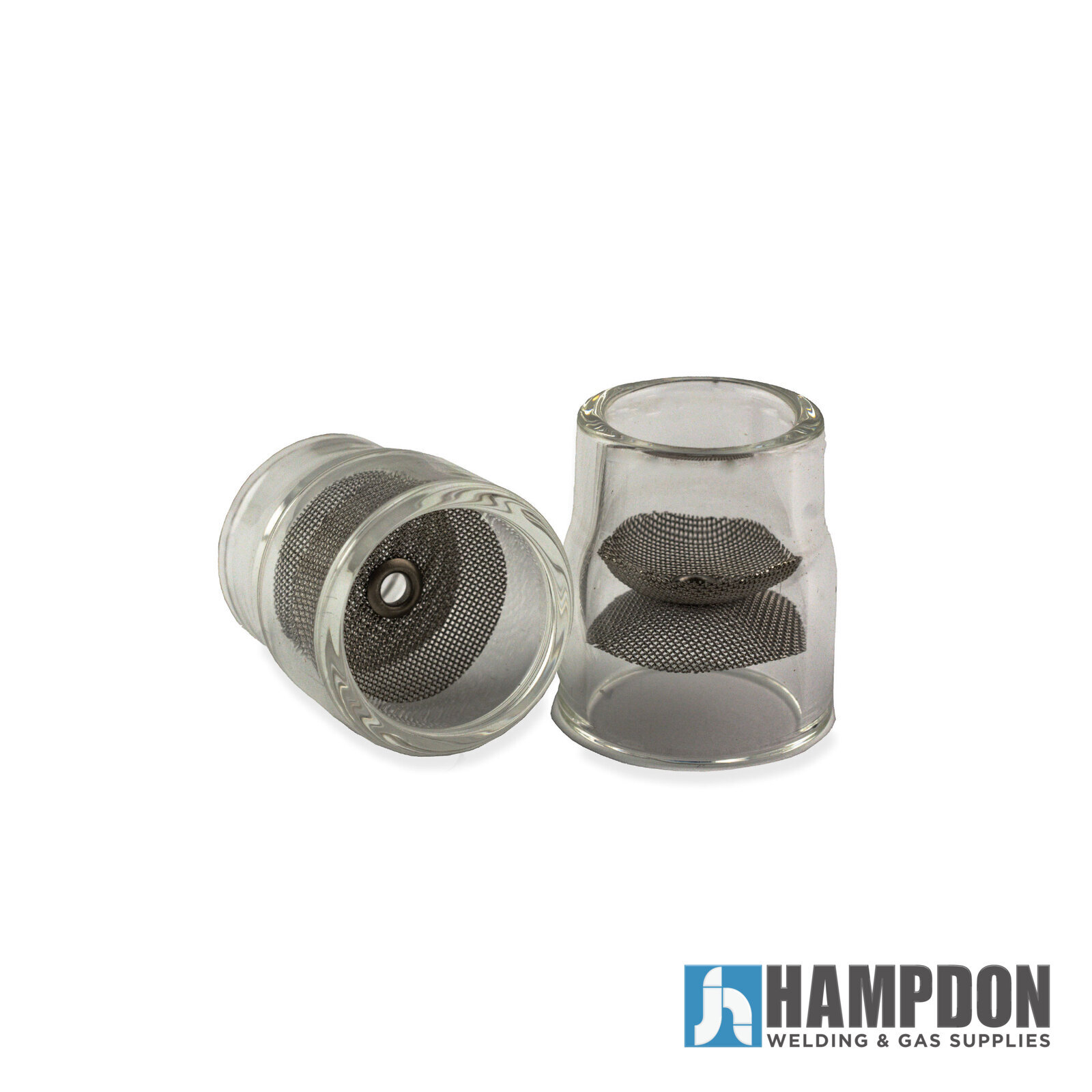

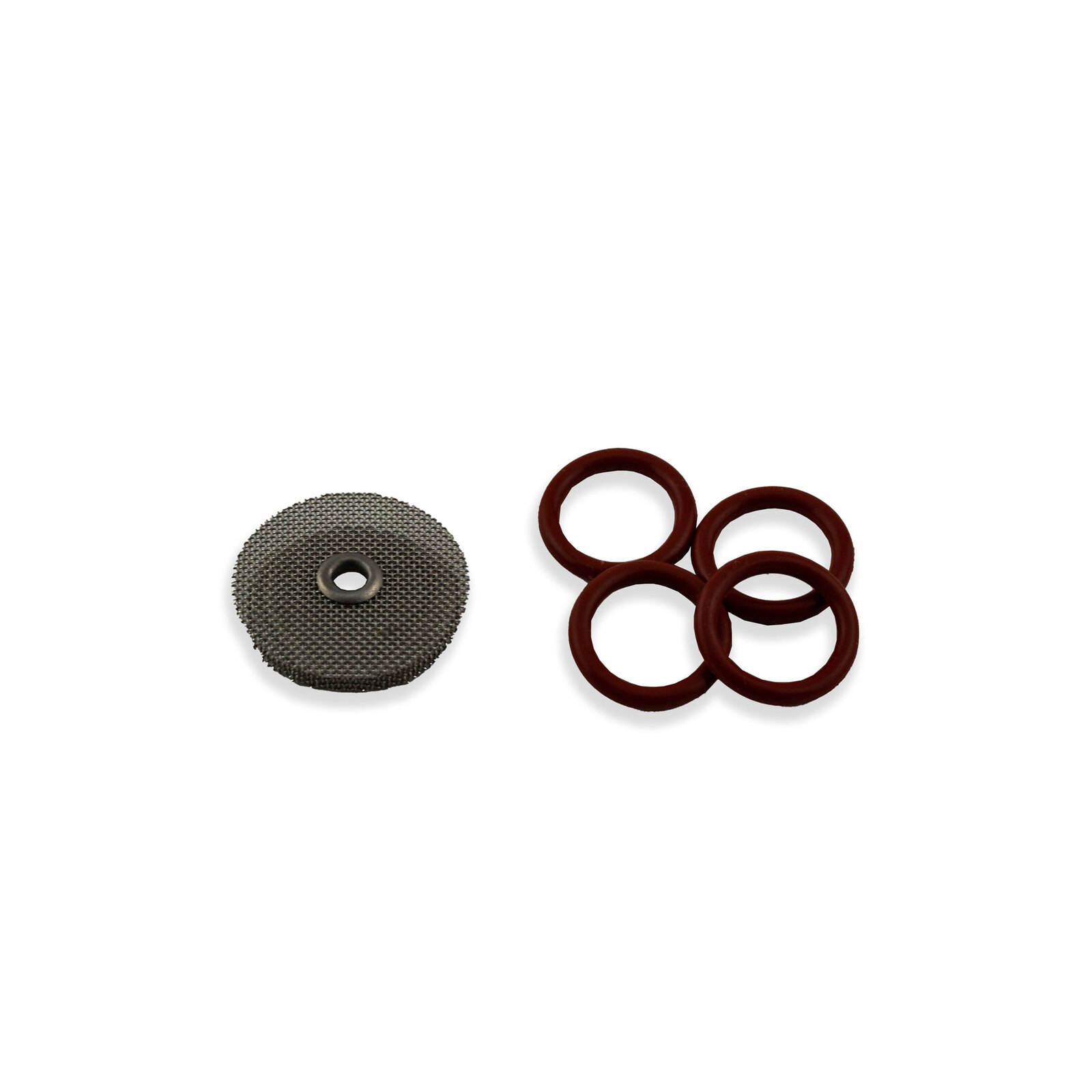

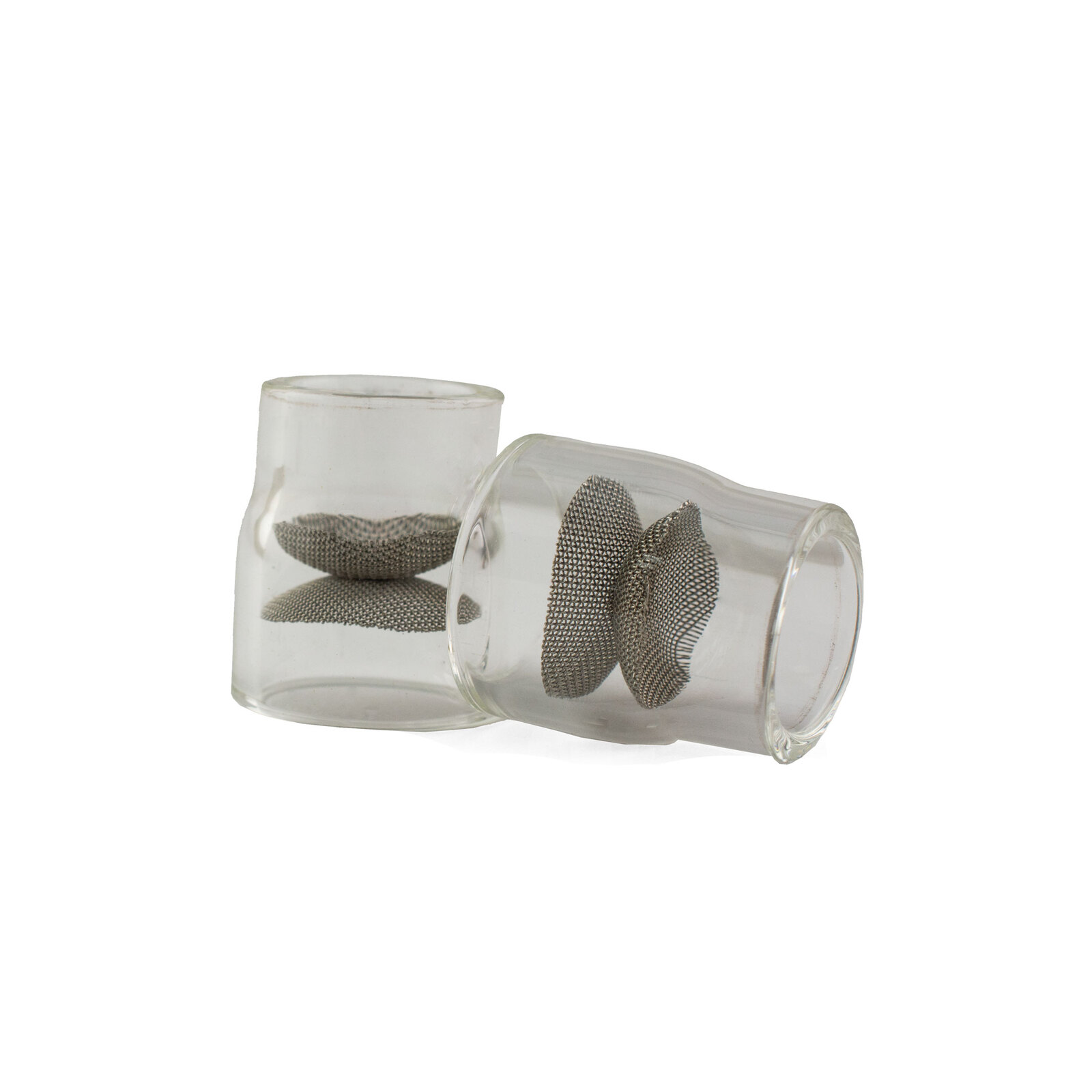

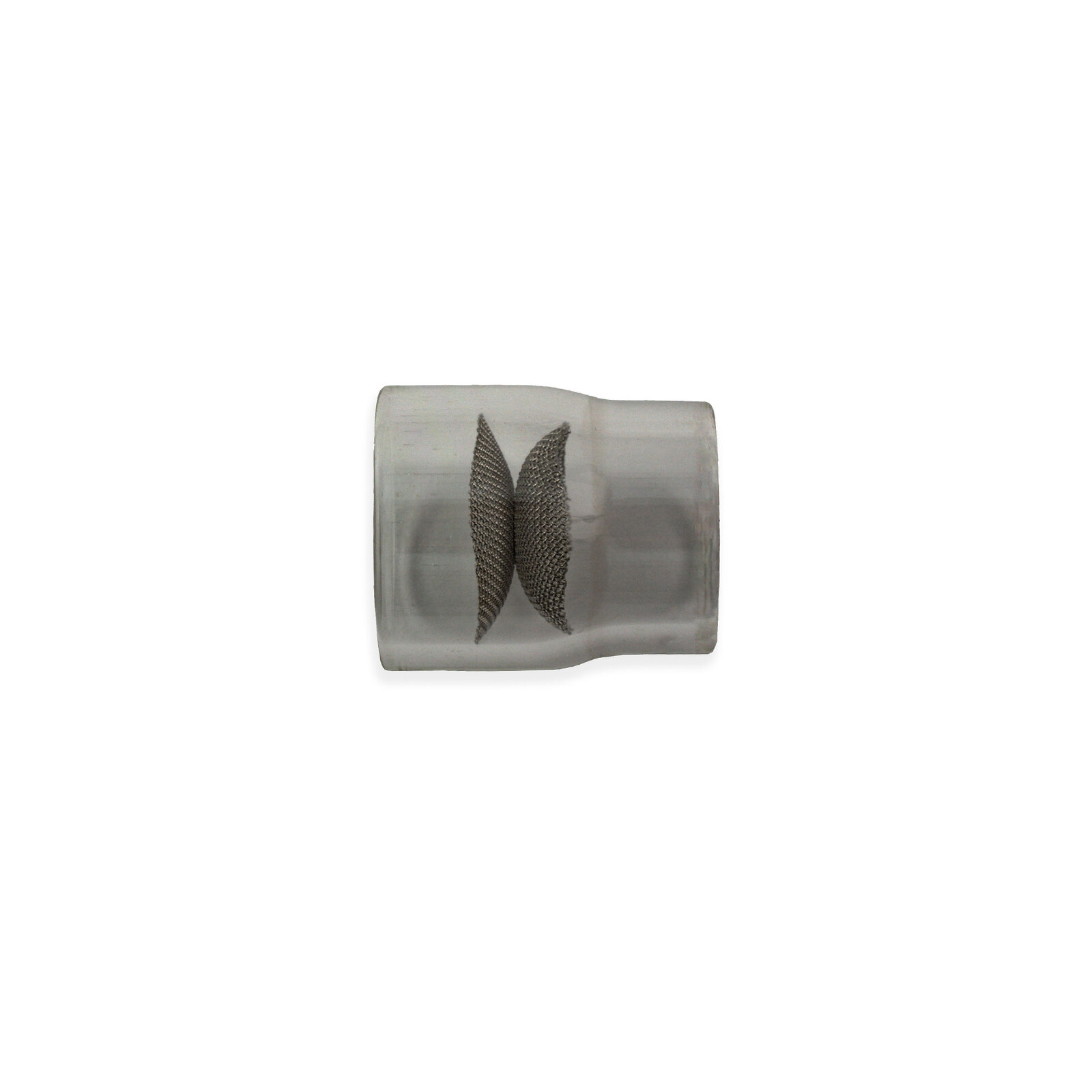

The Jazzy #10 Pyrex Cup includes 2 pyrex cups and a spare diffuser. It performs exceptionally well on mild steel with about 20-25CFH (8-12lpm) using the same patented diffuser design as the FUPA12. This cup will slip on a 45V44 or the Furick gas lens 33217GL / 11617GL. This kit requires Orings.

The Jazzy #10 Pyrex Cup will handle up to 175 amps non-continuance. Recommended for DC-only applications.

Features:

2.8mm Thick Pyrex
2 Each
Made in the USA
Utilizes a second mesh filter for consistent gas coverage over the welding material
For use with a standard 17 / 26 series torch the cup will require a gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
For use with a standard 9 / 20 series torch the cup is compatible with a standard gas lens' (pn: 45V43, 45V44, 45V45)

Dimensions:

Bore ID: 17.2mm
Bore OD: 22.1mm
Length: 25.5mm
Pyrex Thickness: 2.8mm
Gas Lens Mesh Bore: 2.7mm

(J10K)

SKU	J10K
Barcode #	810036840019
Brand	Furick
Shipping Weight	0.1000kg
Shipping Width	0.050m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000375000m3
