FURICK #14 Moose Knuckle Ceramic TIG Cup - 1 Each - MADE IN USA

FURICK #14 Moose Knuckle Ceramic TIG Cup - 1 Each - MK14KOKN - Made in the USA

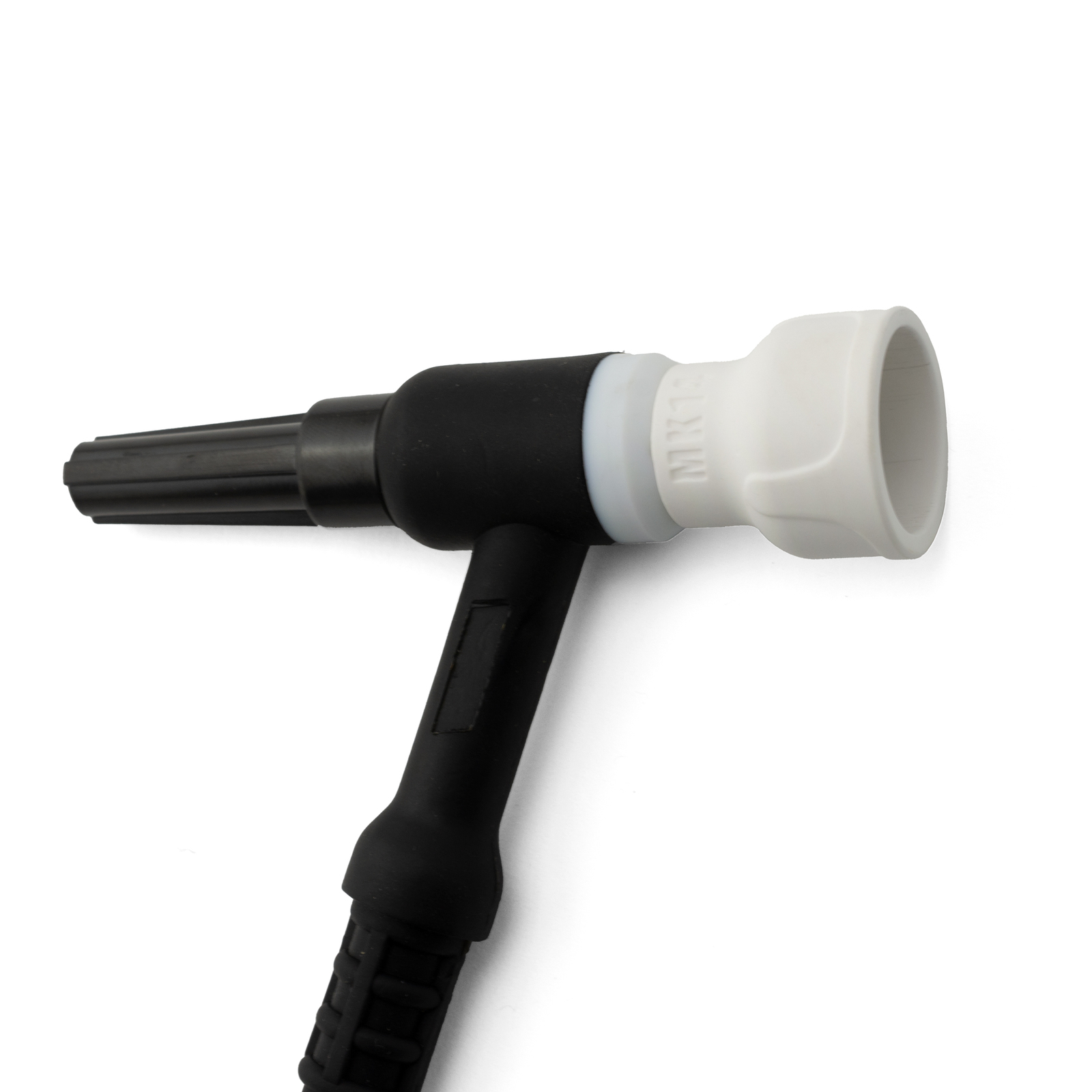

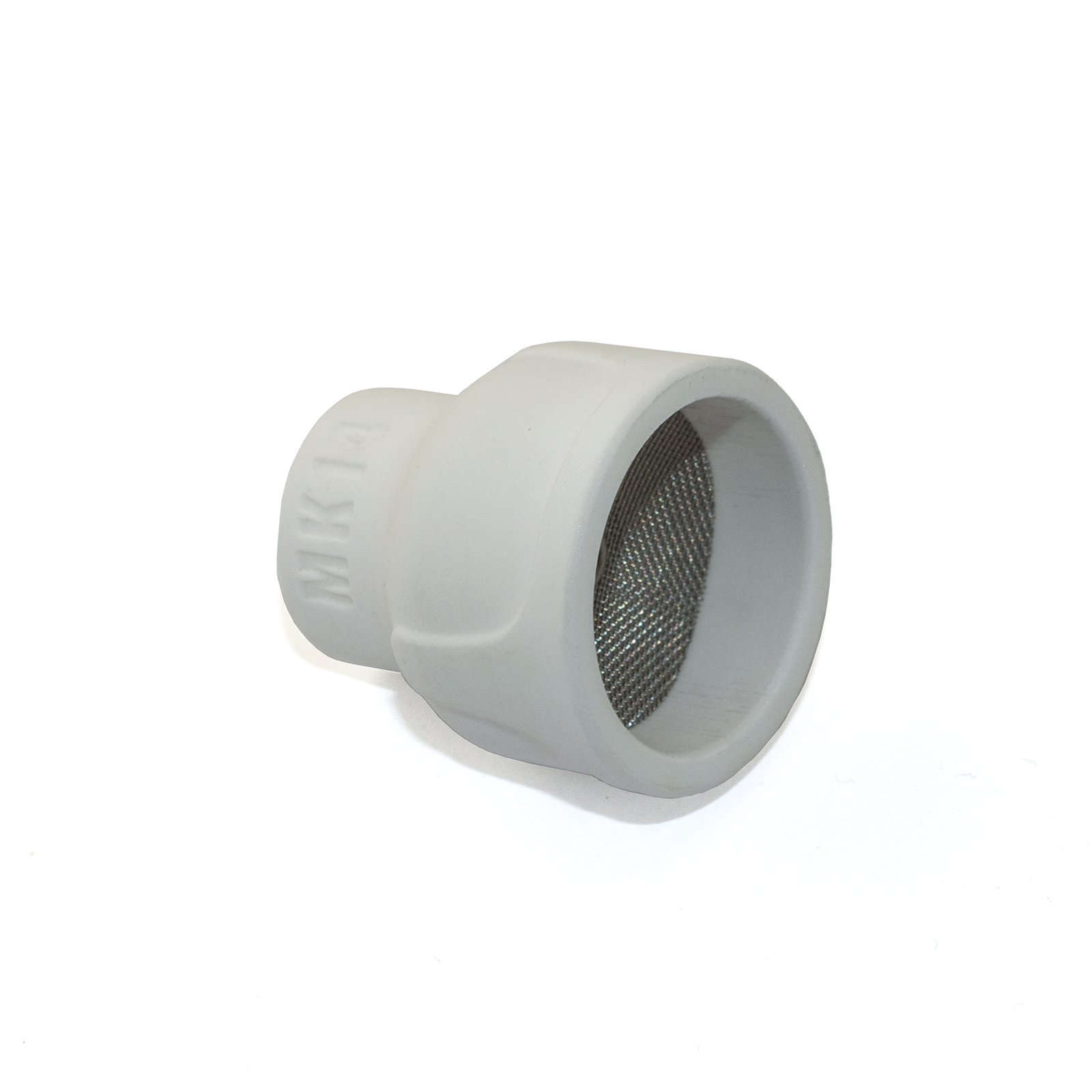

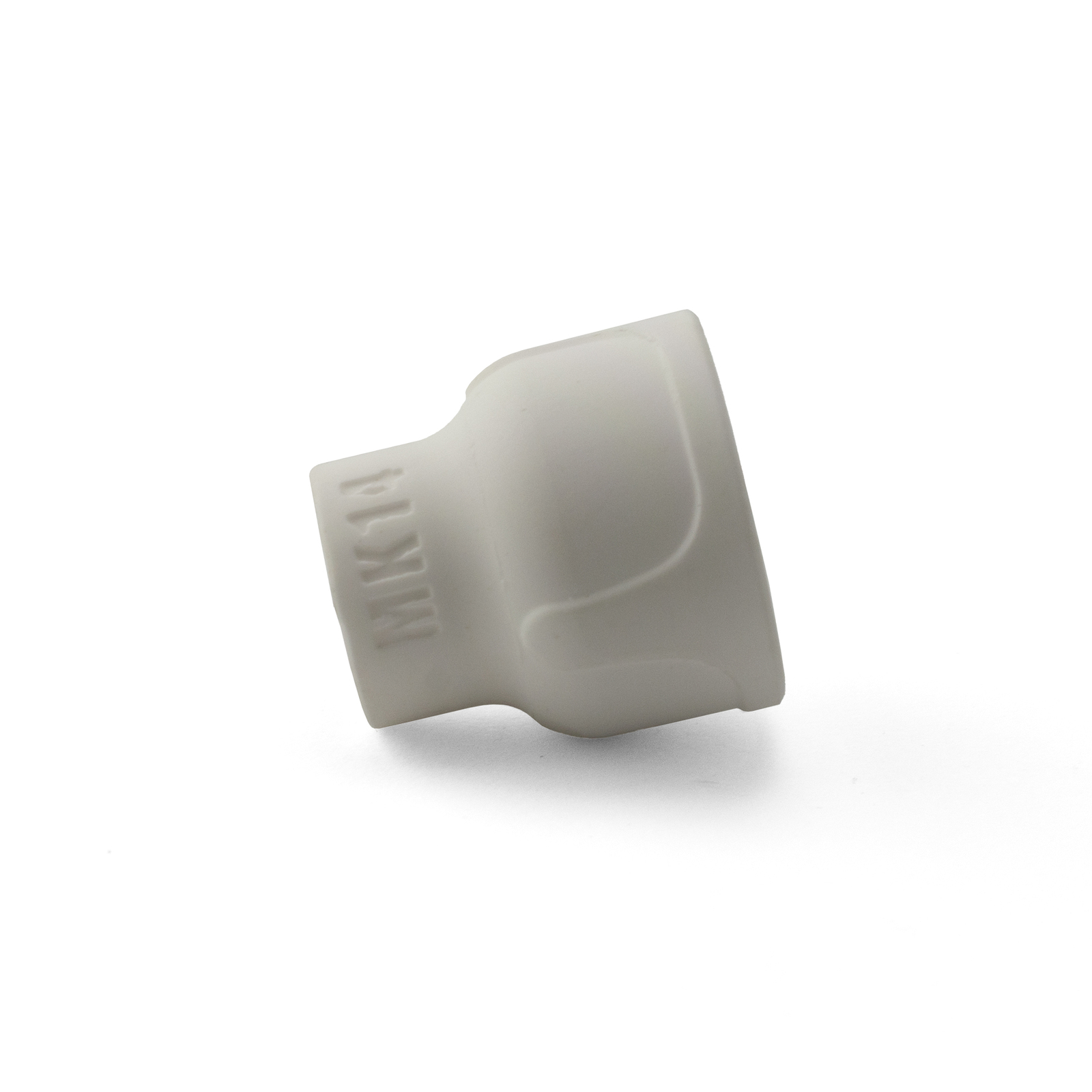

The Moose Knuckle Ceramic Cup includes 1 ceramic cup and a spare diffuser. It performs identical to the original glass version but has the added strength ceramic cups bring. The ceramic version comes only in 2.4mm tungsten size and will thread on a 45V44 or the Furick gas lens 33217GL / 11617GL. This kit does not require Orings.

TheMoose Knuckle Ceramic Cup will handle up to 200 amps non-continuance. Recommended for DC only applications.

Features:

• 2.8mm Thick Ceramic
• 1 Each
• Made in the USA

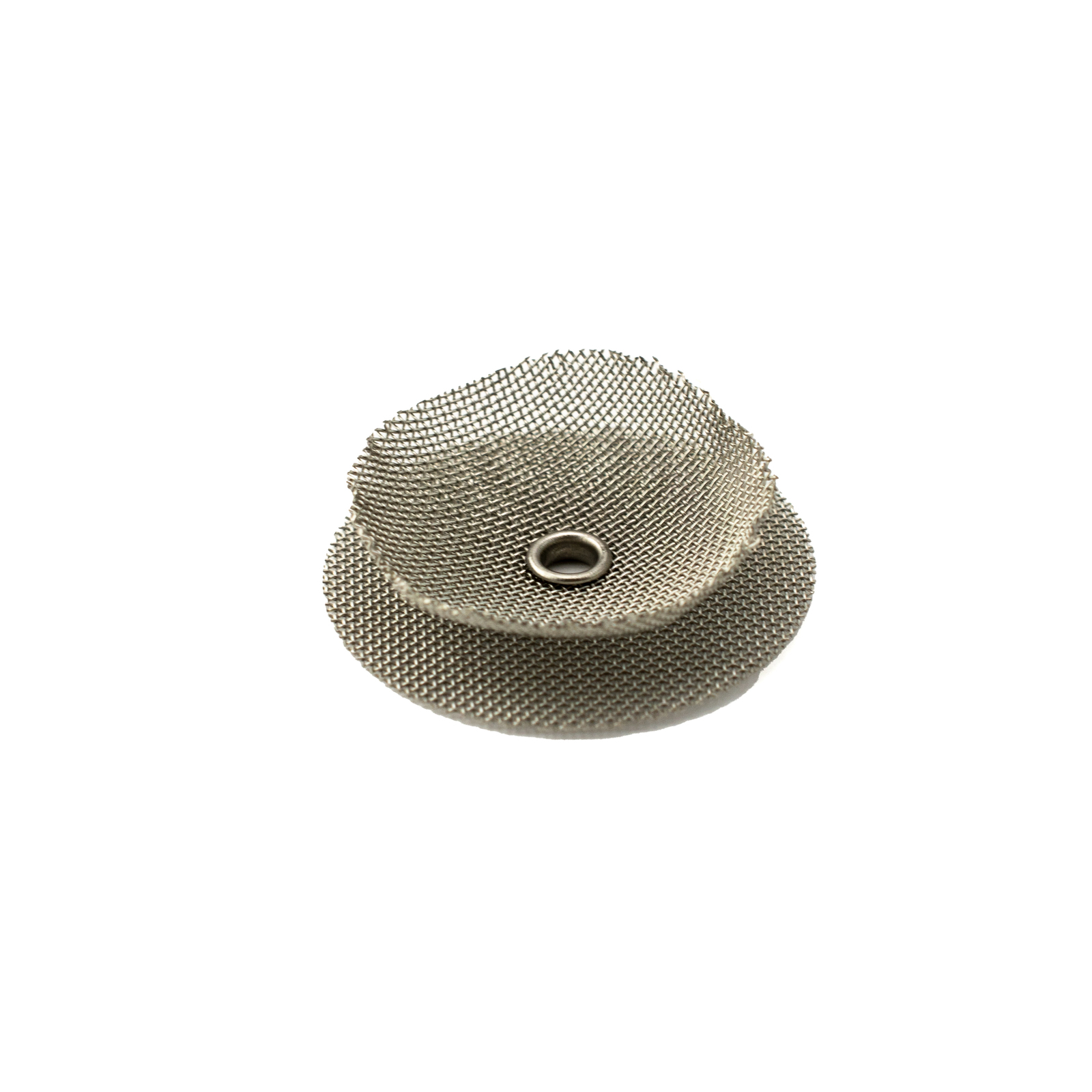

• Utilizes a second mesh filter for consistent gas coverage over the welding material

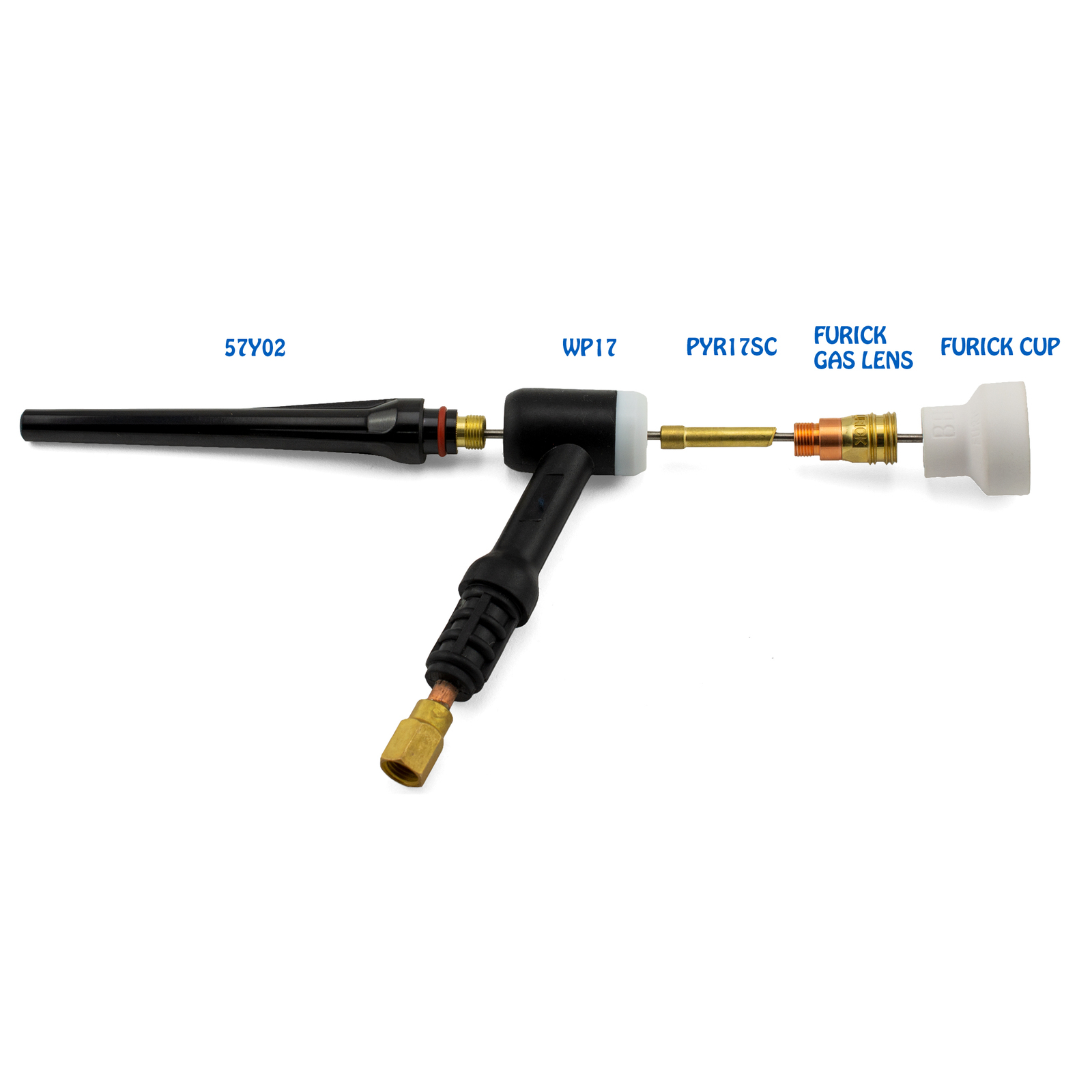

• For use with a standard 17 / 26 series torch the cup will require a gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
• For use with a standard 9 / 20 series torch the cup is compatible with standard gas lens' (pn: 45V43, 45V44, 45V45)

Dimensions:

• Bore ID: 24mm
• Bore OD: 28.6mm
• Length: 29.5mm
• Ceramic Thickness: 2.8mm
• Gas Lens Mesh Bore: 2.7mm
