Tecmen Respirator Welding Helmet PAPR Freflow iEXP TM1000

Tecmen Respirator Welding Helmet PAPR Freflow iEXP TM1000

CLASSIFICATIONS / APPROVALS

• Helmet: CE, UKCA, UKNI, ANSI Z87.1, Z94.3, AS/NZS1338.1
• Respirator: EN12941, AS/NS1716: 2012 – Freflow V1, Particle filter with class P3 inside

BT / Tecmen PAPR Freflow iEXP TM1000 is an exceptional quality welding helmet and powered air purifying respirator system combination, working together to protect the welder from arc radiation, spatter, dust, pollutants, fine particles as well as other contaminants.

The high resolution lens technology gives a high-definition visual experience, increases eyes comfort and reduces fatigue. Ideal for use in the industrial field where welders spend extended periods of time welding.

The Tecmen Freflow filtration unit prevents siphoning in toxic particles, soot and other contaminants for a safe and refreshing breathing experience. The multi-layer particle box filtration system provides efficiency of up to 99.97%.

The Freflow system senses and automatically adjusts power and air-flow depending on the degree of blockage of the filter box. The intelligent control, provides a stable and clean air flow supply, keeping the users comfortable at all times.

Features:

• Part Number SKU: 703090
• Eye/face/respiratory protection
• Large viewing area: 107 x 75mm
• 1 / 1 / 1 / 1 highest optical class
• Dual shade range 5-8 / 9-13
• Quad sensors
• Easy lift up for grinding
• Intelligent air supply
• Class leading P3 filter
• Rechargeable Li-ion battery
• Respirators can be used in many different industrial fields such as polishing, welding and metalworking
• MIG, TIG & STick Welding
• Plasma Cutting
• Grinding

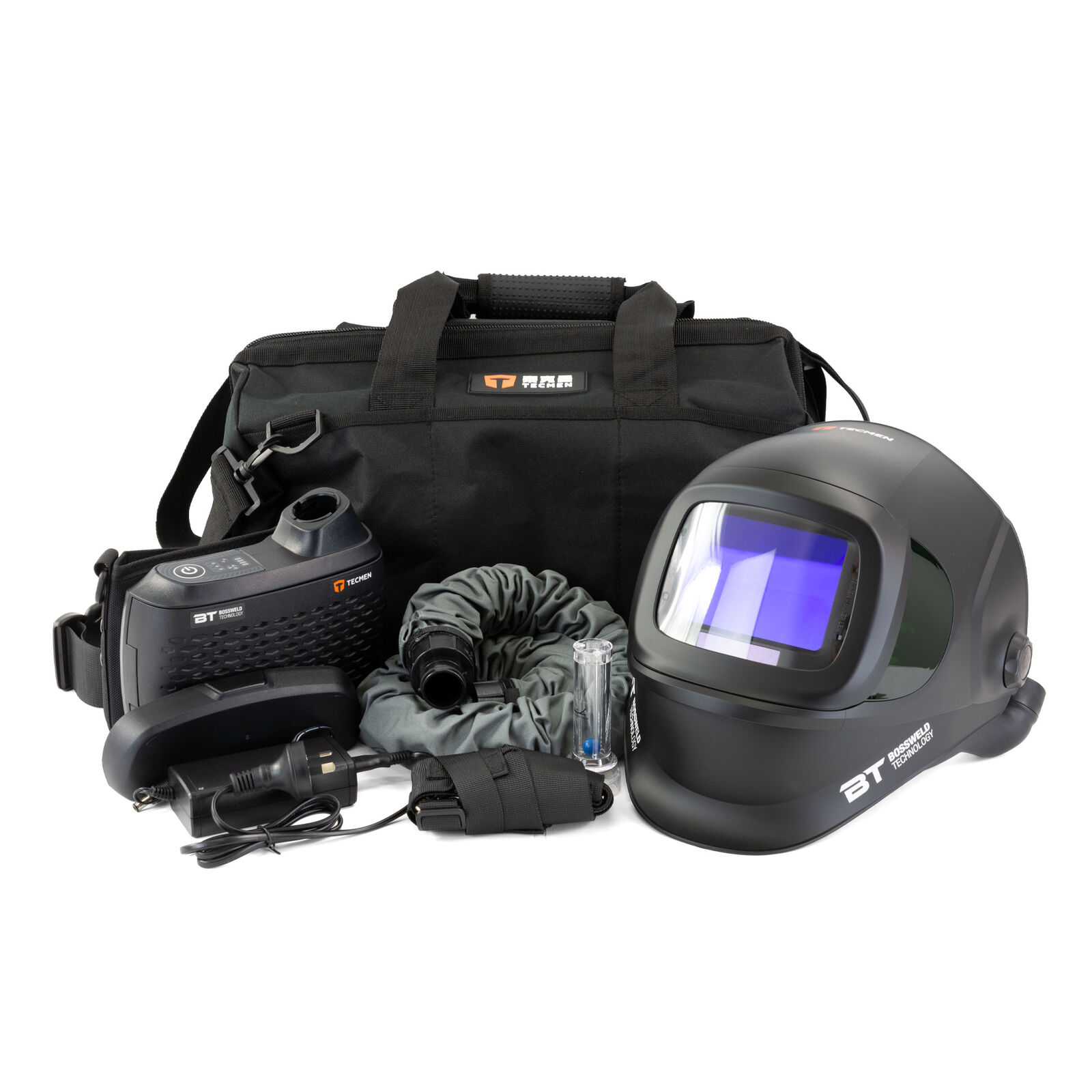

Standard Inclusions:

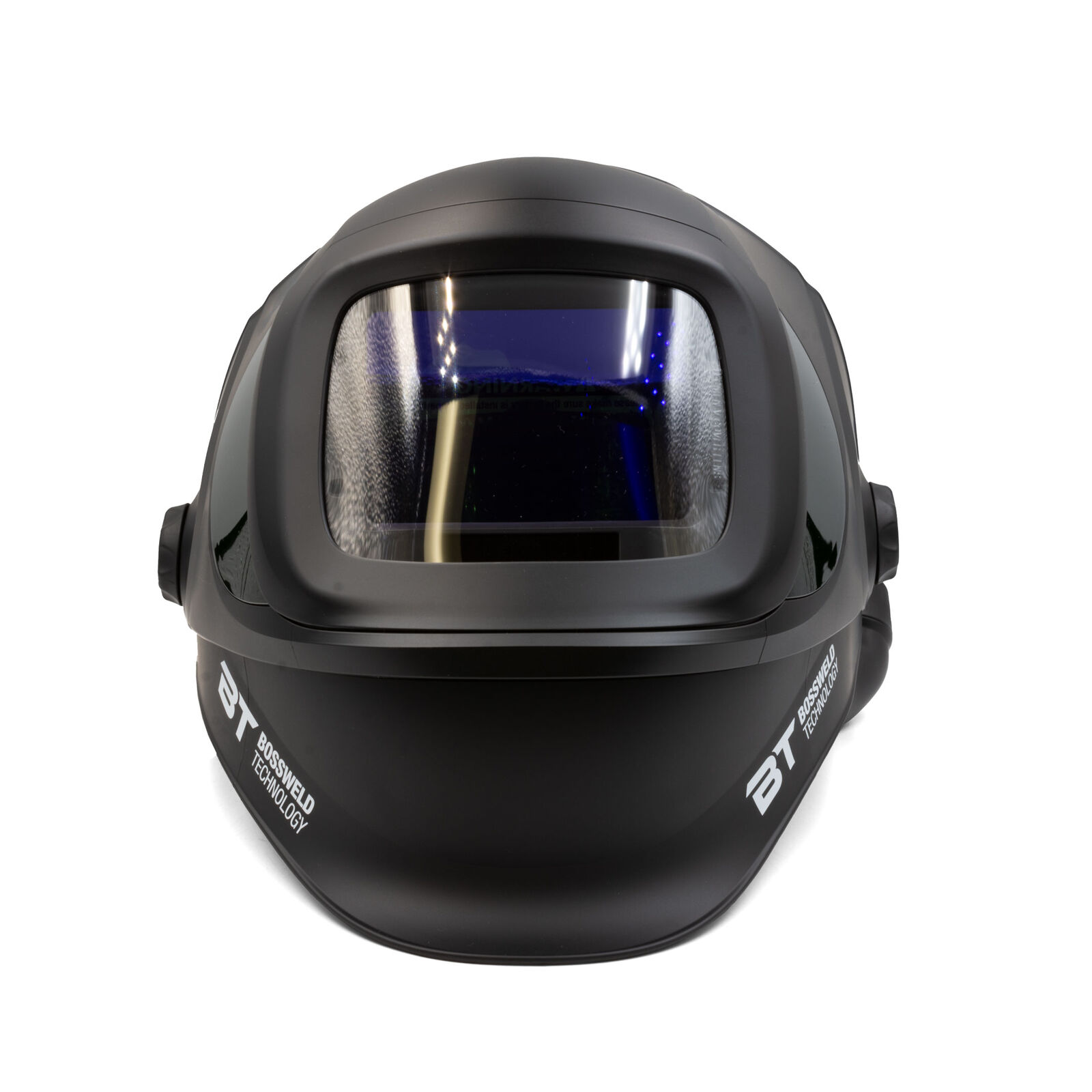

• Flip Front Auto Darkening Welding Helmet
• Blower unit (with waist strap and battery)
• Spare outside cover lens x 5
• Spare inside cover lens x 2
• Side lens cover x 2
• Hose with cover
• Battery Charger
• Shoulder Strap
• Airflow Indicator

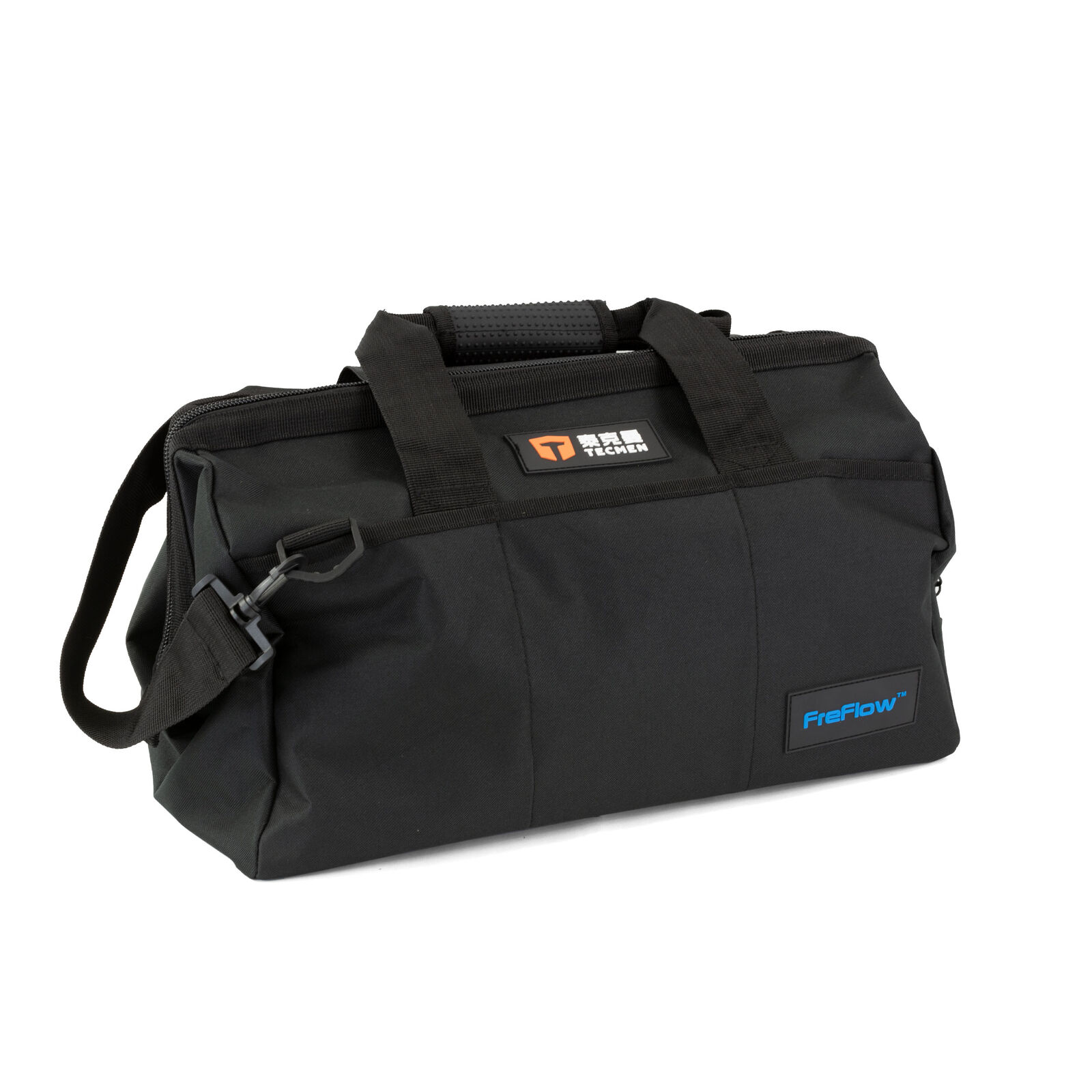

• Carry Bag

Spare parts:

• Small Spares Lens Kit PN: TM1000_kit1
  • 2 x Sweatband (PN: 703105)
  • 5 x Inner Cover Lens' (PN: 703092)
  • 5 x Outer Cover Lens' (PN: 703101)
  • 5 x Anti Fog Grinding Cover Lens' (PN: 703103)
