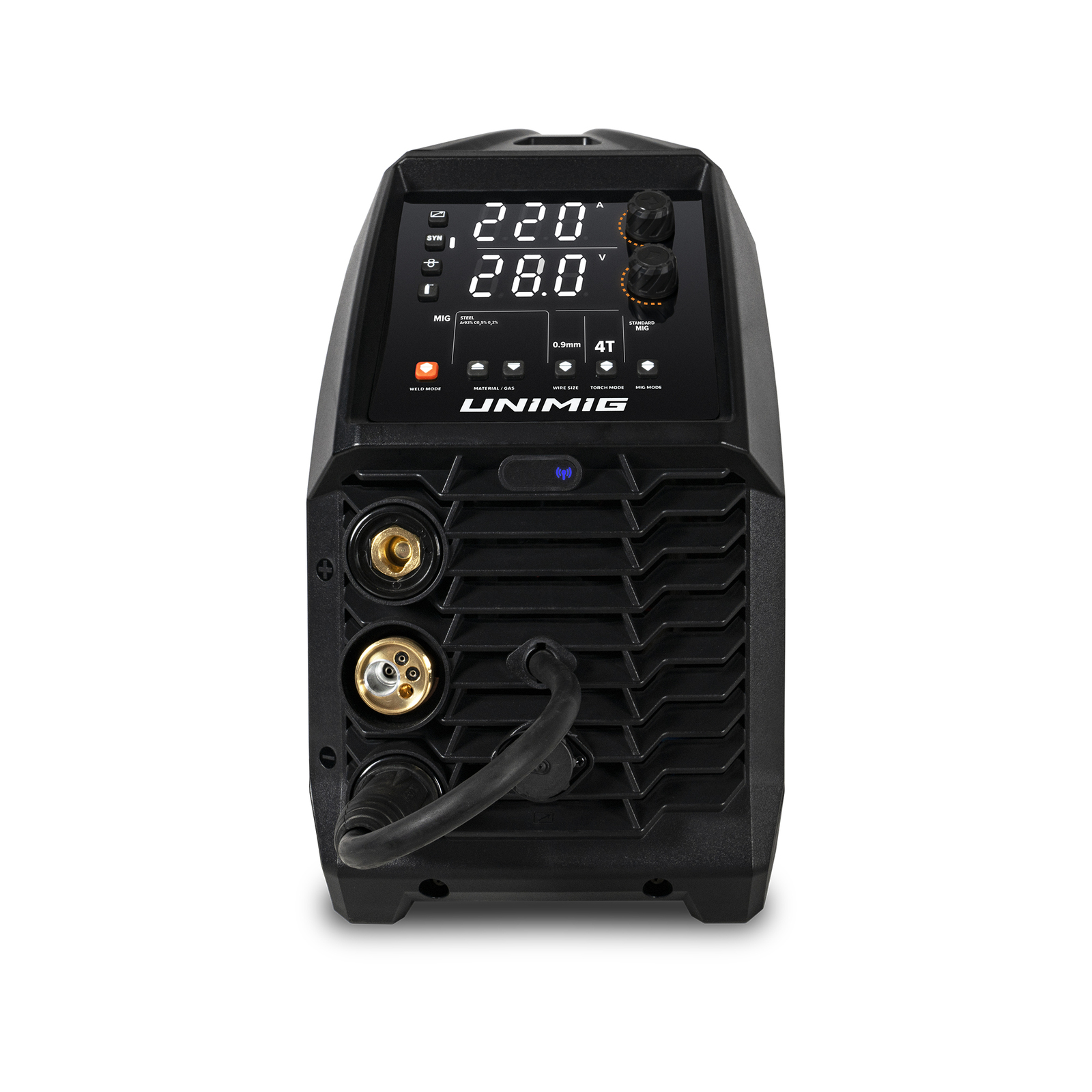

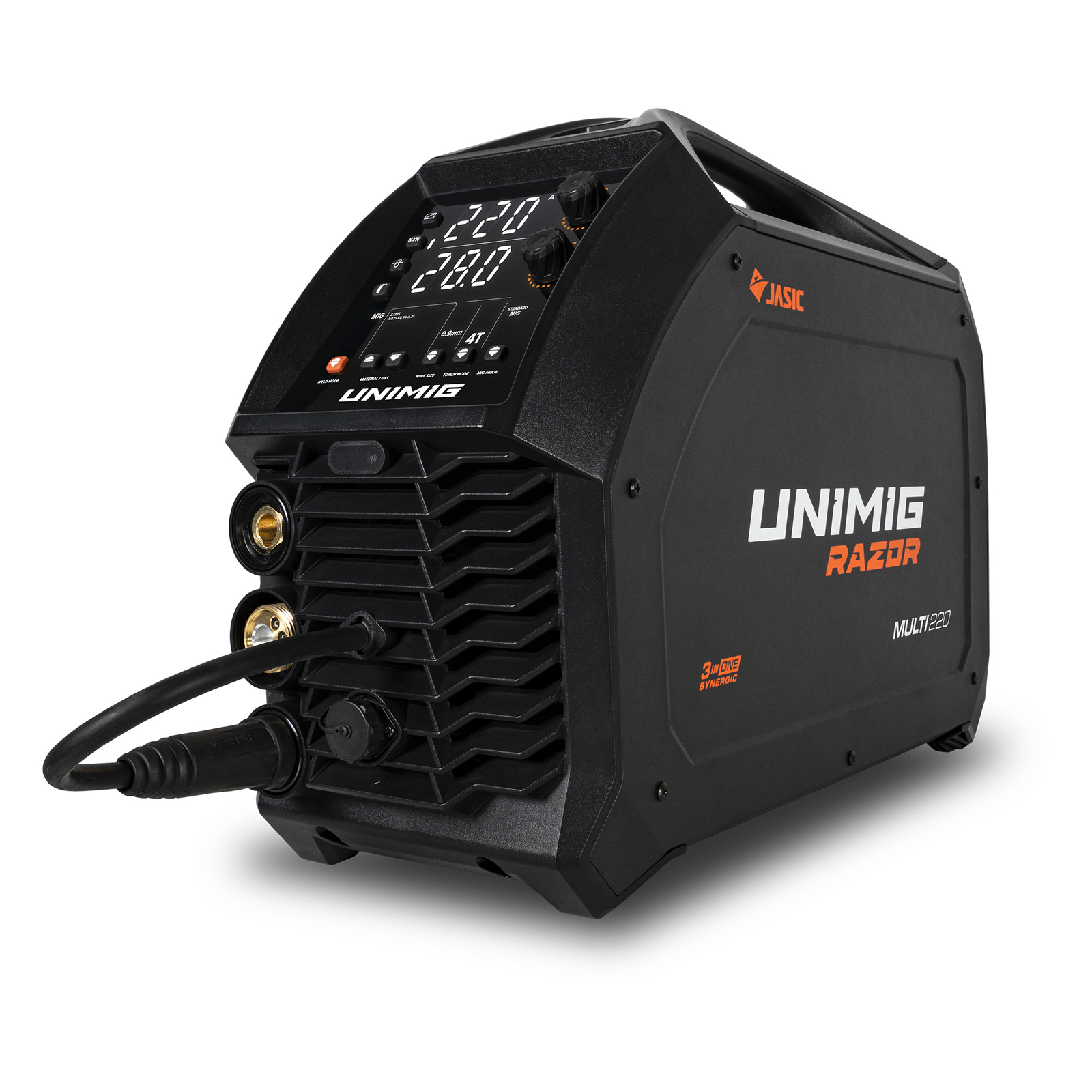

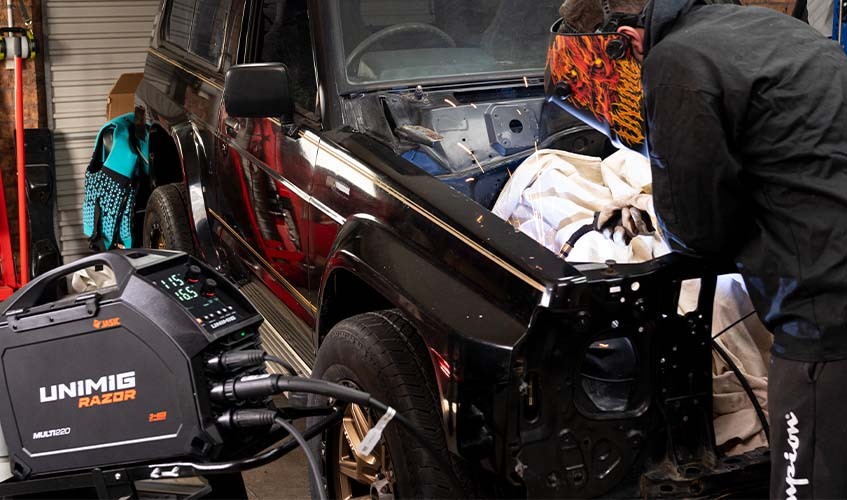

A professional machine in a portable case with all the power, the RAZOR MULTI 220 is perfect for the worksite or the workshop.
- Quick and easy setup with synergic MIG programs
- 3-in-1 multi-process machine so you can MIG, TIG & STICK
- Geared wire drive system for smooth wire feeding
- A 5-year warranty to reflect our confidence in this machine
With Trigger Controlled DC Lift Arc ignition, starting your welding projects has never been easier. Our Lift Arc TIG technology ensures that your tungsten tip won't stick to the workpiece, preventing costly tip breakages.
The stick welding (MMA) capability delivers easy electrode welding with high-quality results, including cast Iron, stainless and low hydrogen.
An additional feature is the Spool gun ready function that allows the simple connection of the PLSP240A Spool Gun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as an aluminium wire.

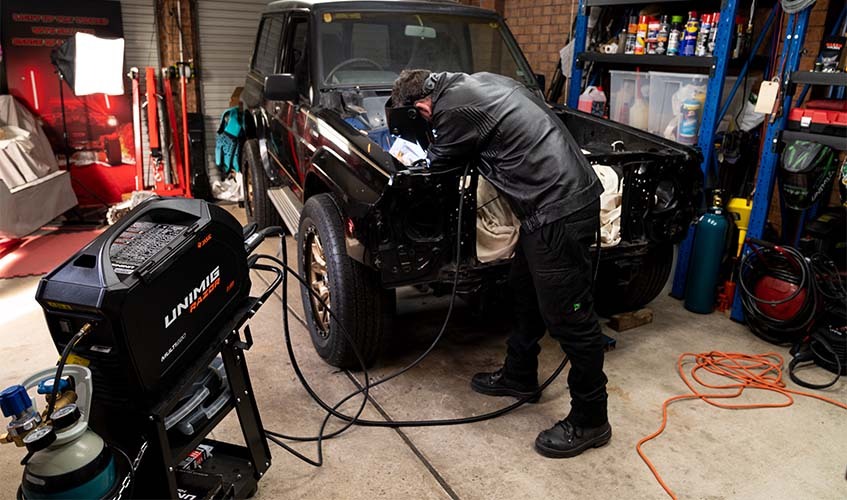

This is an industrial-quality machine that is extremely lightweight and portable. Being 240v single phase gives great versatility. Ideal for general engineers, maintenance workshops, rural workshops, panel beaters and home workshops. Designed and built to our specifications. Certified to - AS/NZ60974.1
Features
- New 40 KHz IGBT inverter technology
- MIG/MAG with Gas and Gasless wire function
- Smart Set Synergic programs
- Soft Start - Self Adaptive Crater Fill - Wire Inch
- MMA function (Stick electrode)
- Post and Pre flow adjustment
- 15A power plug
- VRD (Voltage Reduction Device)
- Hot start (improves electrode starting)
- Adjustable Arc Force
- DC TIG - Lift Arc ignition (prevents tungsten sticking during arc ignition)
- 2T 4T Trigger Control - Adjustable Downslope
- Internal wire feeder, gear-driven for up to 200mm Ø spool
- Euro-style MIG & TIG torch connection
- IP21S rating for environmental/safety protection
- Tolerant to a variable power supply

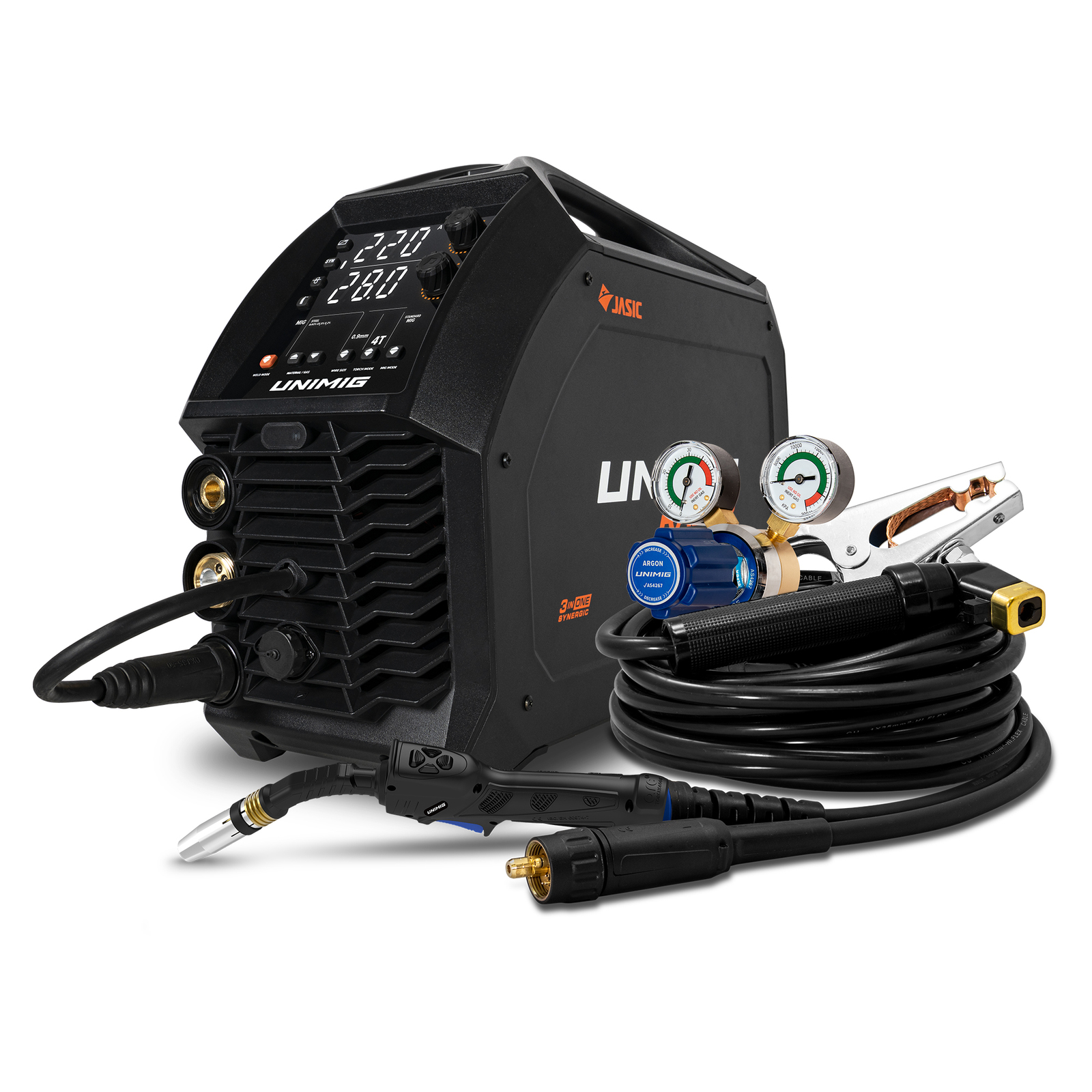

Contents

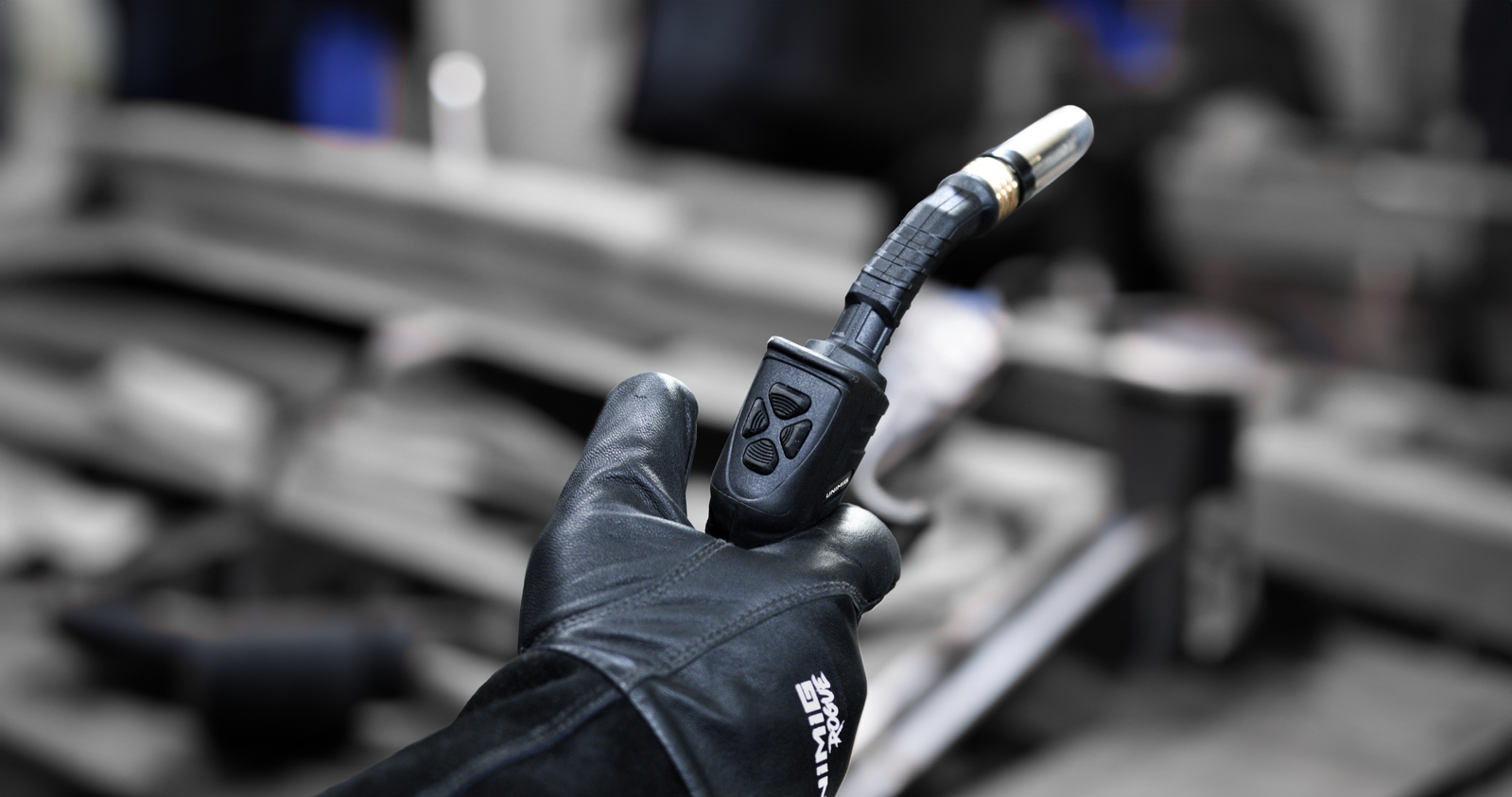

- M24 MIG Torch x 4m
- Earth Lead & Arc Lead 25mm x 4m
- Argon Regulator
- Gas hose with fittings
- 0.8-0.9mm V Groove Roller
- 0.8-0.9mm F Groove Roller
- 1.0-1.2mm U Groove Roller
Technical Data
- MIG:
- MIG Welding Current Range: 30-220A
- MIG Duty Cycle @ 40°C:
- 15% @ 220A
- 60% @ 110A
- 100% @ 85A
- MIG Wire Size Range: 0.6-1.2mm
- MIG Wire Spool Size: 1kg / 5kg
- MIG Welding Thickness Range: 1-10mm
- Drive Roller Size: 30/22
- TIG:
- TIG Function Type: Trigger Controlled DC Lift Arc
- TIG Welding Current Range: 5-220A
- TIG Duty Cycle @ 40°C:
- 15% @ 220A
- 60% @ 110A
- 100% @85A
- TIG Welding Thickness Range: 1-8mm
- STICK:
- STICK Welding Current Range: 20-180A
- STICK Duty Cycle @ 40°C:
- 15% @ 180A
- 60% @ 90A
- 100% @ 70A
- STICK Electrode Range: 2.5-4.0mm
- STICK Welding Thickness Range: 2-12mm
- Dimensions: 560mm × 220mm × 400mm
- Weight (kg): 15.1kg
(U11008K)
SKU | U11008K |
Brand | UNIMIG |
Shipping Weight | 22.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.440m |
Shipping Length | 0.540m |
Shipping Cubic | 0.071280000m3 |
** Product comes with a nationally recognised 36 month warranty through any UNIMIG Dealer **
