15kg - 1.6mm Welding Alloys Hardfacing CN-O GASLESS MIG Wire

Welding Alloys CN-O is a Self-Shielding, High carbon, chromium and Niobium alloyed wire designed for application where severe high stress and abrasion is combined with low to medium impact at temperatures not exceeding 400 C.

The deposits contain high chromium cast iron deposits containing a high proportion of hard primary chromium carbides in a tough austenitic matrix.

The weld deposit can be stress relieved and are not machinable.

The deposits resist extreme conditions of abrasion and impact up to 450°C

This flux cored wire produces a small amount of slag that is easily removed.

Relief checking in normal noticed as visible cracks in weld deposit which may occur as cooling.

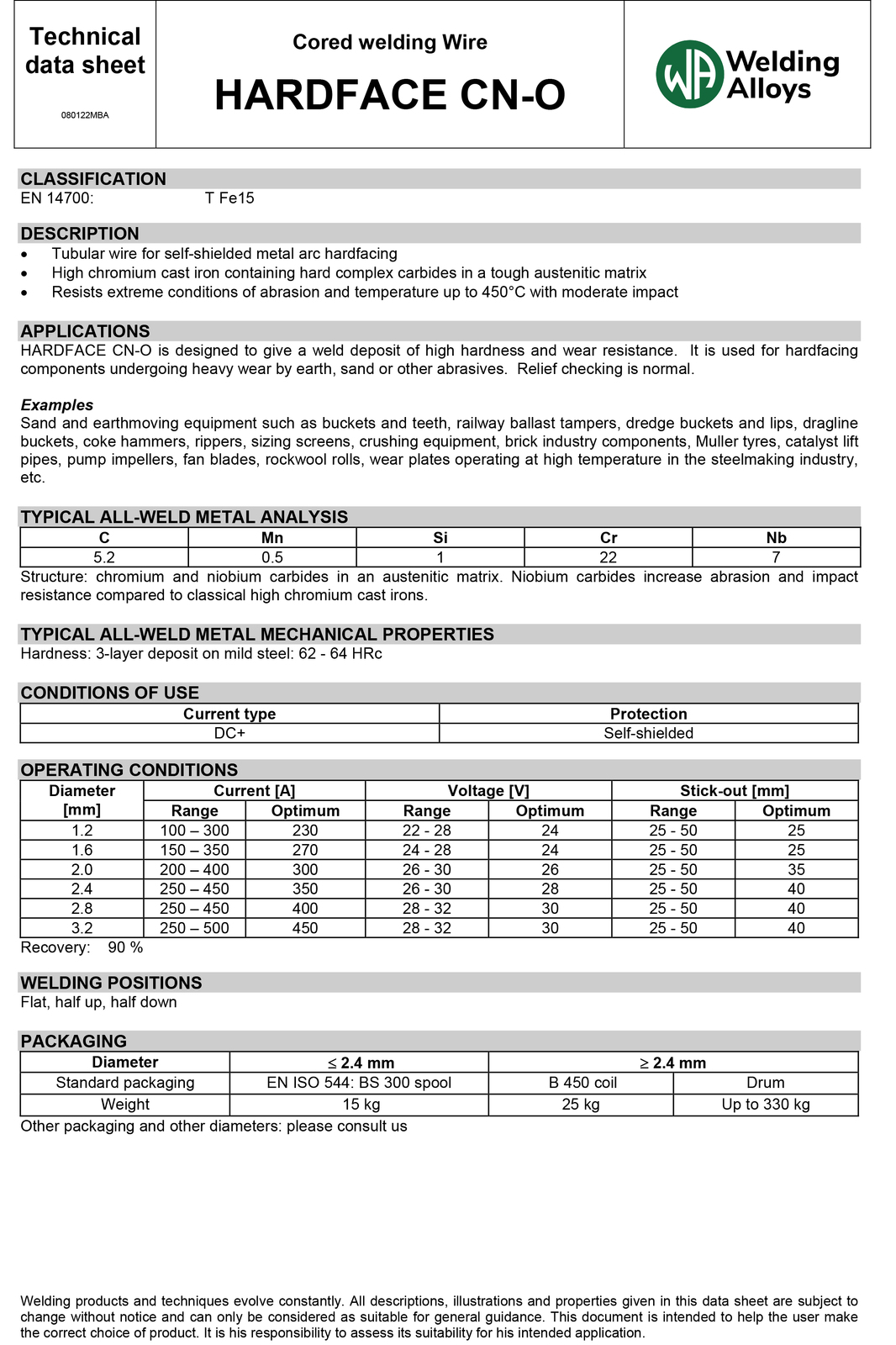

Download Product Specifications - Download link

Specifications

• Grade – CN-O
• Diameter 1.6 mm

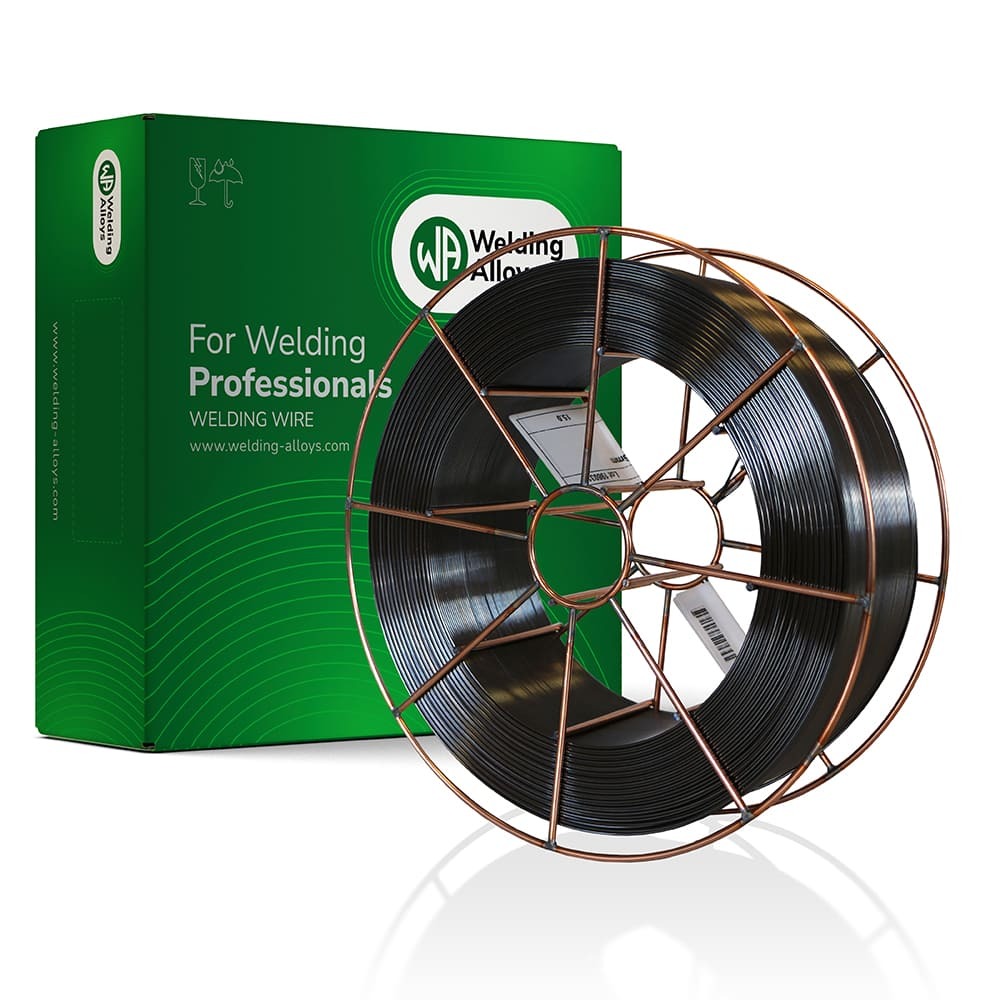

• 15kg Spool
• Self Shielding (Gasless)
• Machinable: No
• Welding Positions: Flat | Half Down | Half Up

^{Classifications}

• AS/NZS 2576-2005 2460-B7
• EN 14700    TFe15

Specific Use

• Expeller screws
• Bucket lips and teeth
• Sizing screen for the mineral industry
• Dredge buckets and lips
• Hammers, rippers, and crushing equipment
• Brick industry components
• Pump impellers, fan blades
• Wear plates operating at high temperature in the steelmaking industry

Typical Hardness

• 62-64 HRC - Rockwell
• 630 - 670 HB - Brinell
• 830 - 900 HV - Vickers

Packaging Specifications

• 15kg Spool D300
• Spool Outside Diameter = 300mm
• Spool Hub inside Diameter = 51mm
