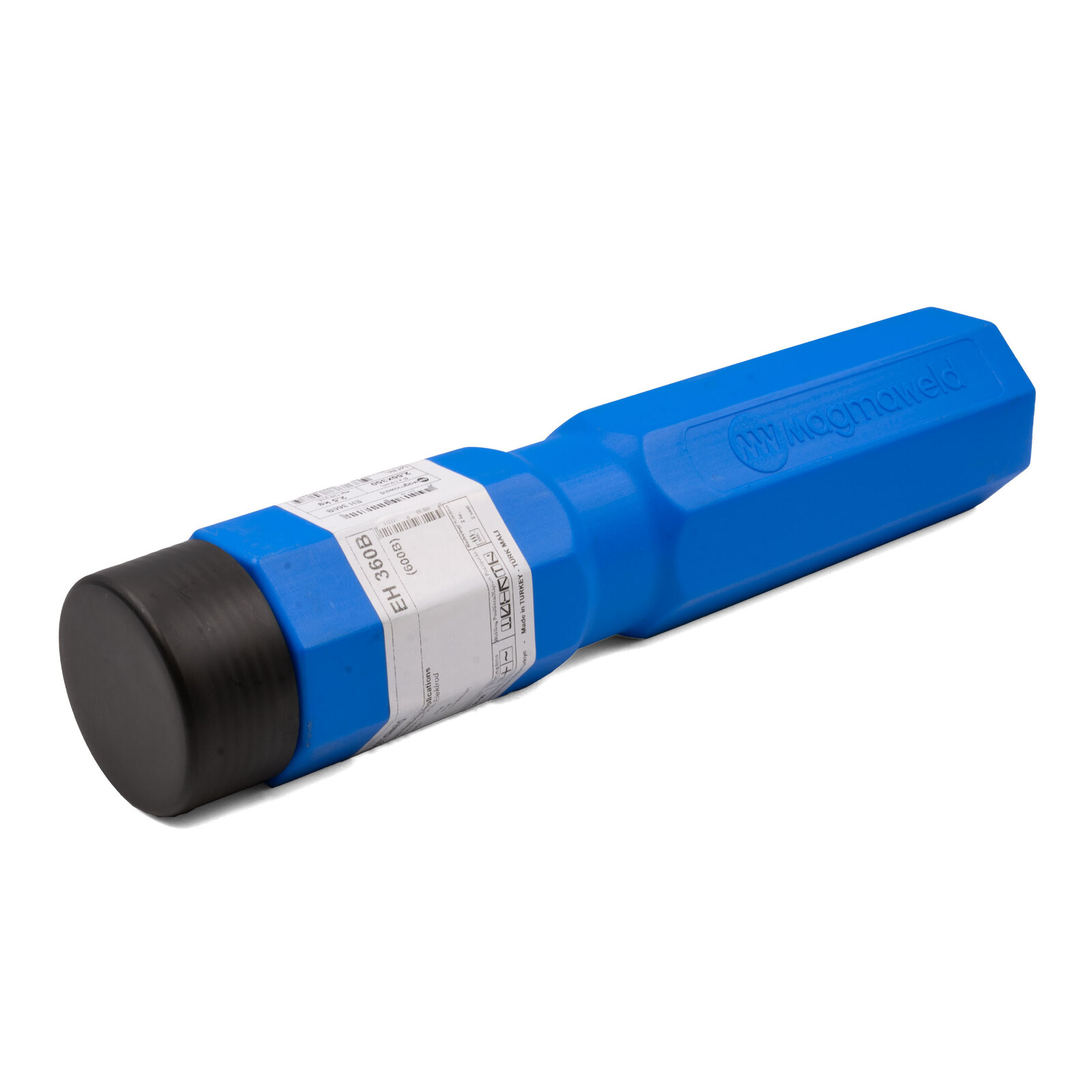

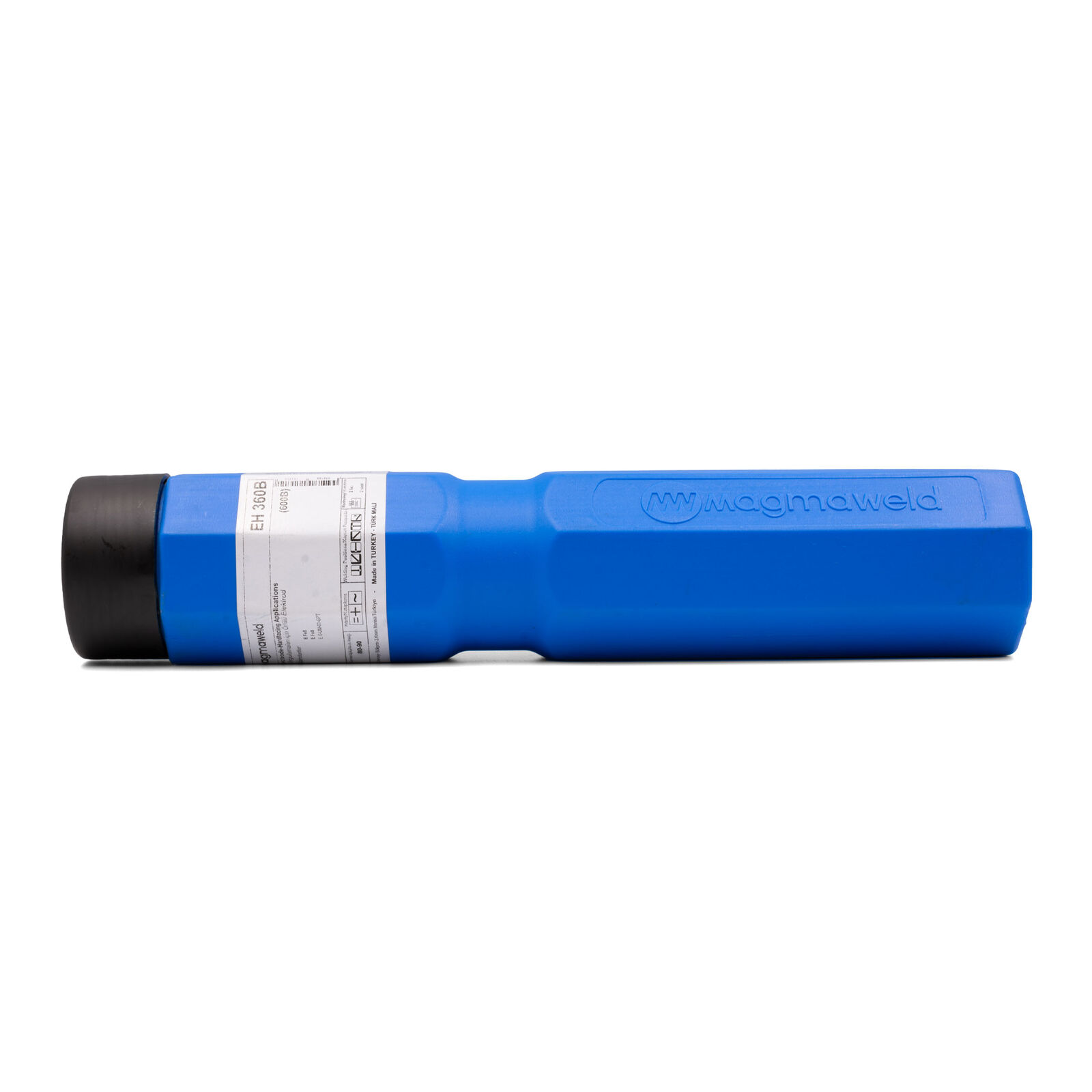

Hampdon Industrial stocks the premium range of Magmaweld Hardfacing Electrodes. The Magmaweld EH600B is a metal enriched electrode recommended for the multi-layer build-up and surfacing of steel components subjected to metal wear and compressive loading. This smooth running electrode deposits a tough wear resistant recommended for the manual arc build-up and surfacing of agricultural points, shares and tynes, grader and dozer blades, conveyor screws and post hole augers.
Features:
- Made in Turkey
- 2.5mm thickness diameter
- 350mm length
- 10kg weight
- 120 Sticks Approximate
- Product code – 18006HDEM2
- Stick code – EH 360B
- Market-leading Magmaweld brand
- Industrial Quality
- For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.
Properties and Applications:
Thick basic-covered electrode for depositing tough and wear resisting overlays on structural members, subjected to severe wear. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to 600°C. It can be machined only by grinding. Multi-layers deposits will be free of cracks, even without depositing intermediate buffer layers. Only in case of very crack sensitive base metals, a tough buffer layer, made with ESB 42 or EI 307B electrodes, is required. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC. Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws
Manufactured to international standards:
- EN 14700
- TS EN 14700
- DIN 8555
- E Fe8
- E 6-UM-60-GPT
Typical Chemical Values of Weld Metal
Type of Analysis |
C |
Si |
Mn |
Cr | Mo | V | Fe |
Weld Deposit |
0.50 |
0.80 |
0.60 |
8.00 | 0.50 | 0.65 | 88.95 |
Typical Mechanical Values of Weld Metal(%)
Test Condition |
Hardness (HRc) |
Wear Index |
As welded |
59 |
62.34 (SiO2) |
Welding Position Applications:
- PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
- PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
- PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
- PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
- PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
- PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.
(600-2.5-2.5-10kg)
SKU | 600-2.5-2.5-10kg |
Brand | Magmaweld |
Shipping Weight | 2.5000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
