MAGMAWELD 600B - 2.5mm Stick Electrodes - 2.5KG Pack Hardfacing

Hardfacing Electrode

$69.00
RRP $86.25
SAVE $17.25 (20%)

AfterPay More info.

Make 4 payments of $17.25 over 8 weeks and get it now!

In Stock


Calculate Shipping


3 Items or More - FREE EXPRESS - $0.00
3 Items or more in cart qualifies for free express shipping
DG Freight - $0.00
Charge for Dangerous Goods Freight
Free Shipping - $0.00

Free pick-up from store - $0.00
Visit our warehouse at 20 Milly Court, Malaga Western Australia to collect your order. Pick up times 7:30 am to 5:00 pm Mon to Fri 9:00 am to 12:000 pm Saturday

Hampdon Industrial stocks the premium range of Magmaweld Hardfacing Electrodes. The Magmaweld EH600B is a metal enriched electrode recommended for the multi-layer build-up and surfacing of steel components subjected to metal wear and compressive loading. This smooth running electrode deposits a tough wear resistant recommended for the manual arc build-up and surfacing of agricultural points, shares and tynes, grader and dozer blades, conveyor screws and post hole augers.

Features:

  • Made in Switzerland
  • 2.5mm thickness diameter
  • 350mm length
  • 2.5kg weight
  • 120 Sticks Approximate

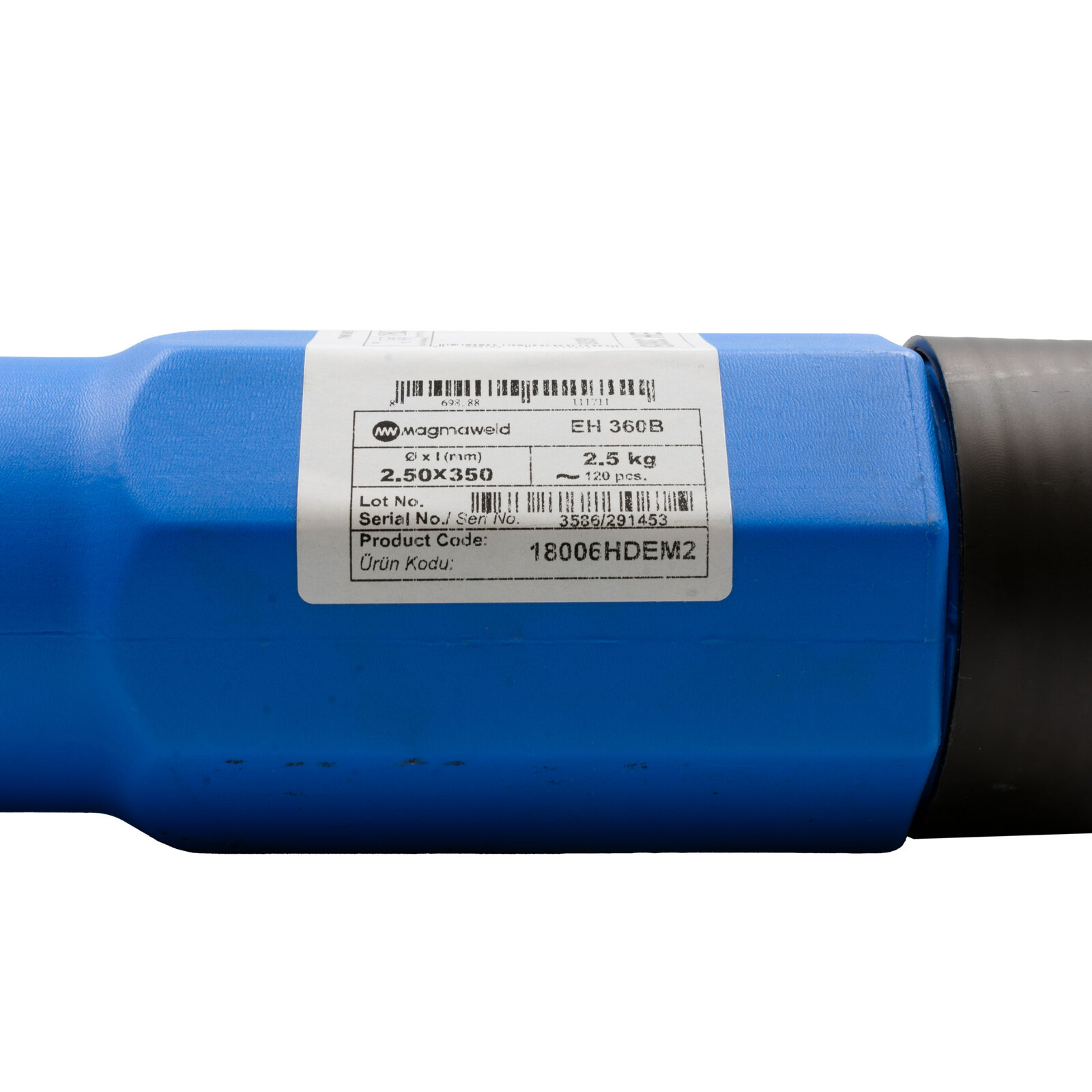

  • Product code – 18006HDEM2
  • Stick code – EH 360B
  • Market-leading Magmaweld brand
  • Industrial Quality
  • For Storage & Re-Drying Information: It can be dried maximum 5 times. It has to be dried at 350°C for 2 hours.



Properties and Applications:

Thick basic-covered electrode for depositing tough and wear resisting overlays on structural members, subjected to severe wear. It is particularly resistant to high metal-to-metal wear, moderate impact and abrasion. The weld metal has sufficient red hardness up to 600°C. It can be machined only by grinding. Multi-layers deposits will be free of cracks, even without depositing intermediate buffer layers. Only in case of very crack sensitive base metals, a tough buffer layer, made with ESB 42 or EI 307B electrodes, is required. Preferred to use with DC, electrode in positive (+) pole and also possible to use with AC. Suitable hardfacing applications where wear resistance at higher temperatures is a prime concern, as in hot cut offs, dies for pressure castings, rolls, crushers excavator parts, bucket edges and bucket teeth, drilling bits, coal planes, conveyor screws



Manufactured to international standards:

  • EN 14700
  • TS EN 14700
  • DIN 8555
  • E Fe8
  • E 6-UM-60-GPT

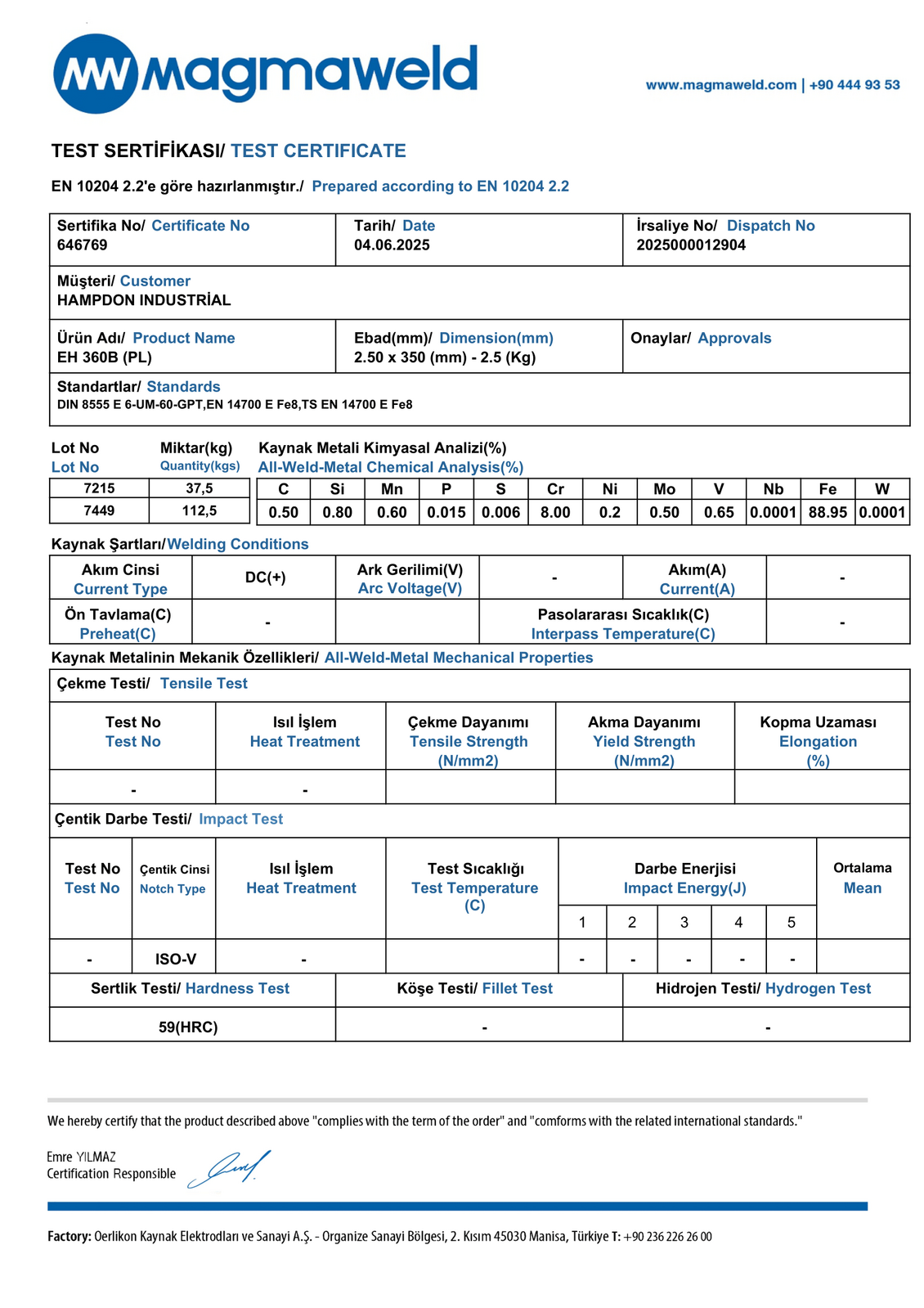

Typical Chemical Values of Weld Metal

Type of Analysis

C

Si

Mn

Cr Mo V Fe

Weld Deposit

0.50

0.80

0.60

8.00 0.50 0.65 88.95



Typical Mechanical Values of Weld Metal(%)

Test Condition

Hardness (HRc)

Wear Index

As welded

59

62.34 (SiO2)



Welding Position Applications:

  • PA - Flat Position: Welding is performed from the upper side of the joint, and the axis of the weld is approximately horizontal.
  • PB - Horizontal Position: The welding is done on the horizontal surface, and the axis of the weld is approximately horizontal.
  • PC - Vertical Position: Welding is carried out on the vertical surface, and the axis of the weld is approximately vertical.
  • PD - Overhead Position: Welding is performed from the underside of the joint, and the axis of the weld is approximately horizontal.
  • PE - Horizontal/Vertical Position: This position is a combination of horizontal and vertical welding. The joint can be both in the horizontal and vertical planes.
  • PF - 4G Position: This is a groove weld performed on the outside surface of a pipe or cylinder in a fixed vertical position.

(600-2.5-2.5)

SKU 600-2.5-2.5
Brand Magmaweld
Shipping Weight 2.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
