Features the Quick Acting Screws and “Swing Away” Arm.

Hold parts in position during cool down to minimize distortion due to contraction.

Features:

Two Quick Acting Screws.

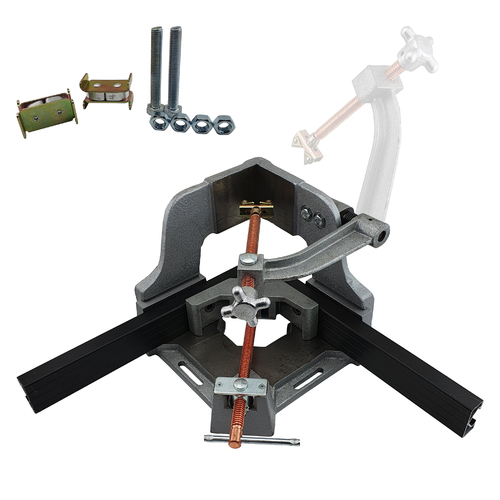

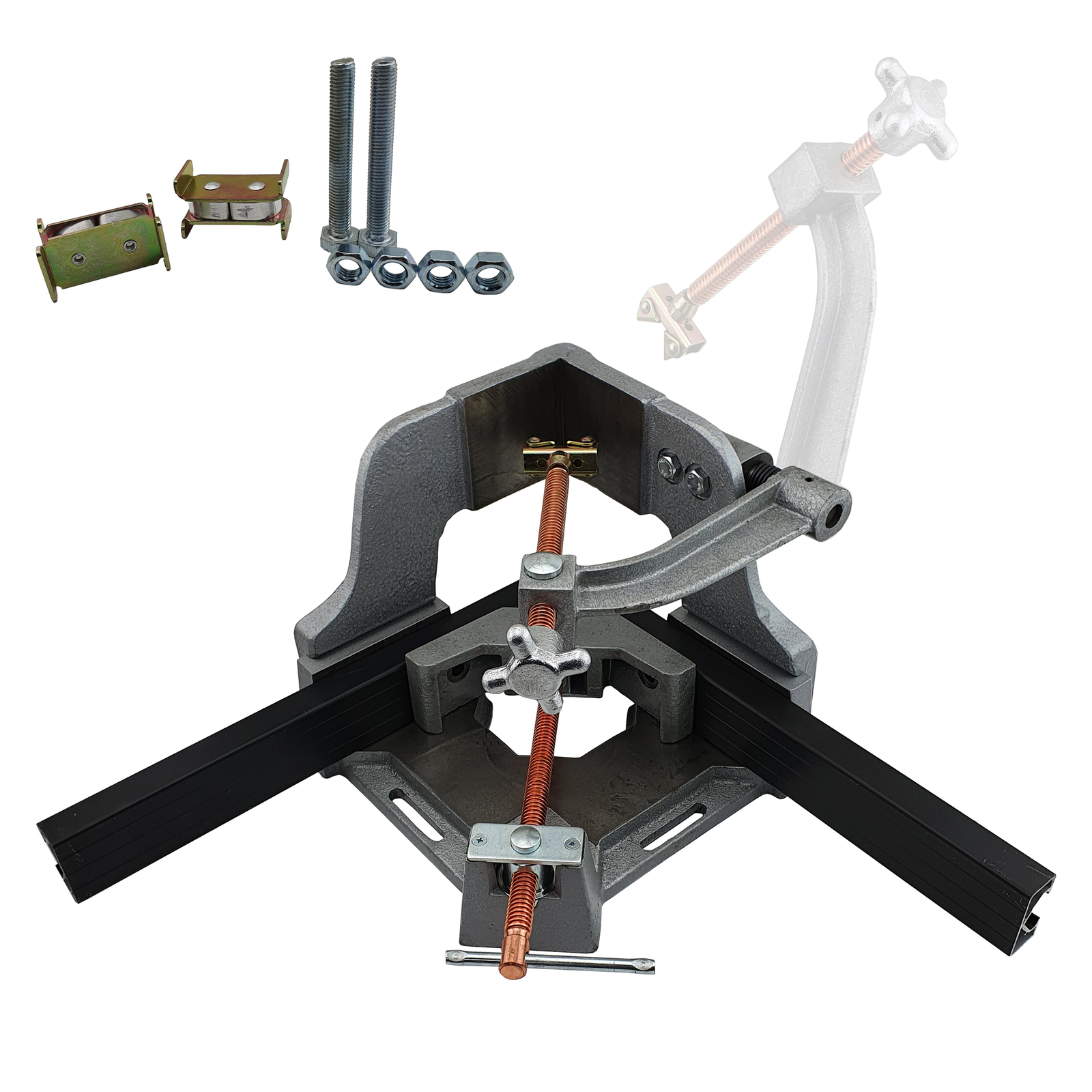

“swing away” the 3rd Axis arm for quick and easy part removal.
Available in 3.75″ (95 mm) and 4.75″ (120 mm) capacities. Model WAC45-SW comes with a curved arm for greater workpiece clearance.
Press the Quick Acting Button to allow the threaded screws to slide in and out for fast setup.

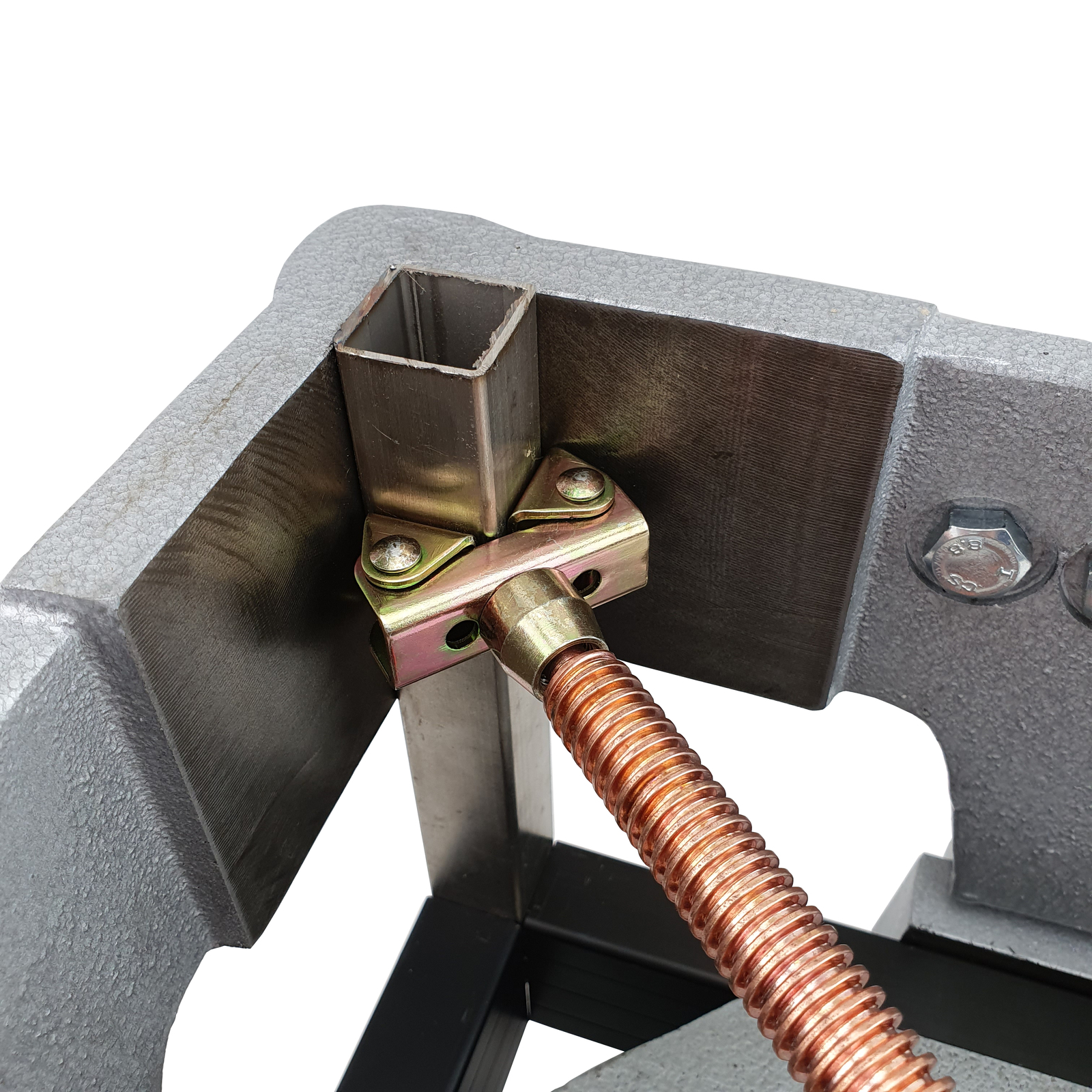

V-Pad and Quick Acting Button on the “swing-away” arm.
Use FREE Magnetic Rest Blocks 1″, 1-1/4″ and 2″ heights to support and stabilize long stock!

Dimensions:

Part No.	Features	Slot Size (A)	Slot Width (B)	Miter Joints (C)	Jaw Length (D)	T-Clearance (E)	Jaw Height (F)	Height	Weight
WAC35-SW	3-Axis Fixture, Quick Acting Screw, two stand-offs, “Swing Away” Arm, two Magnetic Rest Blocks	1.6″ (42 mm)	0.42″ (11 mm)	3.75″ (95 mm)	4.8″ (120 mm)	2.5″ (64 mm)	1.38″ (36 mm)	8.25″ (210 mm)	24 LBS (11 kg)
WAC45-SW	3-Axis Fixture, Quick Acting Screw, Two stand-offs, “Swing Away” Arm, two Magnetic Rest Blocks	2.0″ (51 mm)	0.42″ (11 mm)	5.00″ (125 mm)	5.2″ (135 mm)	4.0″ (103 mm)	2.45″ (64 mm)	9.5″ (245 mm)	35 LBS (16 kg)

(WAC45-SW)

SKU	WAC45-SW
Barcode #	679352005683
Brand	Strong Hand Tools
Shipping Weight	16.0000kg
Shipping Width	0.300m
Shipping Height	0.300m
Shipping Length	0.300m
Shipping Cubic	0.027000000m3
