UNIMIG 390 SWF 375 Amp MIG Welder - Workshop Series - KUM390SWF
Separate Wire Feeder
Rated 5/5 based on 1 reviews.
More infoMake 4 payments of $1,412.50 over 8 weeks and get it now!
The Unimig 390 is a powerful workhorse with an exceptionally high duty cycle. It is ideally suited for medium to heavy fabrication industries as well as rural applications. Combining smooth arc characteristics with complete reliability, the Unimig 390 is the unit to satisfy all the demands of the professional welder. Fitted standard with a geared four roller drive system ensuring consistent wire feed and smooth welding.
*Please note: Due to the size of this item, the free delivery is to the Australian major cities metropolitan areas. If you are outside of the metro area, we may contact you for a small additional freight charge*
Machine Specification:
- Part Number: KUM390SWF
- Wire Drive: Four Geared
- Thermal Overload Protection: Over Temperature Warning
- Primary Input Voltage: 415V Three Phase
- Supply Plug: Three Phase (32 AMP Recommended)
- Rated Input Power (kVA): 16.0
- Rated Output: 30-375A
- Protection Class: IP21
- Insulation Class: I
- Minimum Generator (kVA): 19.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
- Suitable Material: Mild Steel, Aluminium, Stainless Steel
- Push pull compatible
- Spool gun compatible
- Please note: For push pull and Spool gun compatibility, modification required by UNIMIG at time of order. This is an extra cost. (approximately $900). This does not include the gun
- Spool gun / Push pull gun required is 48v drive
MIG Specification:
- MIG Welding Current Range: 30-375A
- MIG Duty Cycle @ 40°C: 40% @ 355A
- MIG Wire Size Range: 0.6-2.4mm
- MIG Wire Spool Size: 5kg/15kg
- MIG Welding Thickness Range: 2-20mm
- Drive Roller Size: 40/32 (x2)
Dimensions:
- Dimensions (mm): 980 x 660 x 460mm
- Weight (kg): 136kg
- SWF Interlocking Cable Length (m): 10m

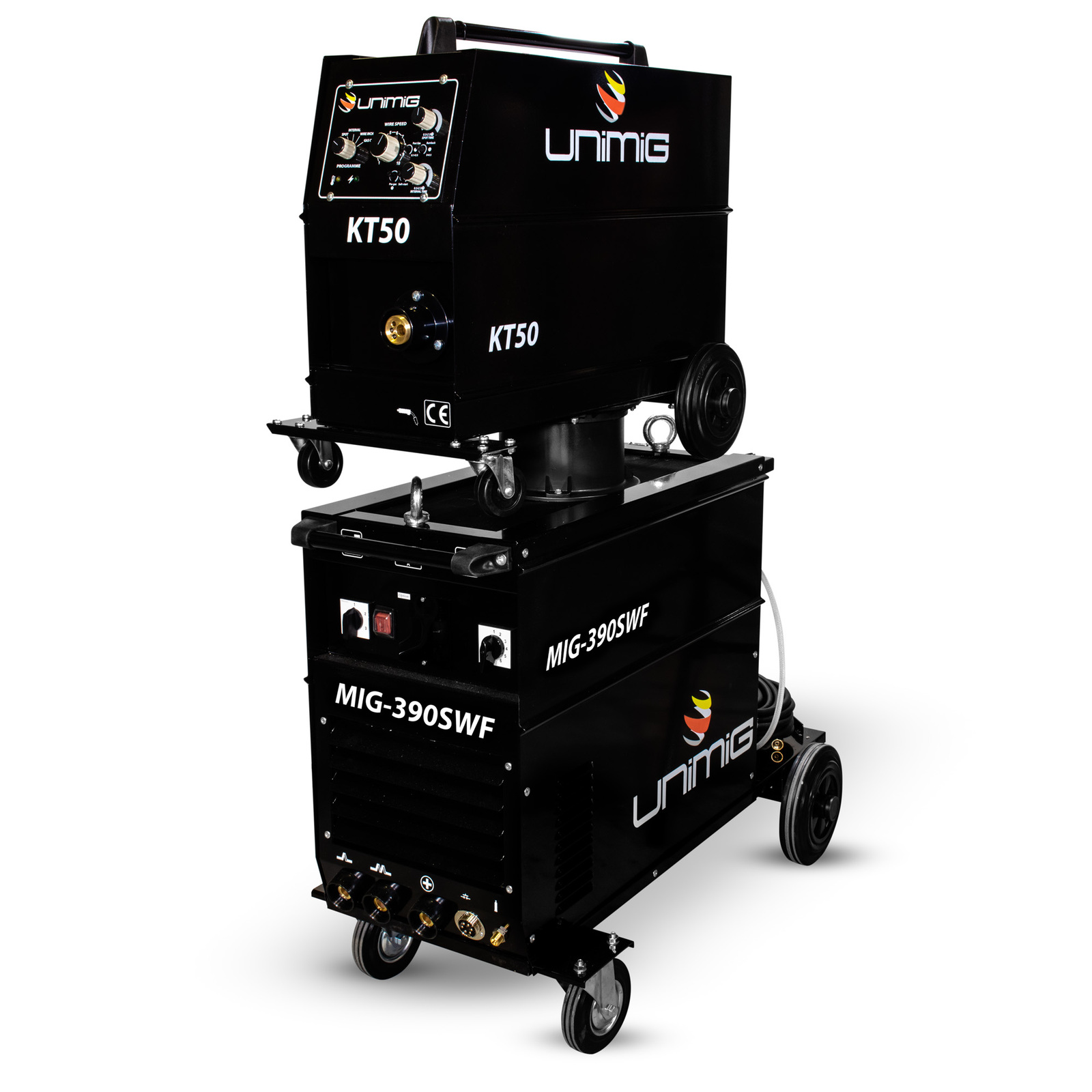

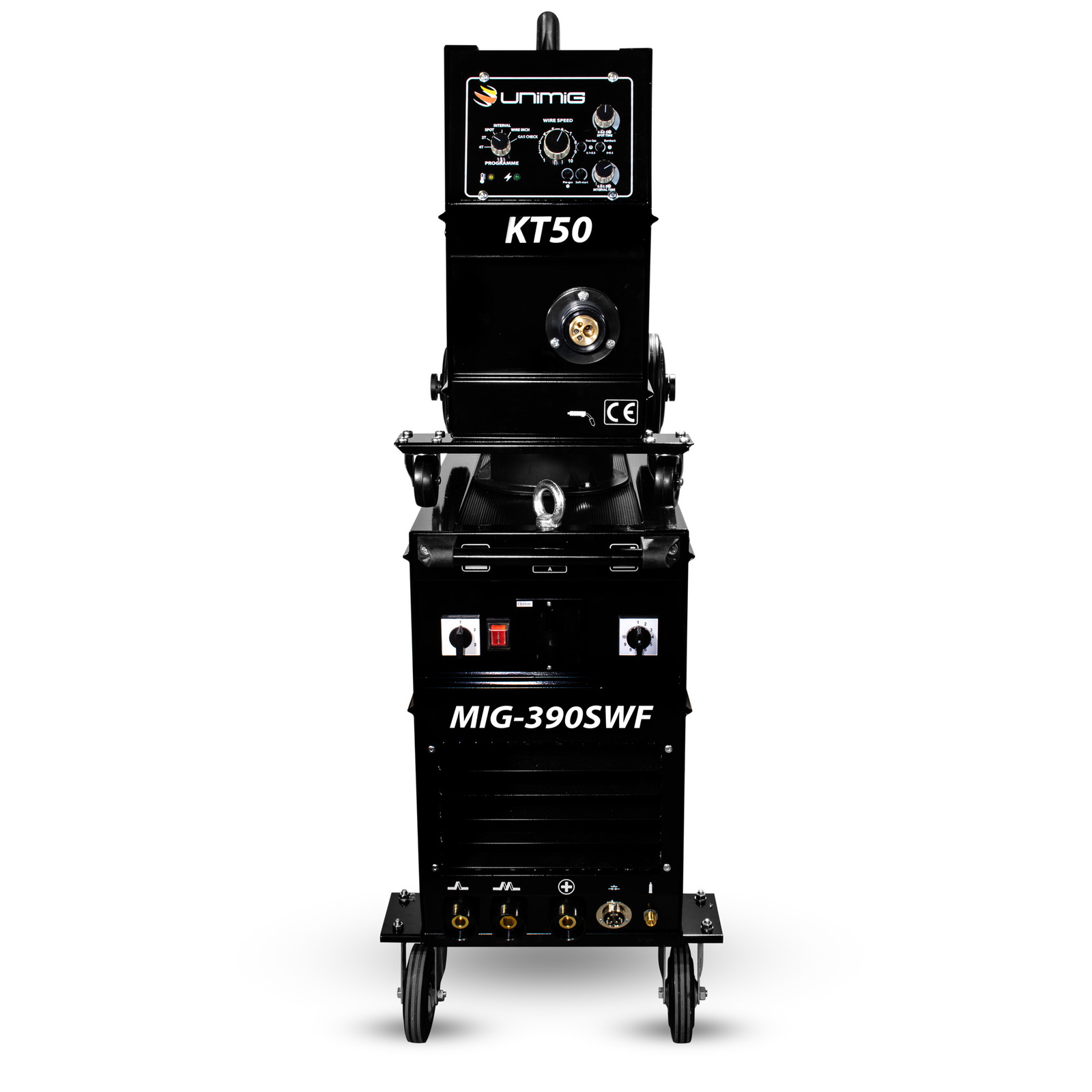

The UNIMIG Workshop 390S/D SWF is packaged ready to weld and includes,
- 1 x Workshop 390S/D SWF Power Source
- 1 x KT50 Wire Feeder
- 1 x 4 metre SB36 MIG Torch
- 1 x 10 metre 50mm Earth Lead
- 1 x 10 metre Interconnecting Cables
- 1 x UNI-MIG Twin Gauge Argon Regulator
- 1 x 2 metre gas hose
- 1 x Instruction Manual
** Product comes with a nationally recognised 3 year warranty through any UNIMIG Dealer **
(KUM390SWF)
| SKU | KUM390SWF |
| Brand | UNIMIG |
| Shipping Weight | 54.0000kg |
| Shipping Width | 0.630m |
| Shipping Height | 0.420m |
| Shipping Length | 0.235m |
UNIMIG is pleased to offer a 3-year warranty on all WORKSHOP Machines*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
