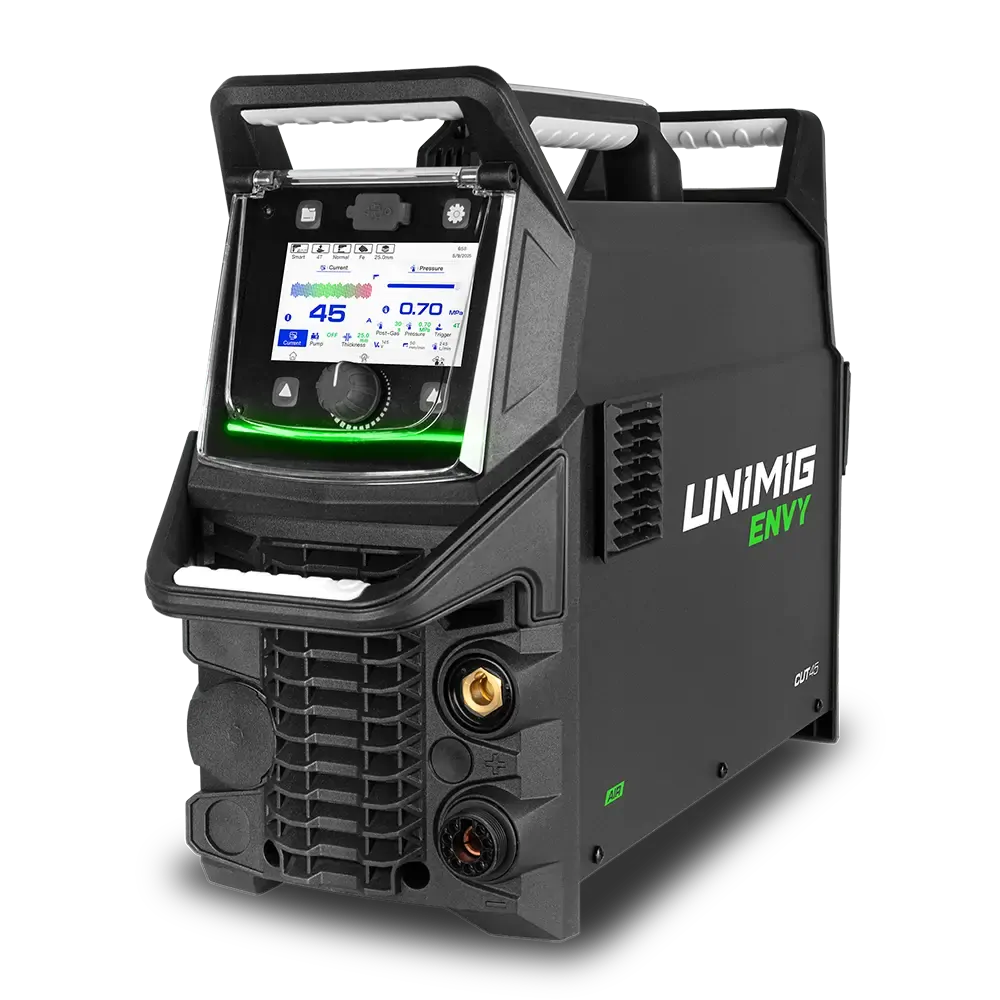

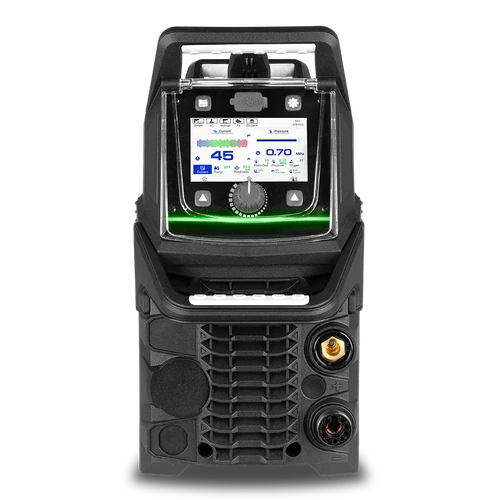

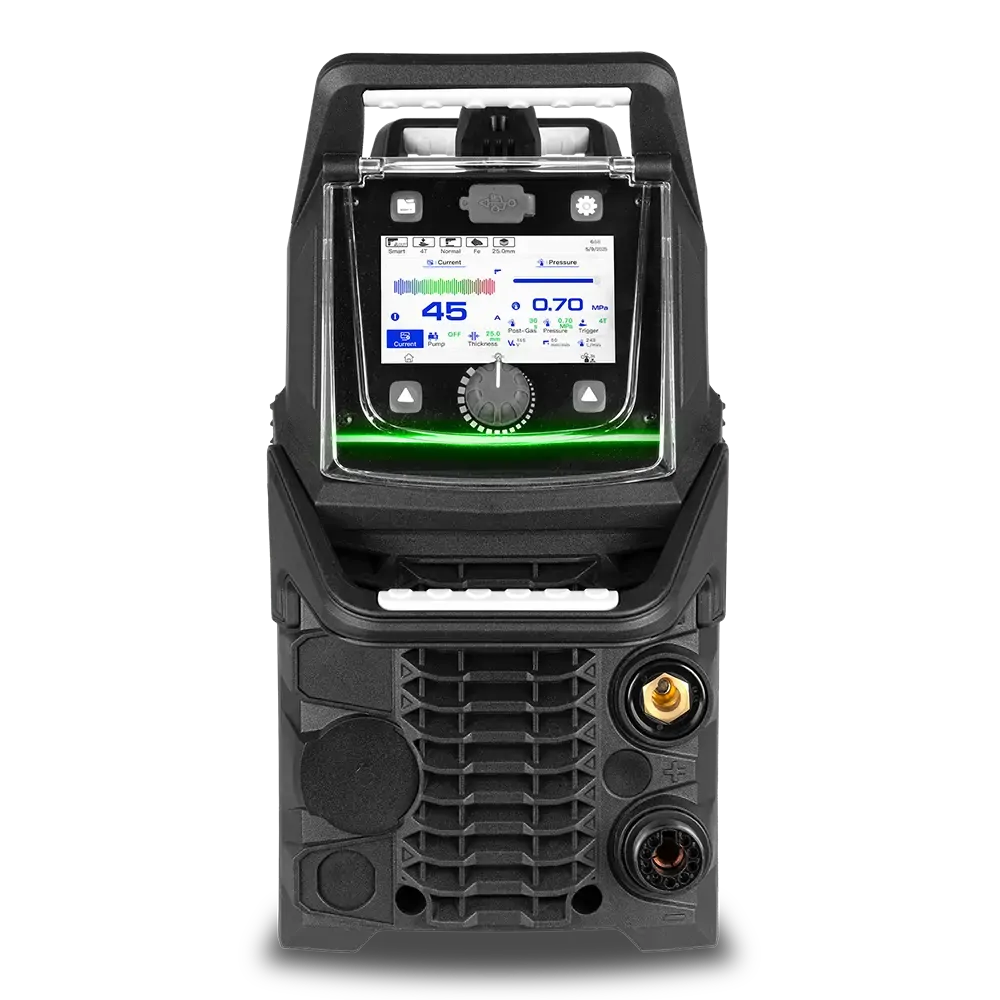

UNIMIG ENVY CUT 45 AIR Plasma Cutter

UNIMIG ENVY CUT 45 AIR Plasma Cutter

A professional-grade plasma cutter that gives you the ultimate flexibility, perfect for the workshop or a worksite.

Features:

• The built-in air compressor lets you take this machine anywhere
• 20mm clean cuts and 25mm cutting capacity
• The CNC connection means you can use this machine for every kind of plasma application
• Includes smart-set programs: solid or perforated
• Cutting capacity: Mild steel, Stainless Steel and Aluminium
• Built in automatic air pressure control
• Pilot arc start that protects your consumables for long life
• Smart fan technology with noice reduction features

In the box:

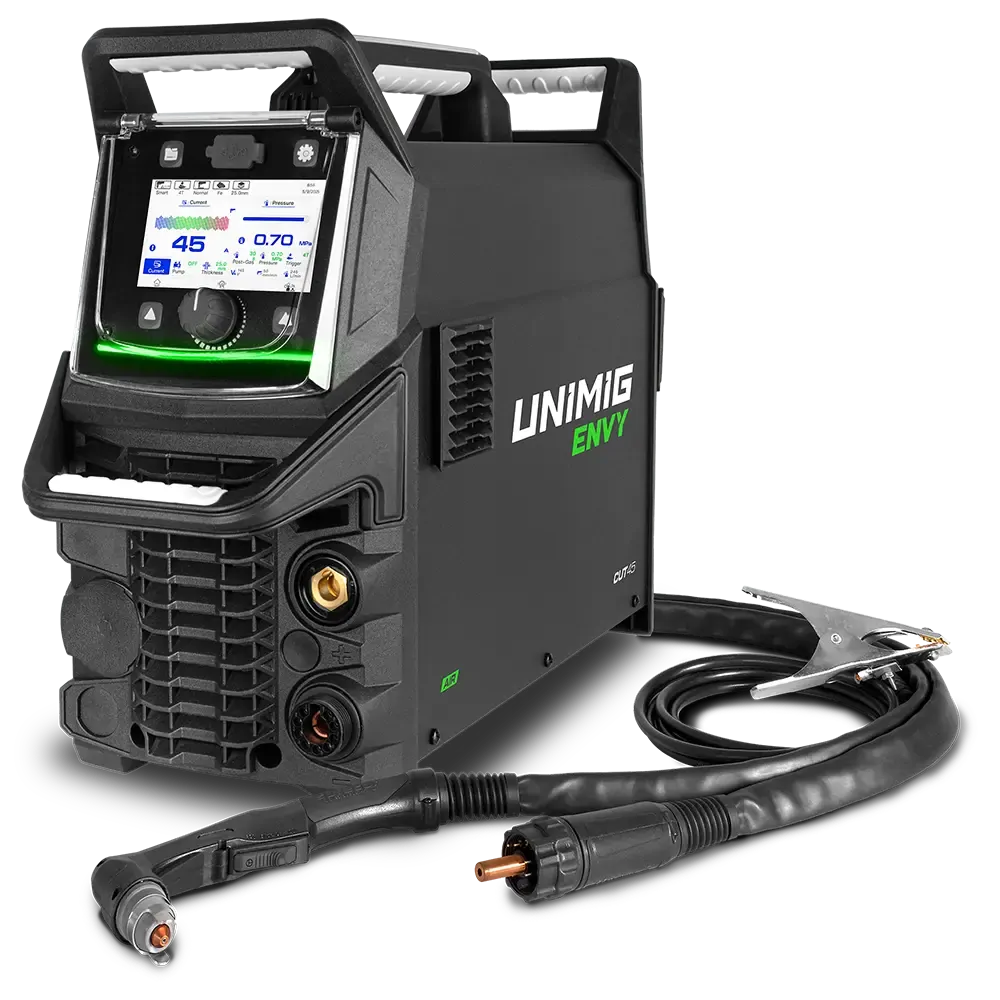

• ENVY CUT 45 AIR Plasma Cutter
• 6m SC80 Plasma Torch
• 4m 300A Earth Clamp & Lead
• Operating Manual

Machine Specifications:

• Primary Input Voltage: 240V Single-Phase
• Supply Plug: 15A
• Ieff (A): 14.5
• Imax (A): 26.5
• Air Flow Draw: 190–245 L/min
• Air Flow Pressure:
• 65.27–87.02 psi
• 4.5–6.0 bar
• 0.45–0.6 MPa
• Open Circuit Voltage (OCV): 380.0
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator Requirement: 10.0 kVA
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Warranty: 5 Years
• Dimensions (L × W × H): 665 × 220 × 425 mm
• Weight: 23.10 kg

Plasma Specifications:

• Plasma Cut Current Range: 20–45A
• Plasma Cut Duty Cycle @ 40°C:
• 30% @ 45A
• 60% @ 32A
• 100% @ 25A
• Mild Steel Cut Thickness: 20 mm
• Mild Steel Severance Thickness: 25 mm
• Stainless Steel Cut Thickness: 18 mm
• Aluminium Cut Thickness: 14 mm
• Copper Cut Thickness: 8 mm
