Kemppi 235 Amp MasterTig ACDC Water Cooled TIG Welder - MT235ACDCGMAU

About Kemppi MasterTig 235 AC/DC Single Phase Tig Welder MT235ACDCGM

MasterTig 235 Ac/Dc sets new standards for weld quality, usability, and power efficiency in AC and DC TIG welding. Designed for professional welders, the MasterTig product family offers a choice of power variants up to 300 A. Its modular design philosophy allows you to build the specification that best meets your needs, including alternative control panels, wireless remote controls, and transport cart options.

Stylish, practical and robust, the MasterTig absorbs the knocks of everyday welding life. The compact-sized welding equipment is constructed from tough yet lightweight injection molded plastic, featuring impact bridge protection structures. Flexible and durable Flexlite TX TIG torches are readily equipped to fit MasterTig to maximize welding comfort.

Professional multi-voltage ACDC TIG welder, delivering 230 A from a 1-phase 230 V power supply. Suitable for generator use. VRD is locked on, meaning this model is specifically for the Australian market.

Features:

• Double Pulse combines alternative pulse cycles for 30% faster welding speed and 20% reduced heat input. Lowering distortion levels and weld costs, Double Pulse is ideal for DC hand welding and mechanized applications and offers superb weld seam appearance.
• Optima AC is a customized AC TIG waveform that combines the best of the traditional sine and square waveforms – and adds a touch of magic for the optimal AC welding experience. Depending on the application, you’re free to choose either sine, square, or the quiet one: Optima AC.
• MicroTack offers fast and accurate tacking with minimum heat input in both DC and AC TIG welding. Ideal for multiple, repetitive tacking on thin sheet applications, where a consistent and controlled appearance is paramount. MicroTack can be set between 1 to 5 repeat pulse cycles or continuous cycle mode. The welding current level is set independently and tharc cycle time selected between 1 to 200 ms
• iTEC is engineered ignition technology for reliable arc starts. Particularly useful with long torch extensions for site welding or precise thin materials and low current applications, yoU can set the variable spark force energy

Specifications:

• MasterTig 235ACDC GM AU
• Product code: P0223
• Connection voltage: 1~ 50/60 Hz 110 / 240 V ±10 %
• Fuse: 15 A
• Stick electrode sizes: 1.6…5.0 mm
• Recommended generator power: (min) 8 kVA
• Open circuit voltage (average): 23 V (locked to VRD)
• Operating temperature range: -20…+40 °C
• External dimensions: LxWxH 544 x 205 x 443 mm
• Weight (no accessories): 19.1 kg
• Degree of protection: IP23S
• Standards: IEC 60974-1,-3,-10 / IEC 61000-3-12 / AS 60974.1-2006 / GB 15579.1
• EMC class: A
• Check the brochure in this listing to know more technical data

This listing includes:

• MT235ACDCGMAU power source

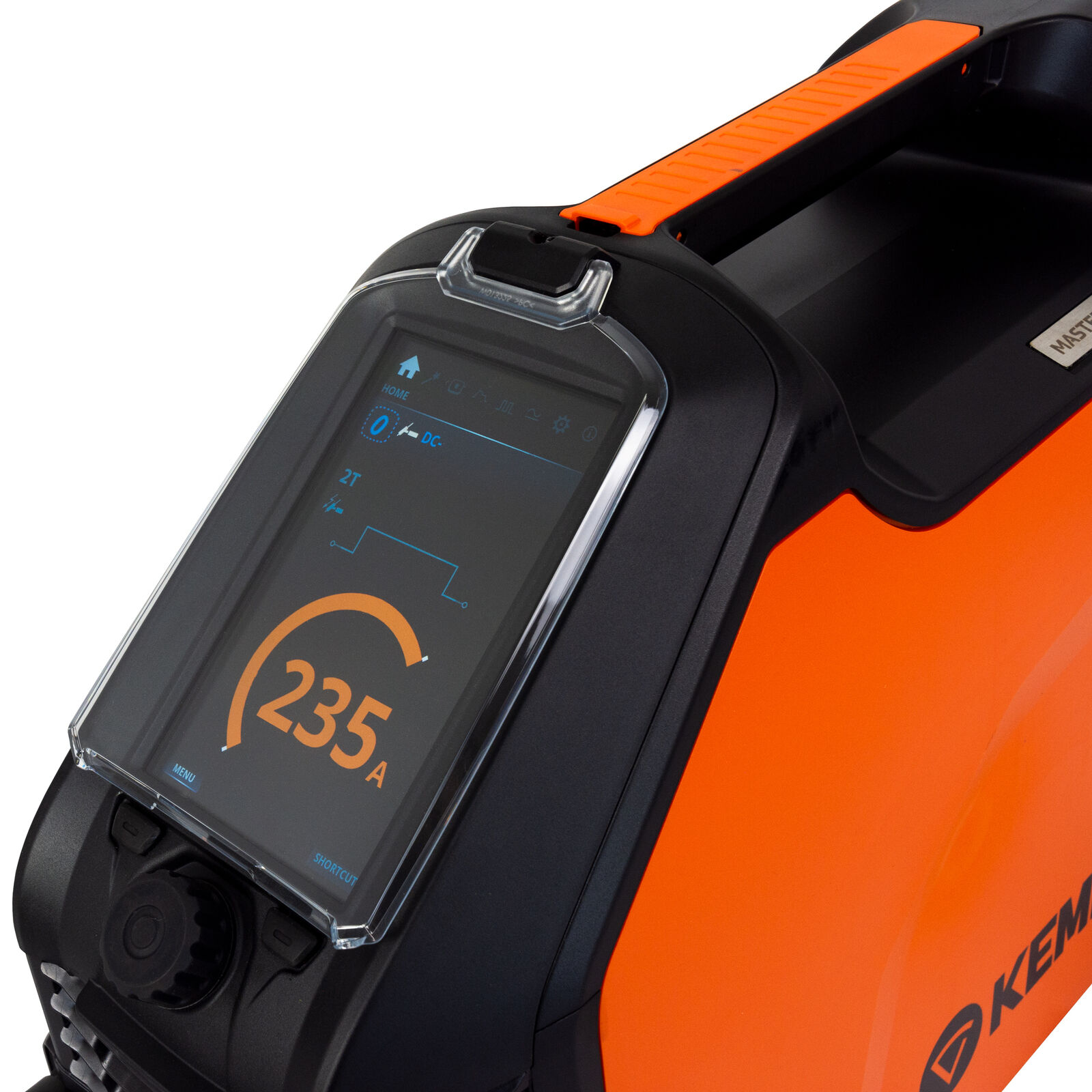

• MTP35x Control panel
• TX35W8 Water-cooled 8 metre TIG torch
• 5 Metre 35mm2 earth cable

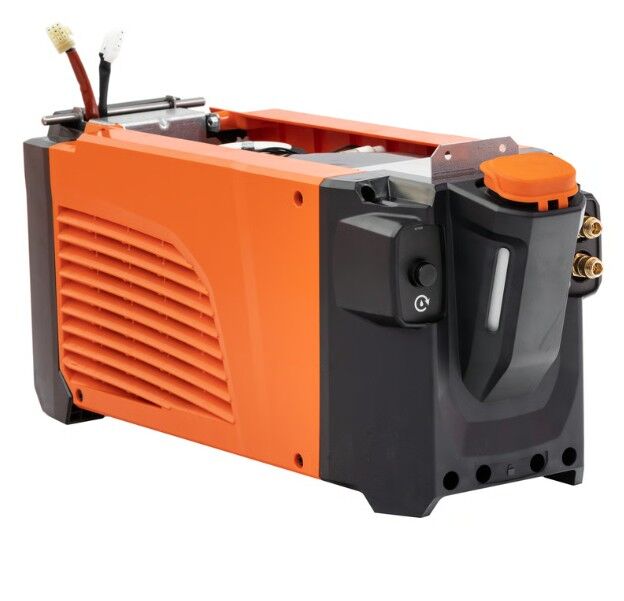

• MTC1KWM - MasterTig water cooling unit
• Trolley not included - If you require a trolley, please let us know - Part No. P45MT
