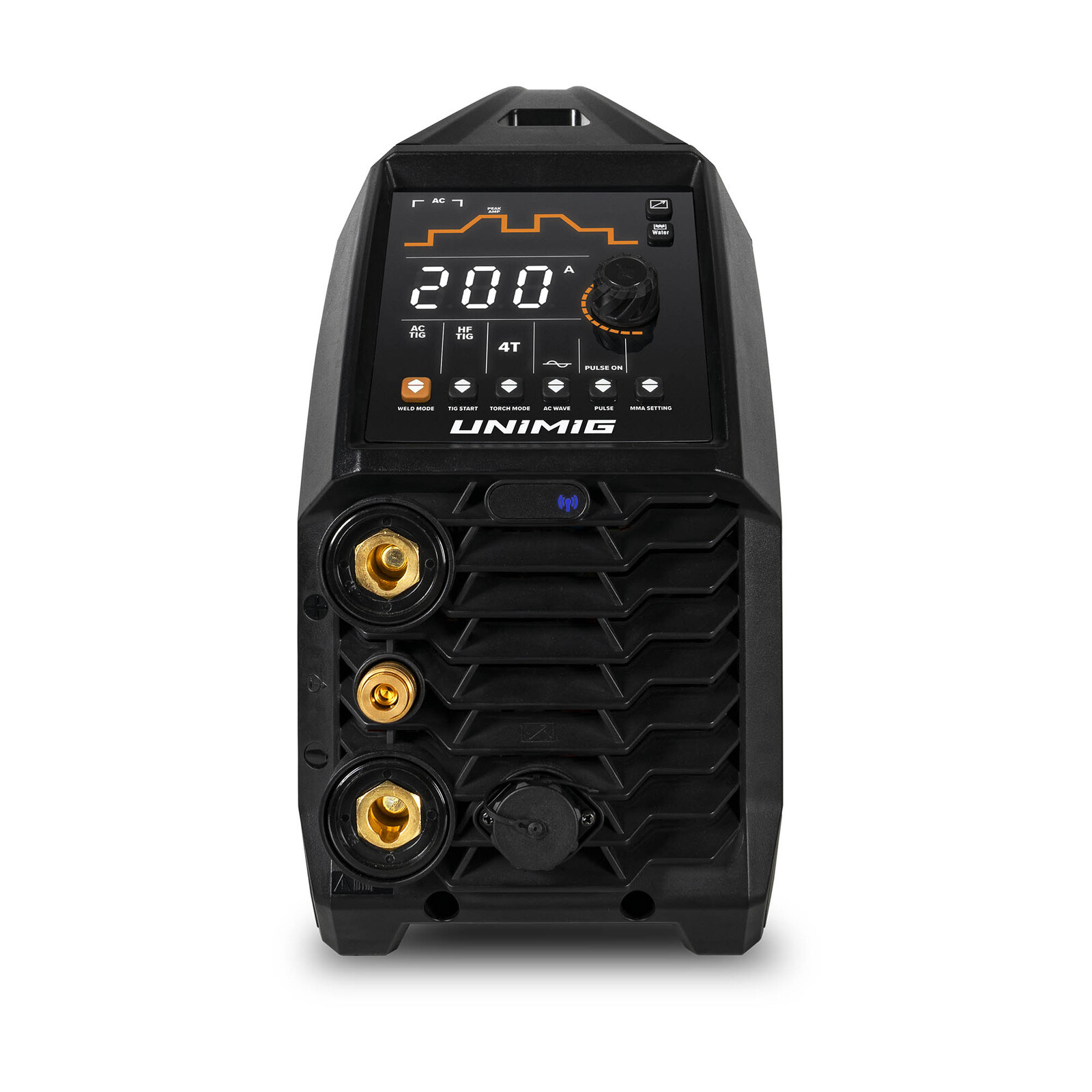

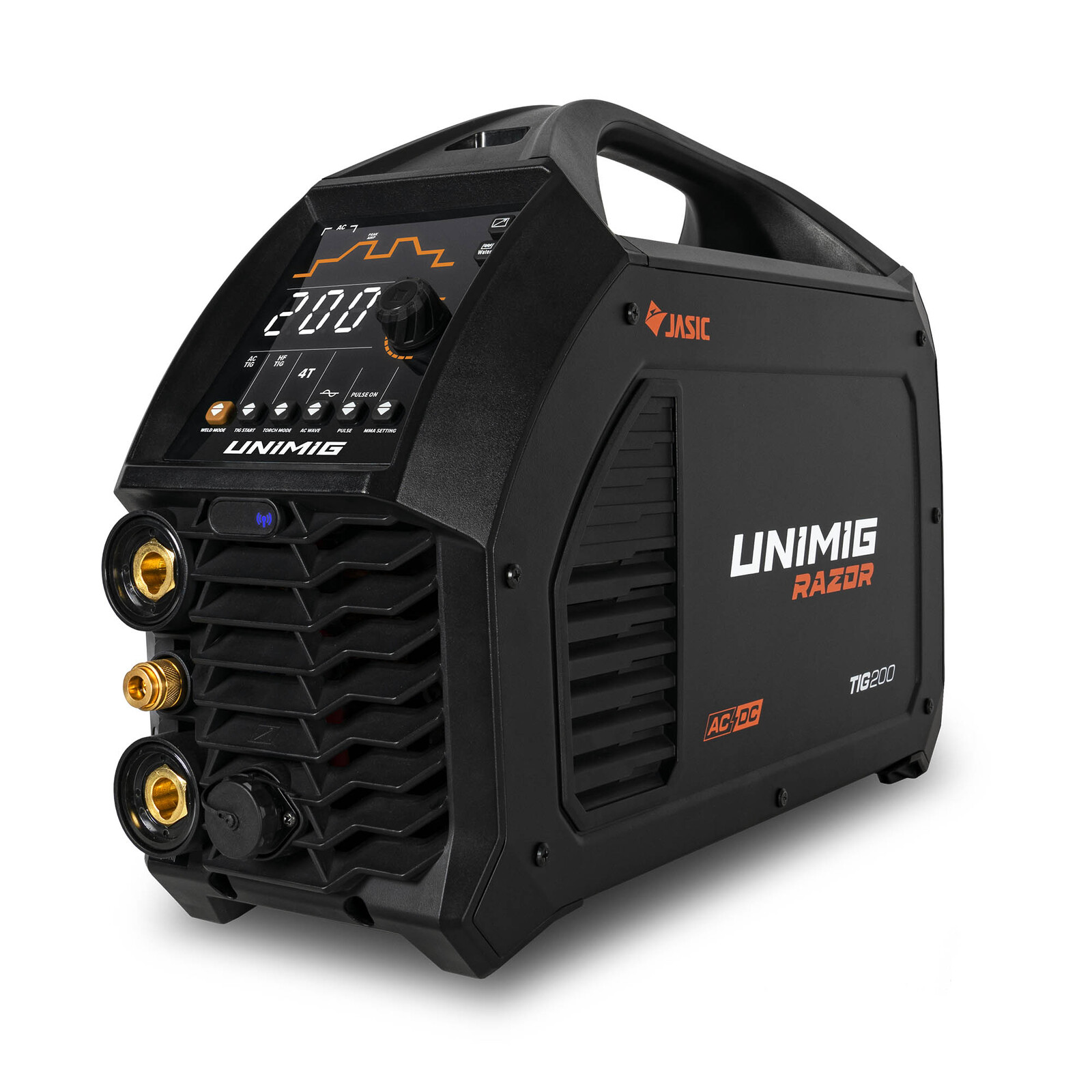

NEW UNIMIG Razor Digital Pulse ACDC 200 Amp Inverter TIG Welder U12002K
240V ACDC Aluminium TIG Welder

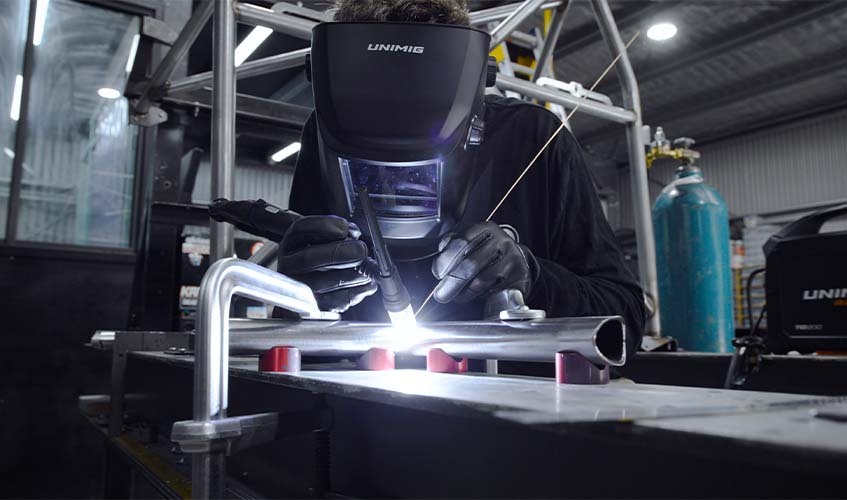

The RAZOR™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 10 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

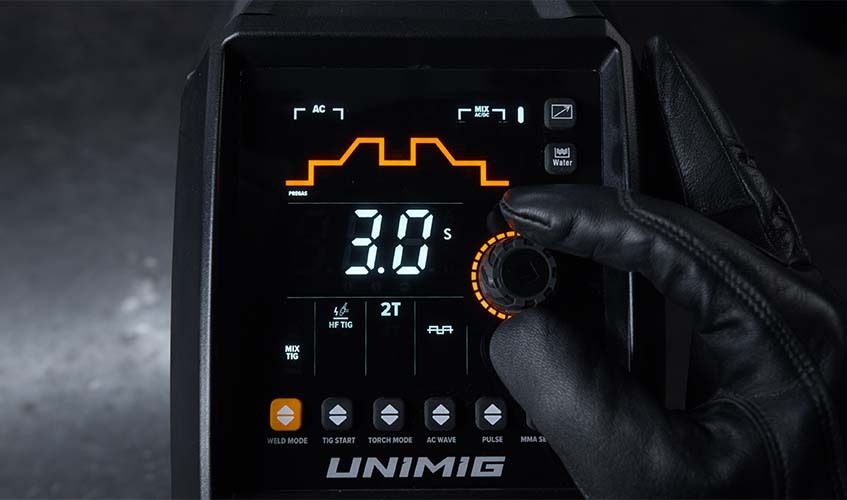

Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.

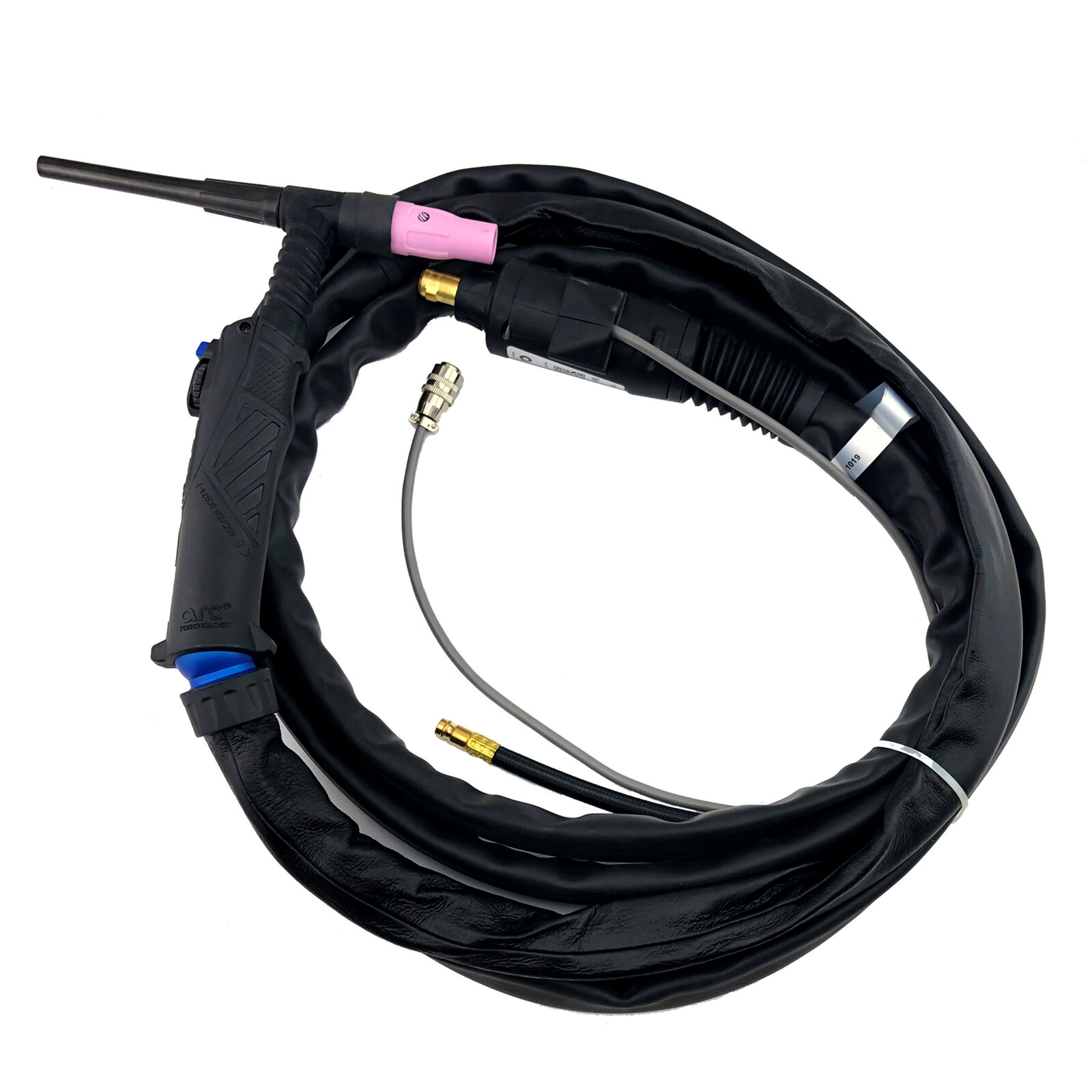

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the RAZOR™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.
High Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the work piece reducing the risk of contaminating the tungsten or the weld.
Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.
This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.
To run this machine, you'll need to use the UNIMIG 8m 360 Amp Air Cooled Push Pull MIG Torch Gun (Part # U41002) which is available in our website!
Key Features:
- Latest 43KHz Inverter Technology
- AC/DC HF TIG/MMA Function
- Arc Ignition HF Oscillation
- AC Square Wave 20 - 250Hz
- AC Balance Control Adjustable
- Pulse Frequency 0.2 - 200Hz
- Pulse Width 10 - 90%
- Base Current 5 - 200A
- Up Slope 0 -10 sec
- Down Slope 0 -15 sec
- Pre Gas 0 - 3 sec
- Post Gas 0.5 -15 sec
- Trigger Function 2/4T-Spot
- MMA - Arc Ignition Current Automatic
- Arc Ignition Time Automatic
- Foot control connection
- Voltage Reduction Device
- Arc Force Current 0 - 40A
- Remote Amperage Foot & Hand Control
Machine Specifications:
- Product Number U12002K
- Primary Input Voltage: 240V Single Phase

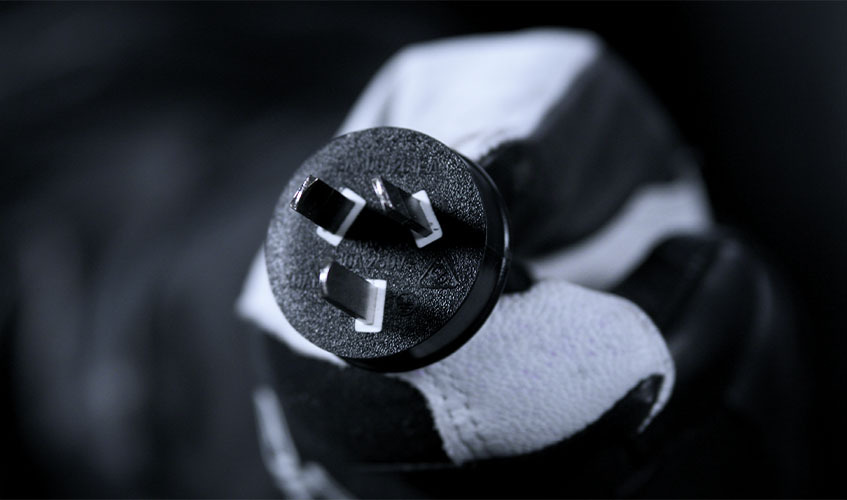

- Supply Plug: 10 AMP
- Ieff (A): 9.8
- Rated Output: 5-200A
- No Load Voltage (V): 65
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 8.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
- Suitable Material:
- TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
- MMA: Mild Steel, Stainless Steel, Cast Iron
TIG Specifications:
- TIG Function Type: AC/DC HF TIG & AC/DC Pulse
- TIG Welding Current Range: 5-200A
- TIG Duty Cycle @ 40°C: 20% @ 200A, 60% @ 115A, 100% @ 90A
- TIG Welding Thickness Range: 1-8mm
STICK Specifications:
- Stick Welding Current Range: 20-160A
- Stick Duty Cycle @ 40°C: 15% @ 160A, 60% @ 80A, 100% @ 62A
- Stick Electrode Range: 2.5-4.0mm
- Stick Welding Thickness Range: 2-10mm
Size and Weight:
- Dimensions (mm): 500×170×340mm
- Weight (kg): 11.7

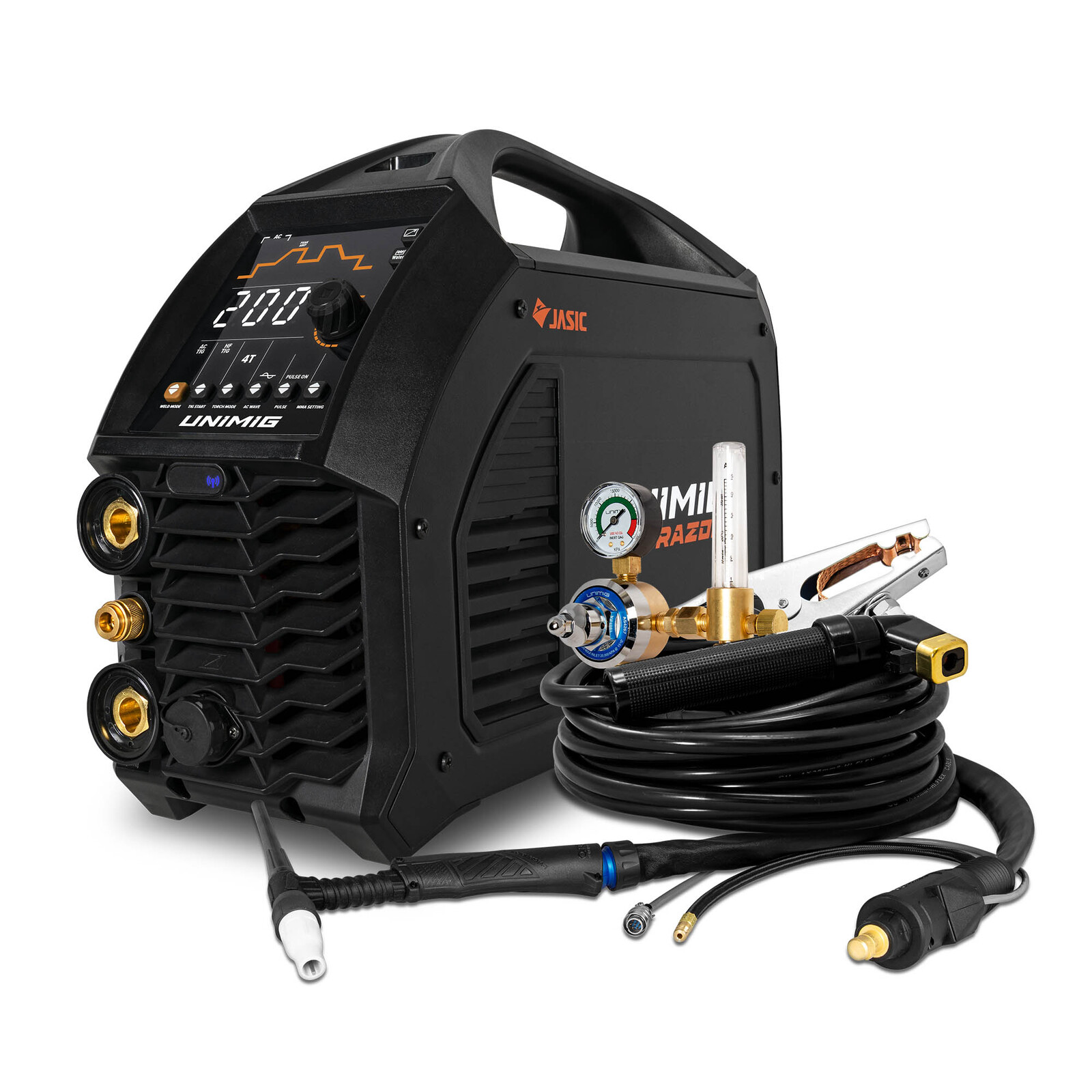

The UNIMIG Razor TIG 200 AC/DC Welder includes:
- RAZOR TIG 200 AC/DC Welder
- 8m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 1.8m Gas Hose with fittings
- Operating Manual
** Product comes with a nationally recognised 5 Year warranty through any UNIMIG Dealer **
(U12002K)
SKU | U12002K |
Model # | KUMJRRZ200ACDC |
Barcode # | 9333521032801 |
Brand | UNIMIG |
Shipping Weight | 19.2000kg |
Shipping Width | 0.370m |
Shipping Height | 0.340m |
Shipping Length | 0.520m |
** Product comes with a nationally recognised 5 year warranty through any UNIMIG Dealer **
Help other Hampdon Industrial Pty.Ltd users shop smarter by writing reviews for products you have purchased.
- 1 x RAZOR 200AC/DC Machine
- 1 x 8m High-Performance T2 TIG Torch with Flex Head
- 1 x 4m Earth Lead
- 1 x 4m Arc Lead 25mm Cable
- 1 x UNI-FLAME Argon Regulator
- 1 x 1.8m Gas Hose with Fittings
