Furick #8 PRO Precision Pyrex TIG Cups - 4 Pack - 8PRO4

Furick #8 PRO Precision Pyrex TIG Cups - 8PRO4 - Made in the USA

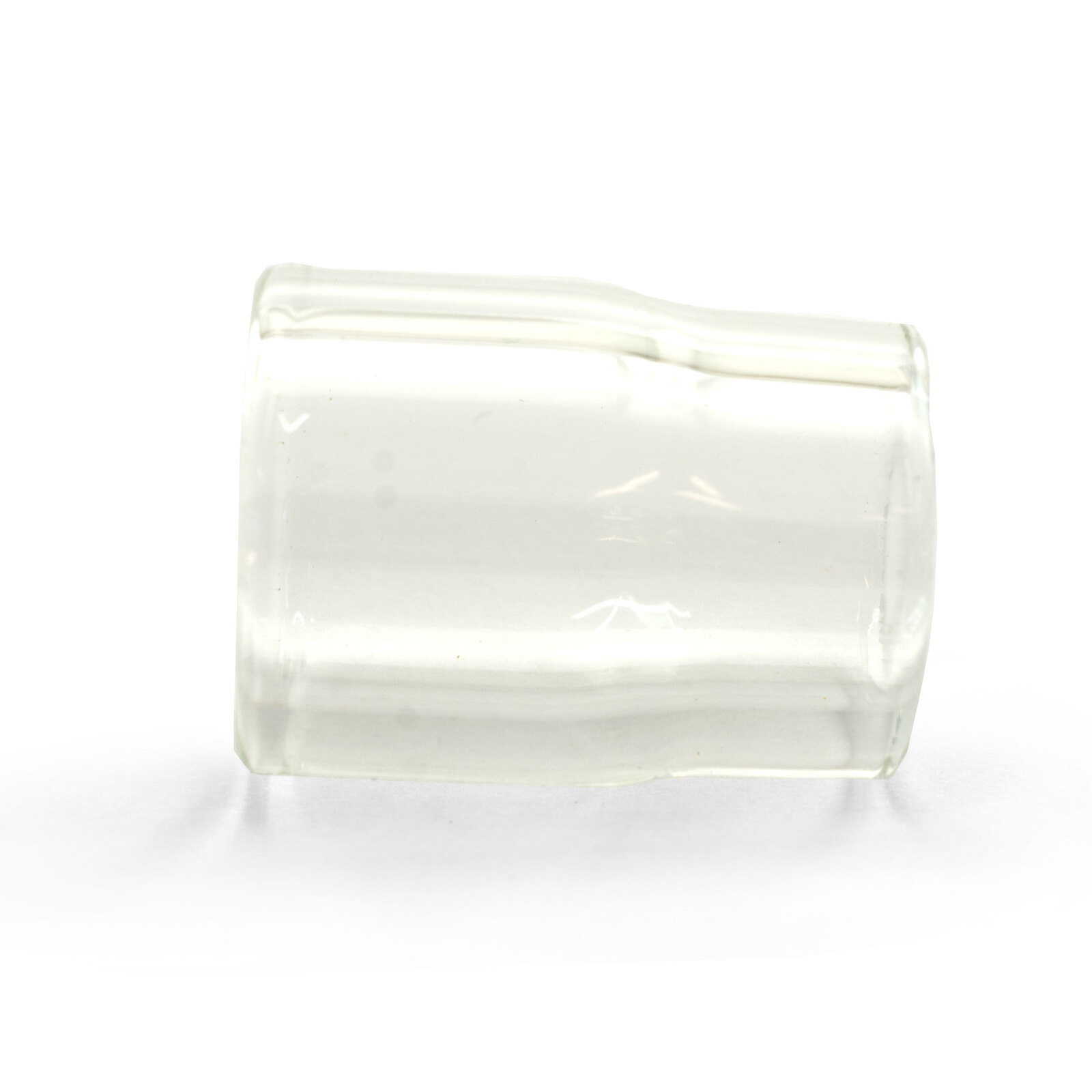

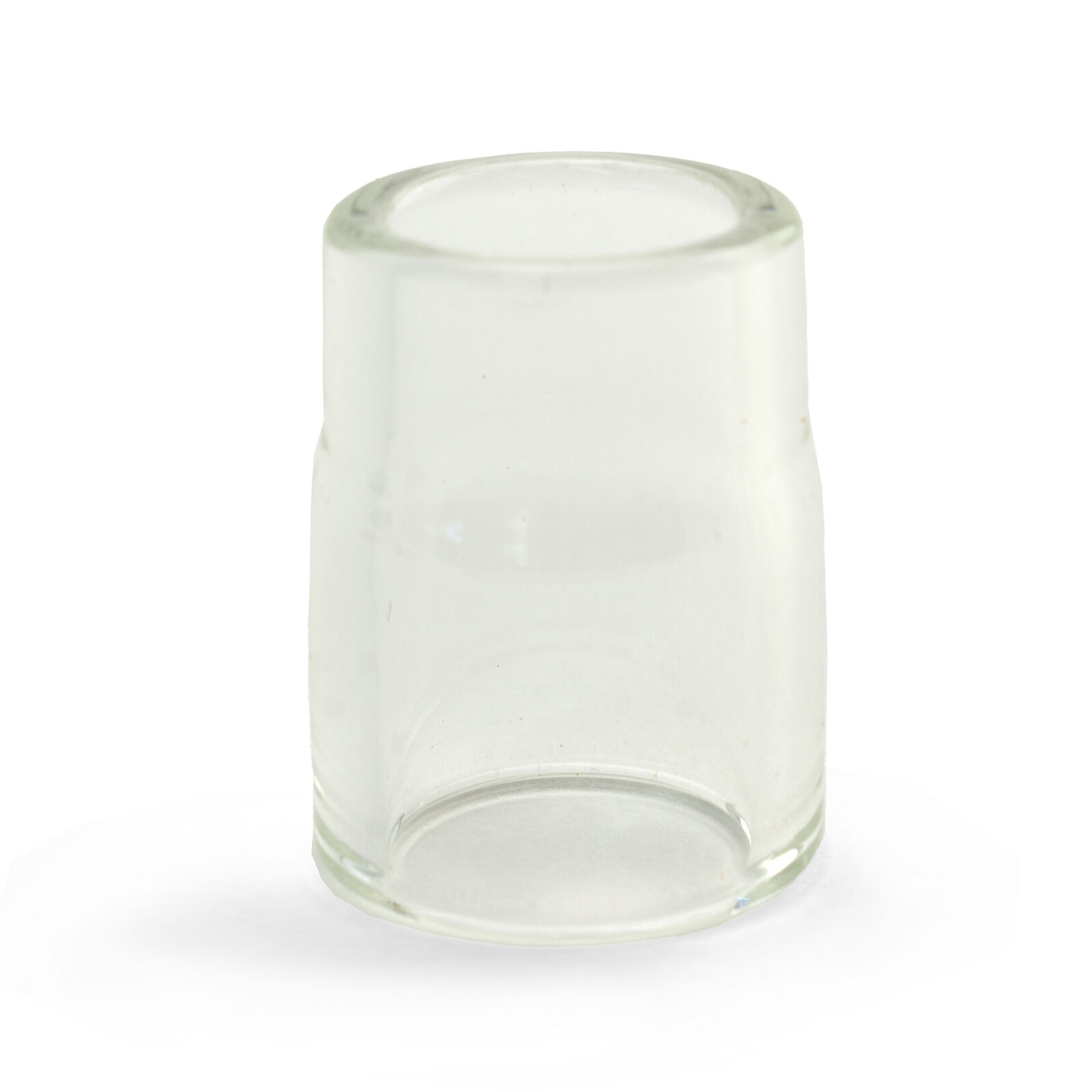

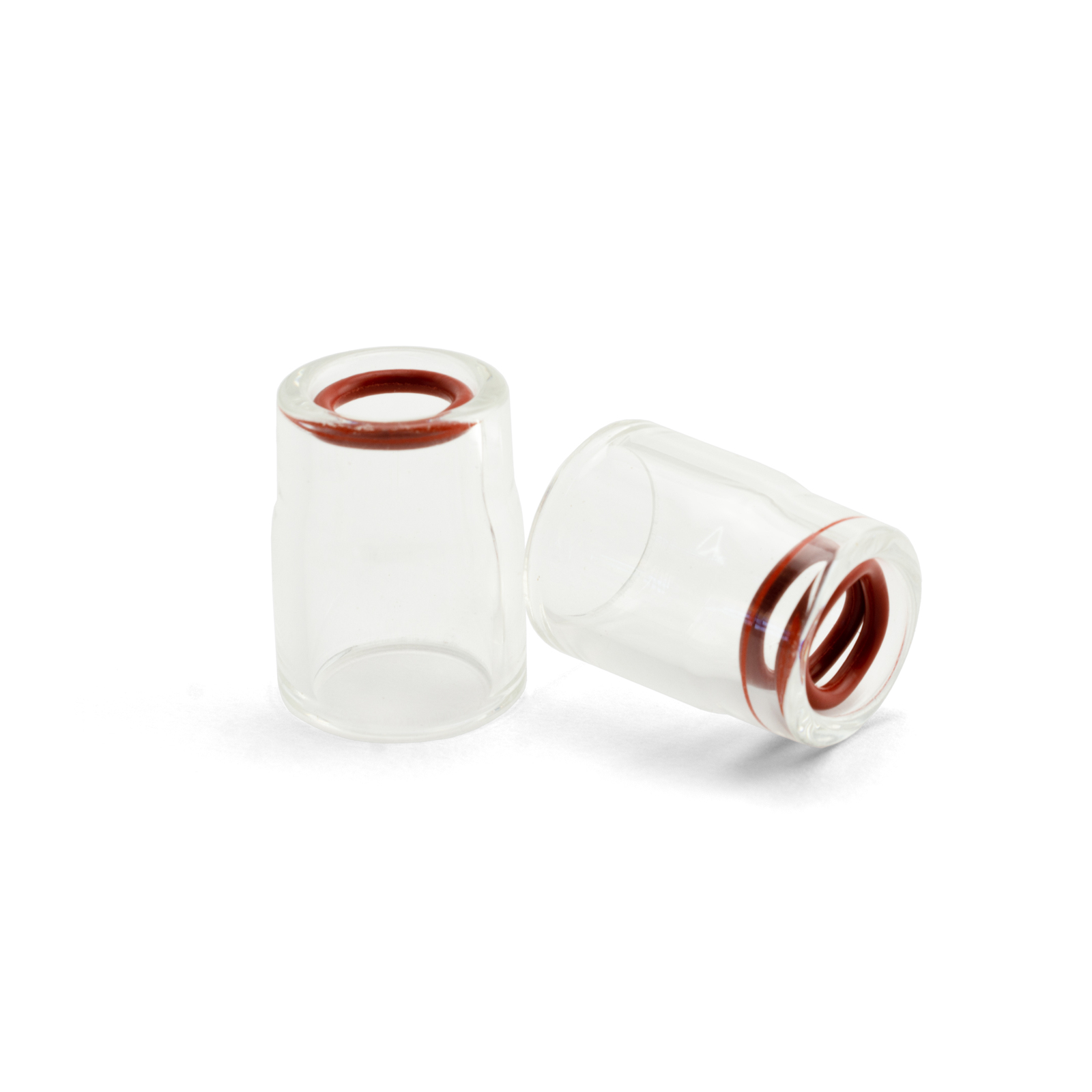

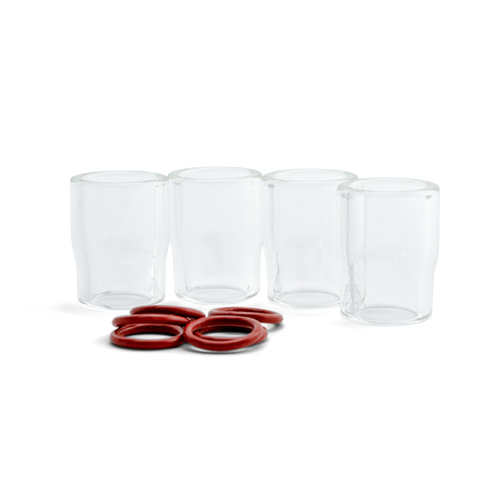

The PRO #8 Pyrex Cup includes 4 pyrex cups and a spare diffuser. It performs exceptionally well on mild steel with about 20-25CFH (8-12lpm). This cup will slip on a 45V44 or the Furick gas lens 33217GL / 11617GL. This kit requires Orings.

9|20 Torch mounting – 45V43-1/16 - 45V44 – 3/32  45V45 – 1/8

17 |18 |26 Torch mounting – 11617GL – Stubby 1/16  gas lens - 33217GL -  Stubby 3/32 gas lens  12517GL – Stubby 1/8th  gas lens

(Note with 17,18 and 26 torches you will need the stubby collets and the insulators to match)

Features:

• Furick 8 Pro pyrex Cup
• 4 Each
• Made in the USA
• For use with a standard 17 / 26 series torch the cup will require a gas lens 11617GL (for 1.6mm tungsten) or the 33217GL (for 2.4mm tungsten)
• For use with a standard 9 / 20 series torch the cup is compatible with a standard gas lens' (pn: 45V43, 45V44, 45V45)

Dimensions:

• Bore ID at Torch Head: 14.3mm
• Length: 25.4mm
• Glass Thickness: 2.8mm
• Gas Lens Mesh Bore: 12.7mm
