UNIMIG Razor 250 Compact MIG Multi-Function Welder - TIG - MMA - U11010K
Part # U11010K
Rated 5/5 based on 1 reviews.FREE SHIPPING APPLIES TO METRO CITIES (Sydney, Melbourne, Brisbane, Perth)
If the order is placed outside these metro areas we will contact you with the additional freight charge.
The UNIMIG Razor Compact 250 Welder is an inverter-based portable Mig welding machine with added MMA and TIG function. The MIG function allows you to weld with both Gas Shielded and Gasless wires.
Easy stepless adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent professional welding results. Wire inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire stick out ready for the next weld.
MMA welding capability delivers easy electrode welding with high quality results, including cast Iron, stainless steel and low hydrogen. Connection of the 26V TIG torch provides quality DC TIG (Lift Arc) welding of mild steel, stainless steel and copper.
Being 240v single phase gives great portability, providing more flexible use for site and home workshop locations. Ideal for general engineers, maintenance workshop, rural workshop, panel beaters and home workshops.
*Please note: Due to the size of this item, the free delivery is to the Australian major cities metropolitan areas. If you are outside of the metro area, we may contact you for a small additional freight charge*
Key Features:

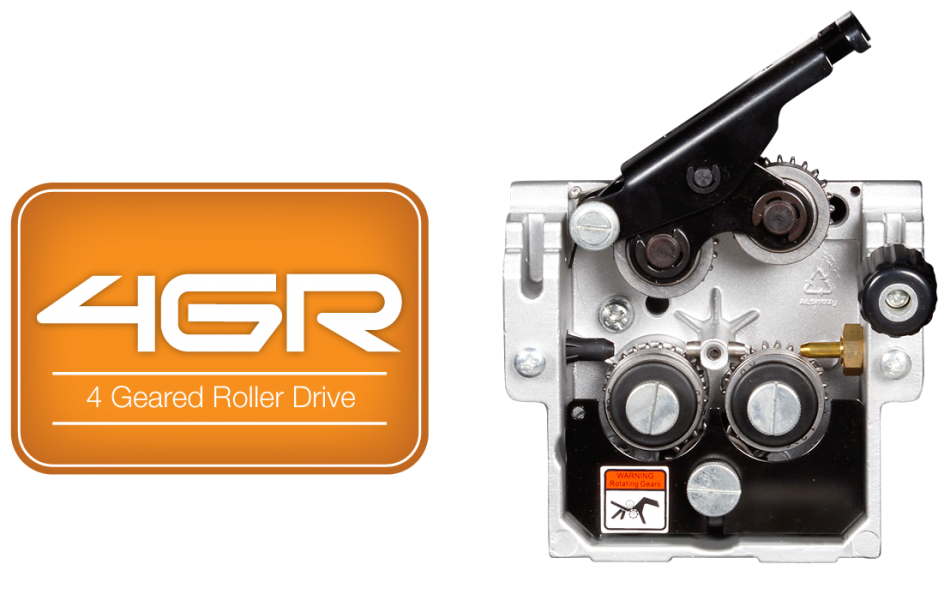

- 4 Geared Wire Drive
- Latest IGBT inverter technology
- MIG/MAG with Gas and Gasless wire function
- MMA
- DC TIG welding with Lift Arc Start
- Industrial application
- Solid metal case construction
- Internal wire feeder, gear driven
- 5Kg and 15Kg Spools
- VRD (Voltage Reduction Device)
- Burnback Adjustment
- Euro style MIG torch connection
- IP21S rating for environmental / safety protection
- Tolerant to variable power supply

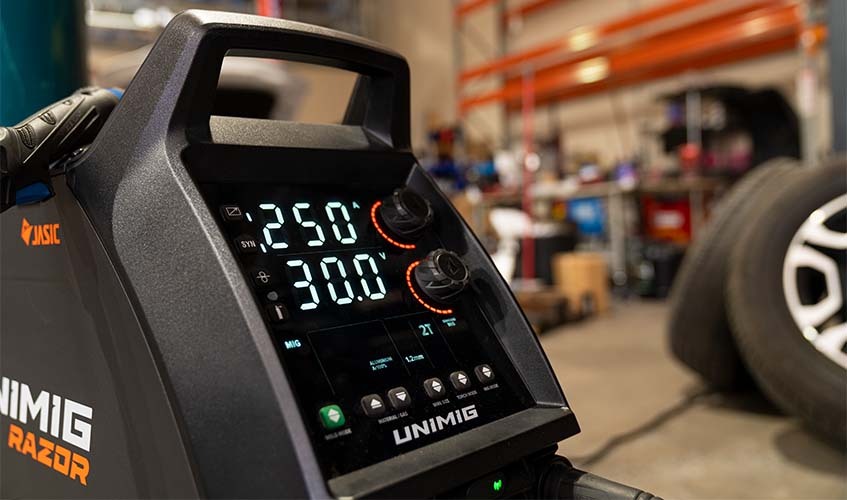

- Stepless voltage and wire feed control
- Excellent MIG welding with CO2 gas & mixed gas
- Excellent arc stability
- Thermal Overload Protection
- Inductance Control
- Spool Gun Connection
- Push Pull Gun Compatible
- Designed and built to our specifications.
- Certified to - AS/NZ60974.1
- 5 Year Warranty
Machine Specifications:
- Supply Plug: 15 AMP
- Ieff (A): 15.0
- Rated Output: 30A/15.5V - 250A/26.5V
- No Load Voltage (V): 65
- Protection Class: IP23S
- Insulation Class: H
- Minimum Generator (kVA): 11.0
- Dinse Connector: 35/50
- Standard: AS/NZ60974-1
- Suitable Material:
- MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
- MMA: Mild Steel, Stainless Steel, Cast Iron
- TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MIG Specifications:
- MIG Welding Current Range: 30-250A
- MIG Duty Cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
- MIG Wire Size Range: 0.6-1.2mm
- MIG Wire Spool Size: 5kg / 15kg
- MIG Welding Thickness Range: 1-12mm
- Drive Roller Size: 30/22 (x2)
TIG Specifications:
- TIG Function Type: Trigger Controlled DC Lift Arc
- TIG Welding Current Range: 5-250A
- TIG Duty Cycle @ 40°C: 20% @ 250A / 60% @ 144A / 100% @ 112A
- TIG Welding Thickness Range: 1-10mm
STICK Specifications:
- Stick Welding Current Range: 20-220A
- Stick Duty Cycle @ 40°C: 20% @ 220A / 60% @ 127A / 100% @ 98A
- Stick Electrode Range: 2.5-4.0mm
- Stick Welding Thickness Range: 2-12mm
Size and Weight:
- Dimensions (mm): 900×480×760
- Weight (kg): 41.3
Please note this machine will have a power lead but no plug. You will have to install your own plug depending on what power you have.

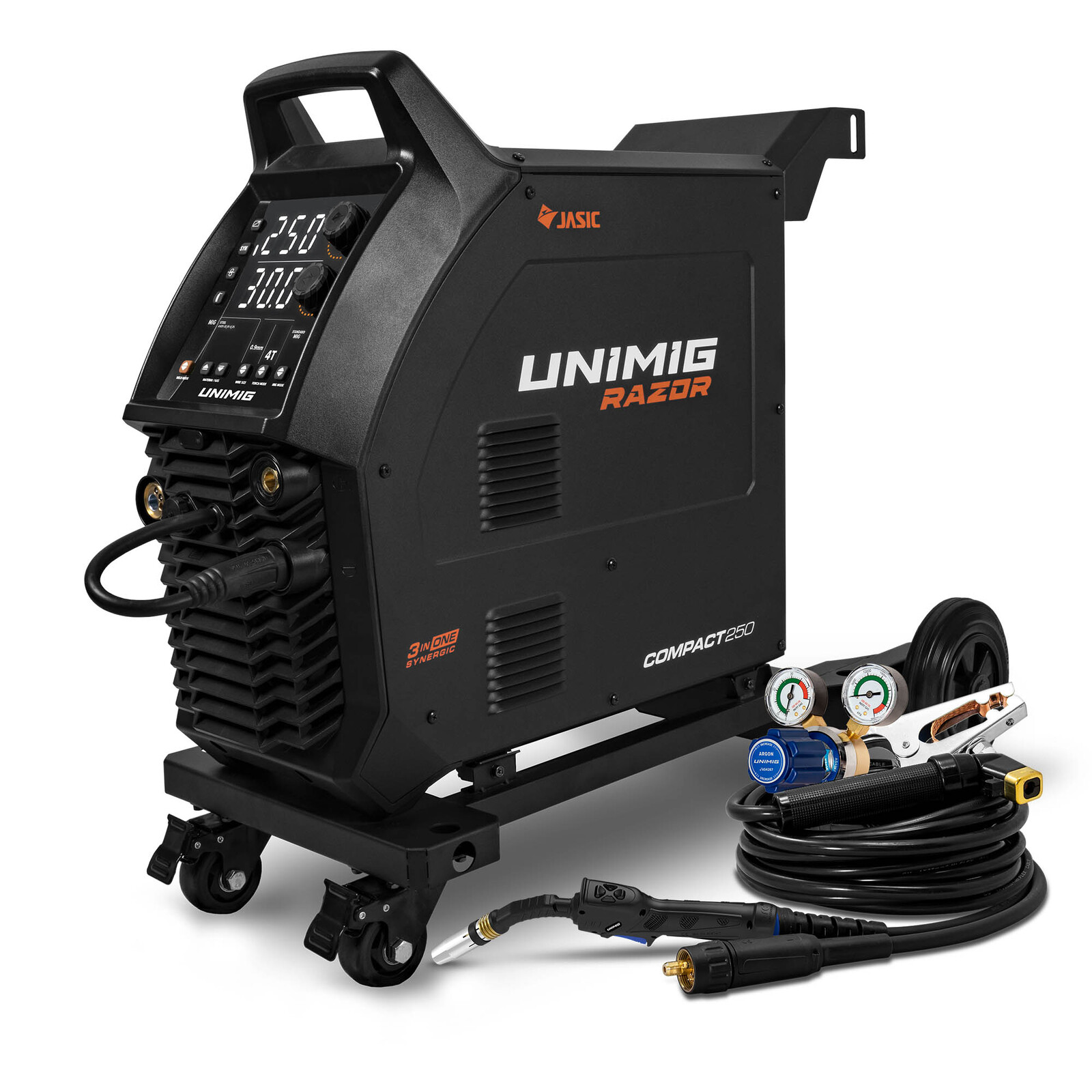

- RAZOR COMPACT 250 Welder

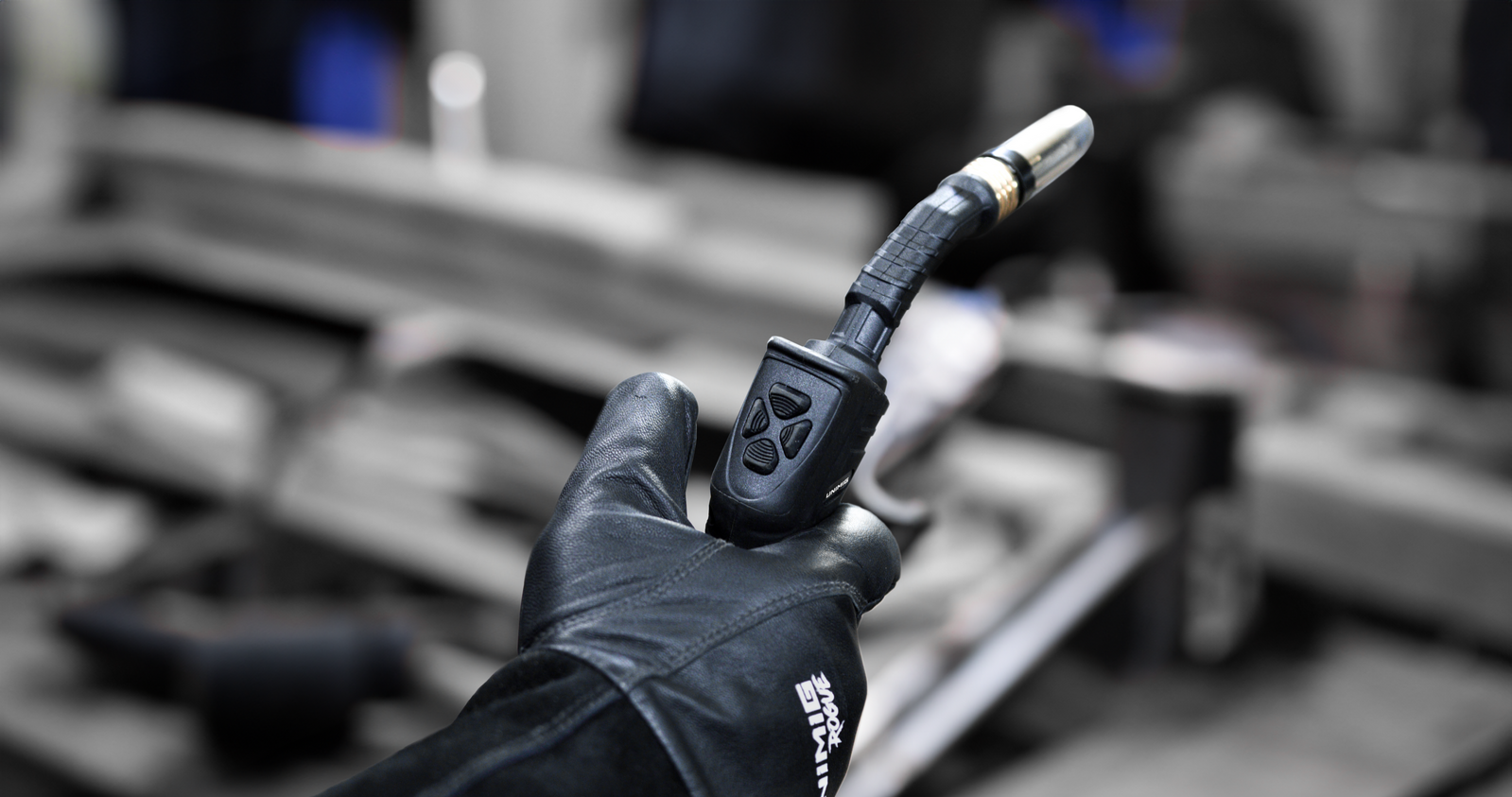

- 4m M24 Digital MIG Torch
- 4m Twist Lock Electrode Holder

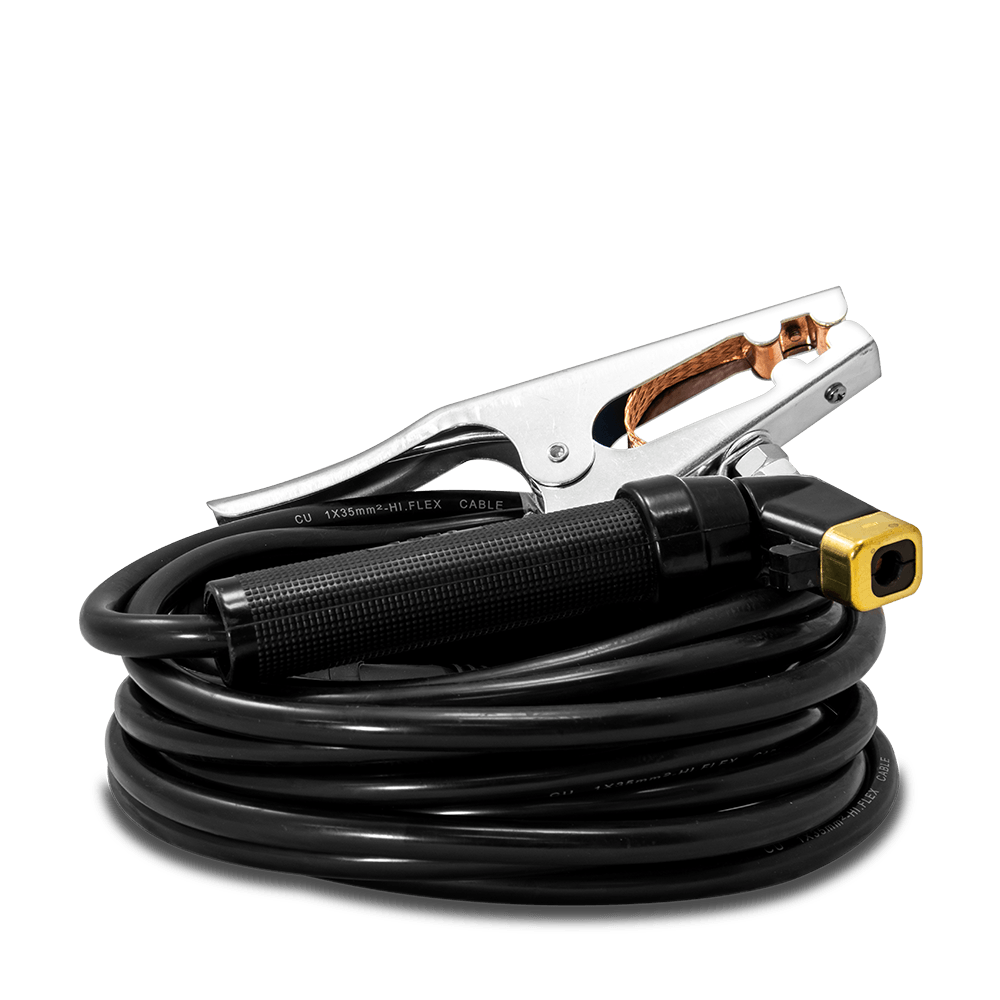

- 4m 300 Amp Earth Clamp & Lead

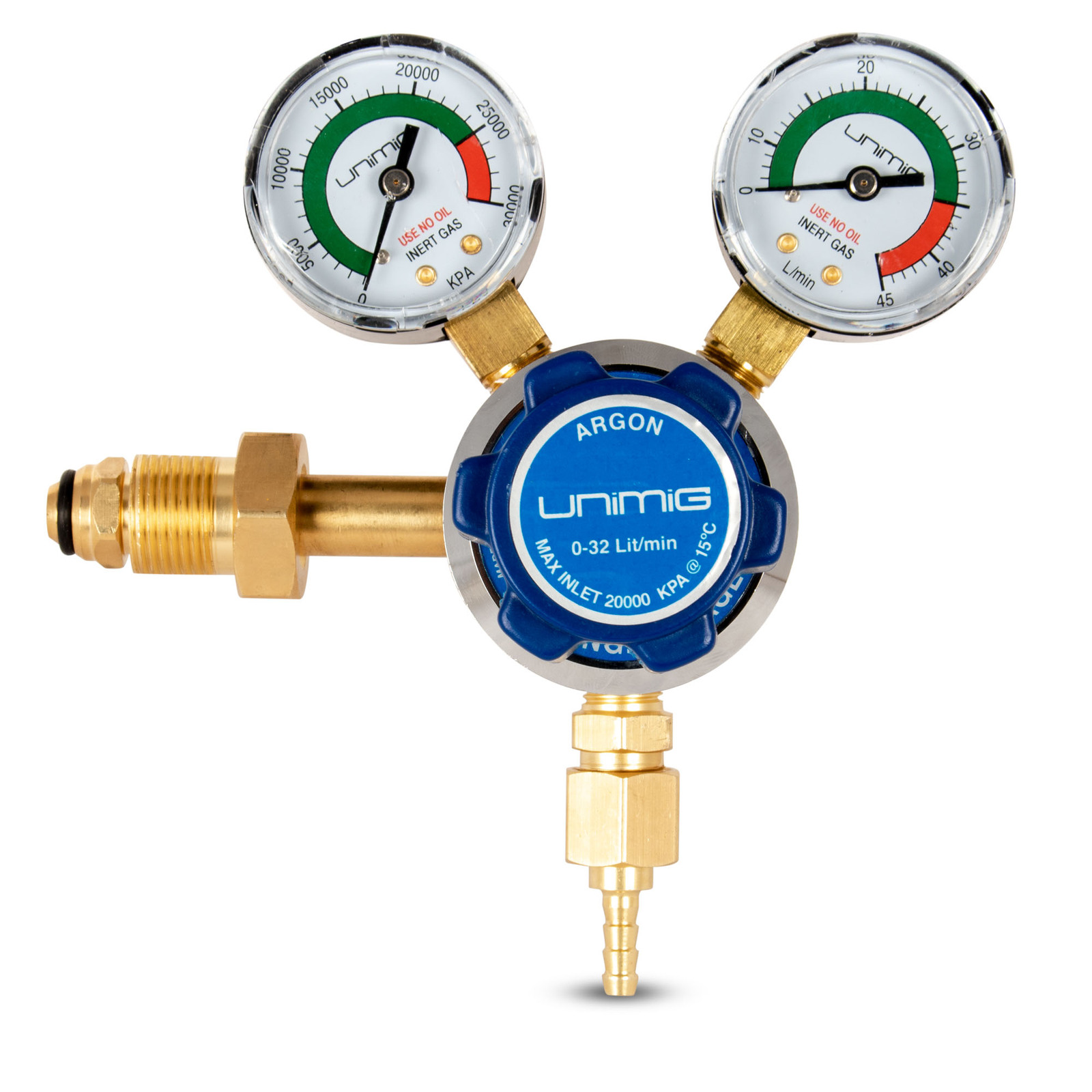

- Twin Gauge Argon Regulator
- 1.8m Gas Hose with fittings
- Operating Manual
- 0.8-0.9mm V Groove Roller
- 0.8-0.9mm F Groove Roller
- 1.0-1.2mm U Groove Roller
- TIG Torch 26V-4MCP50
- MIG Spool Gun 6 Meter - SAB2400
- Push Pull Gun
Spare part numbers:
- Contact tips = CTXX68 (Replace the XX with your wire size. ie: CT0968 is for 0.9mm wire)
- Tip Holders = TA24
- Nozzles NZCO24 (Conical Standard)
- NZCY24 (Cylindrical)
- NZTP24 (Tapered)
** Product comes with a nationally recognised 5-year warranty through any UNIMIG Dealer **
(U11010K)
SKU | U11010K |
Brand | UNIMIG |
Shipping Weight | 75.0000kg |
Shipping Width | 0.600m |
Shipping Height | 1.000m |
Shipping Length | 1.010m |
Shipping Cubic | 0.606000000m3 |
Unit Of Measure | ea |
** Product comes with a nationally recognised 5 Year warranty through any UNIMIG Dealer **
