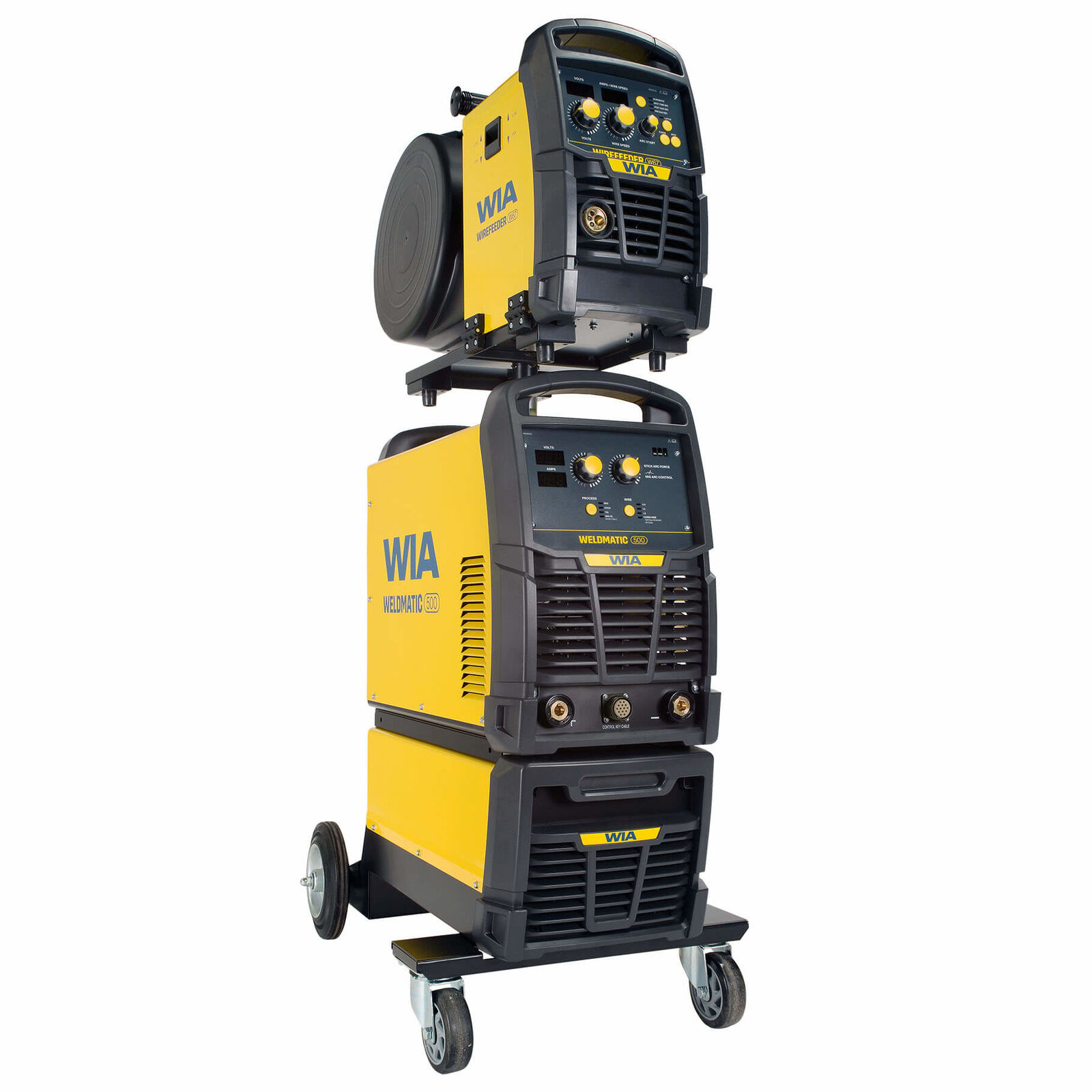

WIA Weldmatic 500SWF MIG Welder - CP145-1

The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG, and Stick welding, it offers optimal weld characteristics that provide high quality results. Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information.

Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.

*Please note: Due to the size of this item, the free delivery is to the Australian major cities metropolitan areas.  If you are outside of the metro area, we may contact you for a small additional freight charge*

Specifications

Machine Specification

Primary Voltage

380/415 VAC - 50/60Hz

Rated Primary Current

32 Amps

Max Primary Current

40 Amps

Recommended Generator Power

35 kVa

Supply Plug

32 Amp

Weldable Materials

Steel, Stainless Steel, Aluminium

Stick Specification

Current Range

25A/21V-500A/40V

Rated Output @ 40°C (10min)

500A/40V @ 60%
387A/35.5V @ 100%

MIG Specification

Output Range

30A/15.5V-500A/39V

Rated Output @ 40°C (10min)

500A/39V @ 60%
387A/33.4V @ 100%

Wire Size Range

0.6/0.8/0.9/1.2/1.6mm

Material Thickness Range

Welds up to 12mm+ steel plate, single pass

TIG Specification

Current Range

15A/10.6V-500A/30V

Rated Output @ 40°C (10min)

500A/30V @ 60%
387A/25.5V @ 100%

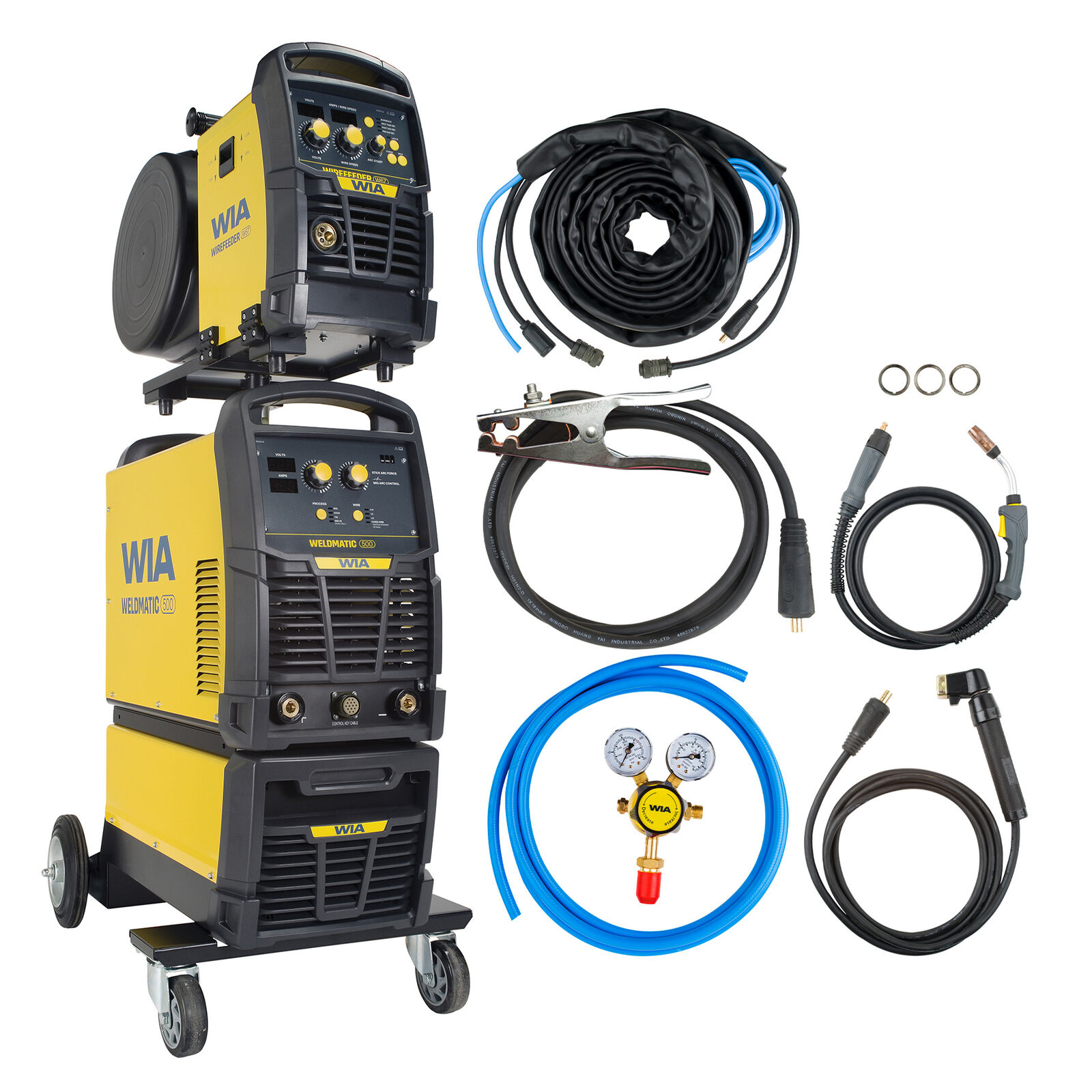

Package Includes

Euro Gun Cable

3.6m with Bernard Centerfire 0.9mm Tip

Work Lead

10m

Interconnecting Leads

10m

Industrial Twist Lock Electrode Holder

3m

Gas Regulator

Drive Rollers

0.9/1.2, 1.2/1.6mm V Groove & 0.9/1.2, 1.2/1.6mm Knurled

W67 4 Roll Drive Wire Feeder
